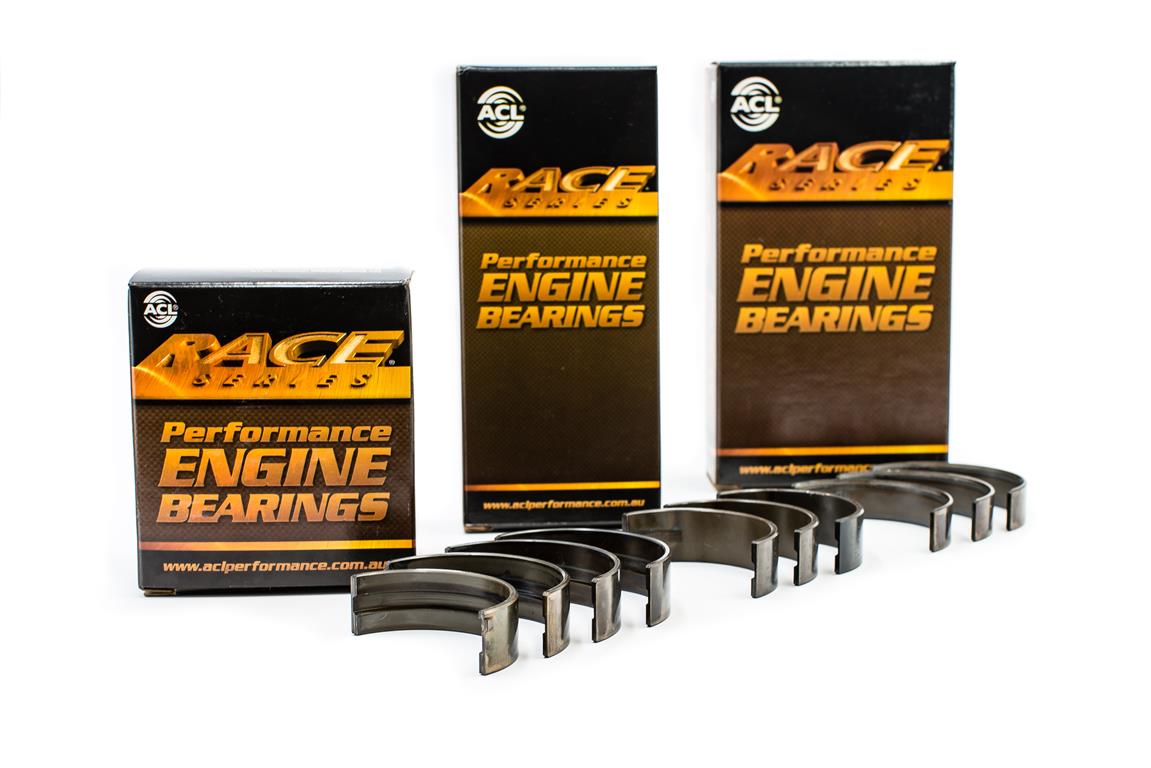

ACL Main Bearing Set (5M7909H-STD)

Vrhunski ACL Race Series ležajevi i komponente motora razvijeni za ekstremne uvjete u motosportu, utrkama i visokoperformansnim motorima. Pružaju iznimnu izdržljivost, preciznost zazora i otpornost na visoka opterećenja.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Primjena / Vozila: Renault/4 Box Body/MPV (R21_, R23_)/1.1/688 Series, Renault/Rodeo 5 (4D_, 5E_)/1.1/688 Series, Renault/4 (112_)/1.1/688 Series, Renault/5 (122_)/1.1/688 Series, Renault/5 Hatchback Van (238_)/1.1/688 Series, Renault/Estafette (213_)/1.1/688 Series, Renault/10 (119_)/1.1/688 Series, Renault/6 (118_)/1.1/688 Series, Renault/7 (124_)/1.1/688 Series, Renault/8 (113_)/1.1/688 Series, Renault/Rodeo 6 (ACL_)/1.1/688 Series, Renault/4 (112_)/1.0/C1C Series, Renault/Super 5 (B/C40_)/1.0/C1C Series, Renault/5 (122_)/1.4 Alpine A5/840 725, Renault/18 (134_)/1.4/847 Series, Renault/18 Variable (135_)/1.4/847 Series, Renault/5 (122_)/1.4/847 Series, Renault/Fuego (136_)/1.4/847 Series, Dacia/1310/1.4/847 Series, Dacia/Pick up/1.4/847 Series, Renault/19 I (B/C53_)/1.2/C1G Series, Renault/19 I Chamade (L53_)/1.2/C1G Series, Renault/19 II (B/C53_)/1.2/C1G Series, Renault/11 (B/C37_)/1.2/C1G Series, Renault/9 (L42_)/1.2/C1G Series, Renault/Super 5 (B/C40_)/1.2/C1G Series, Renault/11 (B/C37_)/1.4/C1J Series, Renault/9 (L42_)/1.4/C1J Series, Renault/11 Hatchback Van (S37_)/1.4/C1J Series, Renault/11 (B/C37_)/1.4 Turbo/C1J Series, Renault/9 (L42_)/1.4 Turbo/C1J Series, Renault/Super 5 (B/C40_)/1.4/C1J Series, Renault/Super 5 (B/C40_)/1.4 Turbo/C1J Series, Renault/12/1.4/C1J Series, Renault/12 Kombi/1.4/C1J Series, Renault/12 Toros/1.4/C1J Series, Renault/19 II (B/C53_)/1.4/C1J Series, Renault/19 II Chamade (L53_)/1.4/C1J Series, Renault/9 (L42_)/1.4/C2J Series, Renault/Super 5 (B/C40_)/1.4/C2J Series, Renault/12/1.6/C2L Series, Renault/18 Variable (135_)/1.6/C2L Series, Renault/19 II Chamade (L53_)/1.6/C2L Series, Renault/21 (B48_)/1.6/C2L Series, Renault/21 Sedan (L48_)/1.6/C2L Series, Renault/19 I (B/C53_)/1.4/C3J Series, Renault/19 I Chamade (L53_)/1.4/C3J Series, Renault/19 II (B/C53_)/1.4/C3J Series, Renault/19 II Chamade (L53_)/1.4/C3J Series, Renault/Super 5 (B/C40_)/1.4/C3J Series, Renault/5 (122_)/1.4 Alpine Turbo/C6J Series, Renault/11 (B/C37_)/1.1/C1E Series, Renault/19 I Chamade (L53_)/1.1/C1E Series, Renault/4 (112_)/1.1/C1E Series, Renault/5 (122_)/1.1/C1E Series, Renault/9 (L42_)/1.1/C1E Series, Renault/Clio I (B/C57_, 5/357_)/1.1/C1E Series, Renault/Super 5 (B/C40_)/1.1/C1E Series, Renault/Clio I (B/C57_, 5/357_)/1.2/C3G Series, Renault/Exprress pick-up/1.2/C3G Series, Renault/Twingo I (C06_)/1.2/C3G Series, Dacia/1300/1.3/810 Series, Dacia/1304 pick-up/1.3/810 Series, Dacia/1310/1.3/810 Series, Dacia/1325/1.3/810 Series, Renault/10 (119_)/1.3/810 Series, Renault/12 (117_)/1.3/810 Series, Renault/12 Variable (117, 133_)/1.3/810 Series, Renault/15 (130_)/1.3/810 Series, Renault/5 (122_)/1.3/810 Series, Volvo/66/1.1/B 10 E, Volvo/340-360 Saloon (344)/1.4/B 14 E, Volvo/340-360 (343, 345)/1.4/B 14 E, Volvo/343/1.4/B 14 E, Volvo/345/1.4/B 14 E
