Davies Craig Digital Thermatic® Twin Fan Switch with 1/4"" NPT Thermal Sensor Kit with 35mm Inline Adaptor

\n \n \n

\n

The Digital Thermatic^® Fan Switch GEN II is the next evolution of Davies Craig's proven fan controller. This specific kit comes complete with a ¼" NPT Thermal Sensor and a 35mm Inline Adapter, offering a quick and highly reliable way to install the sensor directly into your top radiator hose.

\n

Superseding the popular 0435 model, the GEN II can manage 1 or 2 fans with smarter features and a faster response. Fan #1 activates at your set temperature, while Fan #2 activates just 5 seconds later for improved cooling response. Both fans switch off once the temperature drops 5°C below the set point.

\n

Features & Versatility

\n

\n
• 35mm Inline Adapter: Fits neatly into your 35mm ID top radiator hose, allowing easy sensor fitment without modifying engine components. It features two ¼" NPT ports (bung included if only one port is needed).
\n
• Improved Display & Layout: Larger, clearer LED display with °C / °F units and all wiring relocated to the rear for a cleaner installation.
\n
• Advanced Override Control: Dual manual override wires allow for independent fan control with selectable signal polarity (positive or negative).
\n
• Enhanced Durability: Upgraded to an IP67 rating for superior dust and water protection.
\n
• Expanded Temp Range: Adjustable from 5°C to 110°C (41°F to 230°F).
\n
• 12V & 24V Compatible: 12V standard; simply swap to 24V relays (Part #10534, sold separately) for 24V systems.
\n

\n

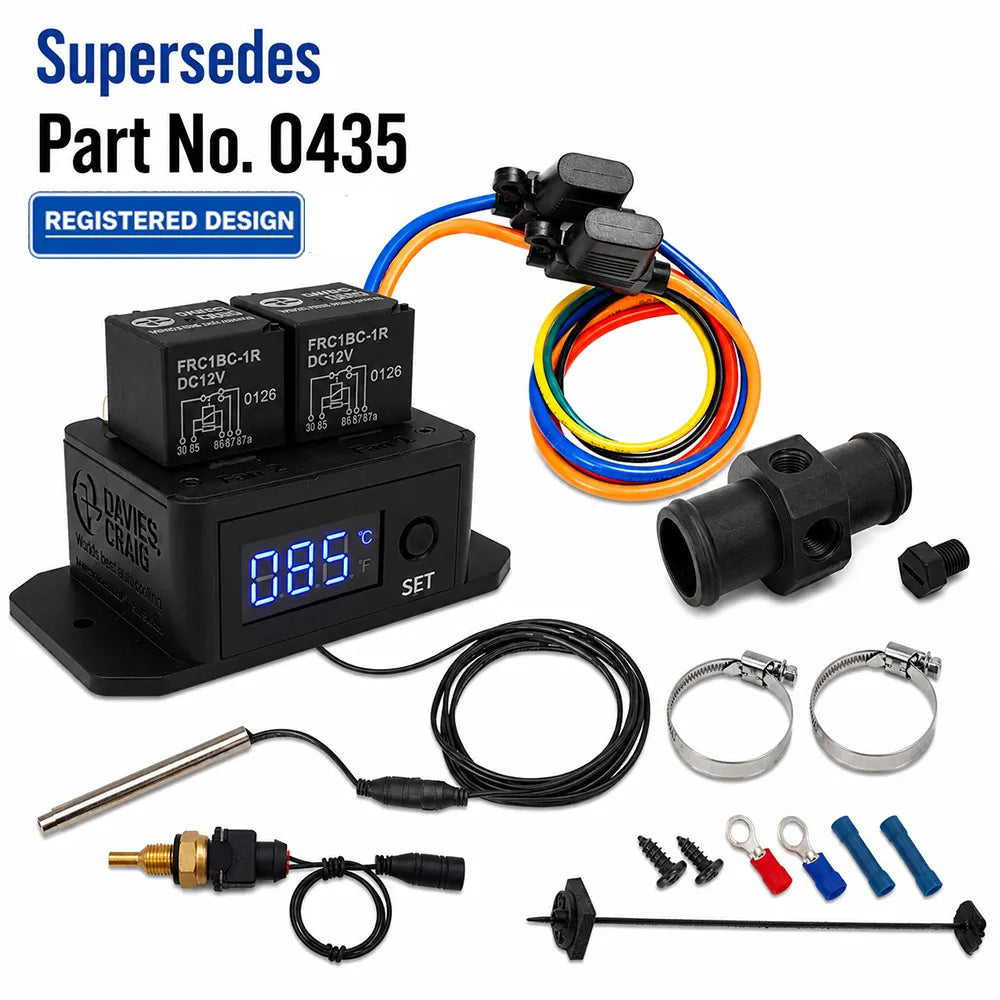

Kit contents (Part DC0485)

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Item / Description	Qty
Digital Thermatic® Fan Switch GEN II (IP67)	1
35mm Inline Adapter	1
¼" NPT Thermal Sensor Kit	1
Temperature Probe (Air/Fin Sensor)	1
Mounting Kit for Temperature Probe	1
Ring Terminals (Red & Blue) & Wire Joiners	4
Self Tap Screws & Instructions	3

\n

Installation Demonstration

\n \n

How to Install the Digital Thermatic^® Fan Switch GEN II.
