Davies Craig

DC8907

Davies Craig EWP80 Combo - Remote Electric Water Pump & Controller (12V)

Davies Craig EWP80 Combo - Remote Electric Water Pump & Controller (12V)

€397,61 EUR
€397,61 EUR
Sale Sold out
Taxes included.

EWP80 Combo - Remote Electric Water Pump & Controller (12V) (SKU: DC8907) osigurava precizno i automatsko upravljanje radom sustava hlađenja vašeg vozila. Kao nezaobilazan dio naprednog motorsport hlađenja, Davies Craig regulator održava stabilnu radnu temperaturu rashladne tekućine, produžuje vijek trajanja motora te jamči optimalan rad električnih ventilatora i crpki u svim uvjetima vožnje.

\n\n
\n
\n
\n EWP®80 Combo Remote Electric Water Pump & Controller (12V)\n
\n
\n ** SUPERSEDED / DISCONTINUED **\n
\n
\n Part #8907\n
\n
\n\n
\n

\n This part has been discontinued. Please see the replacement options below:\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Discontinued Part # Direct ReplacementAlternative Replacement
8105 (Pump Only) #8106#8109
8005 (Kit) #8006#8009
8907 (Controller Combo) #8908#8919
\n\n

\n The EWP®80 is available for purchase in following options:\n

\n
    \n
  • Pump Only (Part #8105)
    • \n
  • Kit (Part #8005)
    • \n
  • Combo with Controller (Part #8907)
    • \n
\n\n

\n Simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven mechanical water pump. It fits most vehicle engines up to two litres. By removing parasitic power losses, the EWP® can provide up to 10kW (13hp) of extra power and increased torque.\n

\n
\n
\n\n
\n

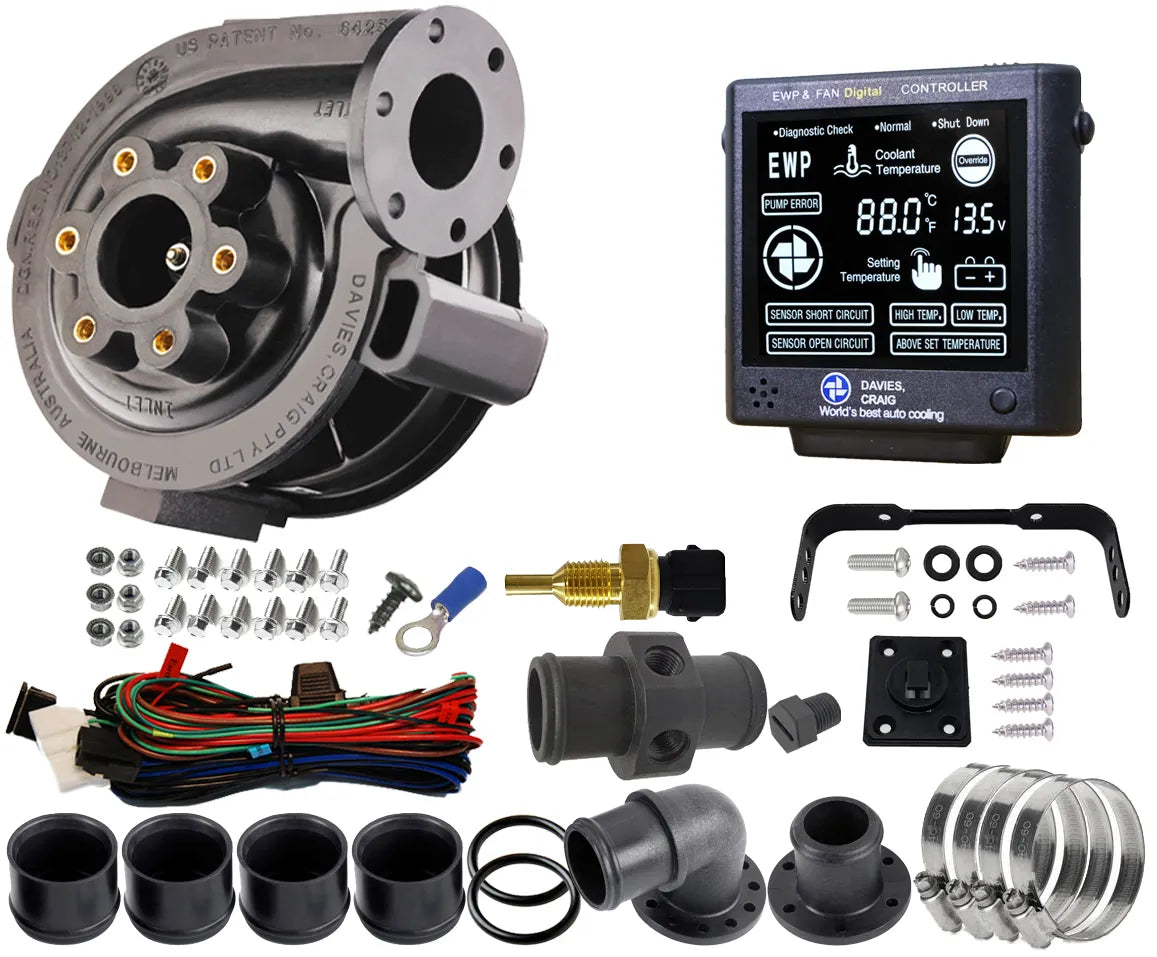

\n Combo contents\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Part descriptionUnits
EWP®80 - Nylon 12V Assembly 1
Nylon Flange Adapter: 35mm Straight 1
Nylon Flange Adapter: 35mm 90° Elbow 1
Adapter - Rubber Sleeve - 3mm {1/8"} 4
HOSE CLAMP (WD9 40-60 W2) 4
EWP ADAPTER O-RING 2
Wiring Harness - EWP & Fan controller 1
EWP®/Fan Digital controller 1
Adaptor - Nylon - In Line, 35mm (2 x 1/4" NPT) 1
1/4" NPT Nylon - Bung 1
U-Bracket & Mounting Plate (For #8002) 1
SCREW - SELF TAP 8X3/8 BZ 1
BLUE 6mm Ring Terminal 1
5x12 Flanged Hex Set Screw Zinc Silver 6
5x16 Flanged Hex Set Screw Zinc Silver 6
M5 FLANGE NUT ZINC SILVER 6
Sensor Thermal - coolant temp - ¼" NPT thread 1
\n
\n
\n\n
\n
\n Technical specifications\n
\n
\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
EWP80 NYLON PUMP
Operating voltage 3V DC to 15V DC
Maximum current 7.5A @ 13V
Flow rate (max) 90 L/min
Operating temp. -40° to 120°C
Pump design Clockwise centrifugal
Pump weight 900 grams (2.0 lb)
Pump material Nylon 66, 30% GF
Burst pressure 350 kPa (50 psi)
\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
LCD DIGITAL CONTROLLER
Voltage range 12V DC to 29V DC
Display LCD size 64.6mm x 55.6mm
Maximum current 12 Amps
Targeted temps 40°C to 110°C
Fan cut-in temp. +3°C above set
Overrun / Shutdown 3 mins or -10°C
Dimensions 98 x 95 x 25 mm
Weight 100 grams
\n
\n
\n
\n
\n\n
\n
\n Installation demonstration\n
\n
\n
\n \n
\n
\n
\n\n
\n
\n EWP® installation options\n
\n
\n
\n Installing an EWP® as an AUXILIARY PUMP\n
    \n
  • Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
    • \n
  • Remove the thermostat and drill two approx. 3mm holes in the thermostat plate.
    • \n
\n
\n
\n EWP® installation – disabling Mechanical water pump\n
    \n
  • Leaving mechanical water pump in place, install EWP into bottom hose and remove thermostat.
    • \n
  • Bypass water pump pulley by installing an appropriate length belt.
    • \n
\n
\n
\n Disengaged mechanical water pump (recommended)\n
    \n
  • Remove mechanical water pump and thermostat. Remove impeller from shaft.
    • \n
  • Retain pulley as idler. Block bypass passages and re-install.
    • \n
\n
\n
\n Removed mechanical water pump (Ideal)\n
    \n
  • Remove mechanical pump and thermostat from the engine.
    • \n
  • Install Davies Craig EWP® Header Adaptor or blanking plate.
    • \n
  • Install EWP® into the bottom radiator hose.
    • \n
\n
\n
\n
\n\n
\n \n PRODUCT SELECTION GUIDE (click to expand)\n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
PRODUCT SELECTION GUIDE
Electric Water Pump (EWP®)
 APPLICATION\n

 PUMP

\n

MODEL

\n 		PUMP ONLYPUMP KITPUMP COMBO
12V24V12V24V12V24V
 Engines up to 2.0L
(Standard) 		EWP®80 #8105 Nylon
#8106 Flange
#8109 Barb 		N/A #8005 Nylon
#8006 Flange
#8009 Barb 		N/A #8907 Nylon
#8908 Flange
#8919 Barb 		N/A
 Engines up to 2.0L - 3.5L
(Standard) 		EWP®115 #8125 Nylon
#8140 Alloy 		#8126 Nylon
#8141 Alloy 		#8025 Nylon
#8040 Alloy 		N/A #8930 Nylon
#8950 Alloy 		N/A
 Engines up to 3.5L - 5.0L
(Standard) 		EWP®140#8180 Alloy#8181 Alloy#8080 AlloyN/A#8990 AlloyN/A
Engines 5.0L or greater
 (Standard)

Modified Engines
Supercharged/Turbo,
Drag Racing, 4WD,
Off Road, Drifting & Speedway 		EWP®150 #8160 Sliver
#8165 Black  		#8161 Silver #8060 Silver
#8065 Black 		#8061 Silver #8970 Silver
#8975 Black 		#8971 Silver
Intercooler
(depending on capacity) 		EWP®115 #8125 Nylon
#8140 Alloy 		#8126 Nylon
#8141 Alloy 		#8025 Nylon
#8040 Alloy 		N/A #8930 Nylon
#8950 Alloy 		N/A
EWP®140#8180 Alloy#8181 Alloy#8080 AlloyN/A#8990 AlloyN/A
EWP®150 #8160 Sliver
#8165 Black  		#8161 Silver #8060 Silver
#8065 Black 		#8061 Silver #8970 Silver
#8975 Black 		#8971 Silver
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 1.85 kg
  • EAN / Barkod: 9311669089079

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
