Davies Craig

DC600

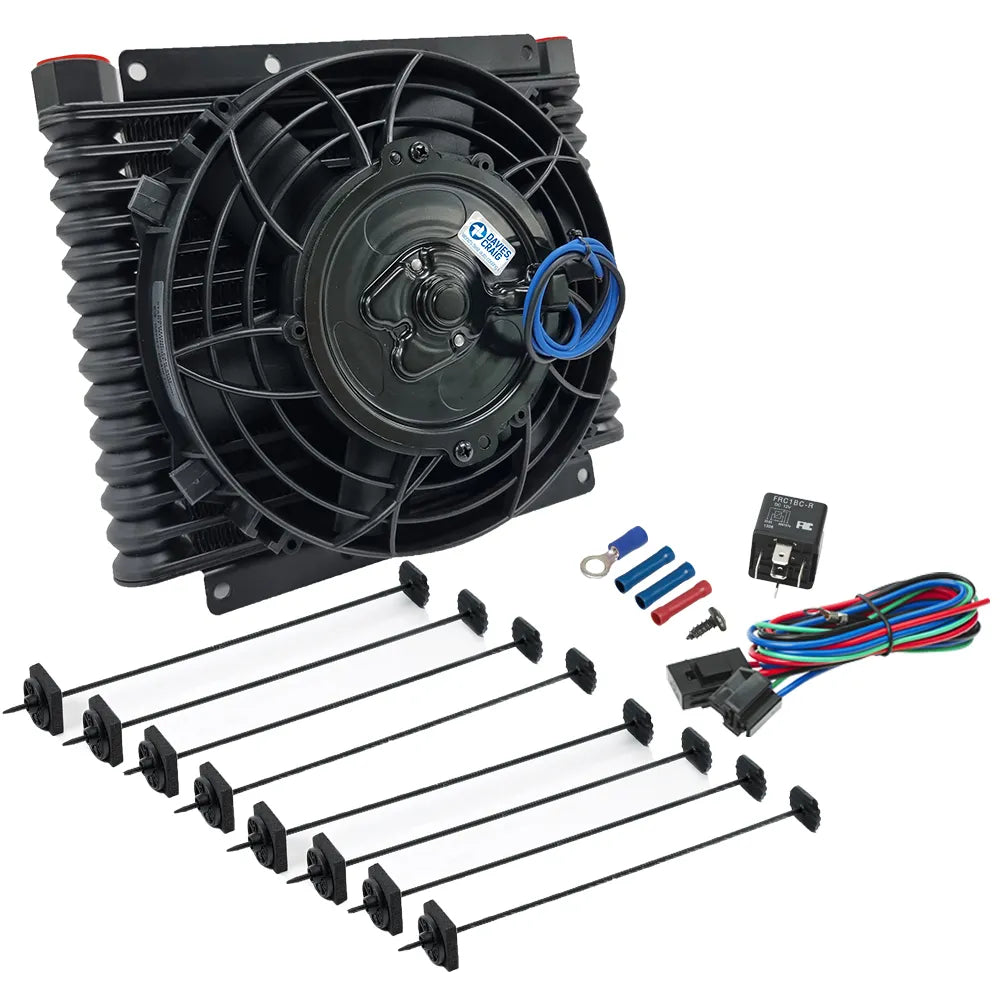

Davies Craig Universal Engine/Trans Oil Cooler (32mm) 14-Row AN10 & 8" Fan Combo (12V)

Davies Craig Universal Engine/Trans Oil Cooler (32mm) 14-Row AN10 & 8" Fan Combo (12V)

€371,25 EUR
€371,25 EUR
Sale Sold out
Taxes included.

Universal Engine/Trans Oil Cooler (32mm) 14-Row AN10 & 8" Fan Combo (12V) (SKU: DC600) vrhunski je električni ventilator renomiranog australskog proizvođača Davies Craig, dizajniran za maksimalnu učinkovitost hlađenja motora u najzahtjevnijim motorsport i tuning uvjetima. Iznimno lagan, aerodinamički optimiziran i izdržljiv, osigurava visoki protok zraka i pouzdan rad pod ekstremnim termičkim opterećenjima na stazi i cesti.

Universal Oil Cooler (32mm) 14-Row & 8" Fan Combo
Part DC600

Enhance your engine oil or automatic transmission cooling with this high-performance 32mm Universal Oil Cooler coupled with an 8” Thermatic® Electric Fan. This combo pack offers ultimate mounting flexibility, allowing you to direct airflow precisely where it's needed most.

The 14-row plate and fin design features internal turbulators for superior heat transfer, providing up to 75% more performance than comparable tube and fin designs. The compact size is perfect for tight spaces, ensuring your fluids stay at optimum operating temperatures even under heavy load.

Key Features
  • Superior Performance: 75% more efficient than standard tube and fin designs.
  • Versatile Fan: 8" reverse polarity fan can operate in either 'push' or 'pull' mode.
  • Reliability: 100% pressure tested at 150psi for maximum quality assurance.
  • Easy Install: Pre-drilled mounting plates and AN10 ORB inlet/outlet fittings.
  • Compact Design: Ideal for high-performance applications with limited mounting space.
Kit contents (Part DC600)
Item / Description Qty
Universal Oil Cooler (14 Row - AN10) 1
8” Thermatic® Electric Fan (12V) 1
Fan Wiring Harness & 12V Relay 1
Quick Fit Kit (Nylon ties x4) 2
Hardware Bag & Connectors 1
Installation Instructions 1
Optional Parts (Available Separately)
Part DC1008: AN10 ORB to 3/8" Push-on Hose Barb Fitting.
Part DC1010: Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose).

Tehničke Specifikacije

  • Težina: 2.09 kg
  • EAN / Barkod: 9311669060009
  • Broj ploča: 14
  • Debljina: 87.0 mm
  • Ukupna širina: 258.0 mm
  • Ukupna visina: 224.5 mm
  • Širina jezgre: 258.0 mm
  • Visina jezgre: 185.5 mm
  • Dimenzija ulaza/izlaza: AN10 ORB
  • Kapacitet hlađenja (BTU/HR): 21,000
  • Kapacitet fluida (ml): 500.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
