NUKE - FUEL TANK SAFETY VALVE

The AN8 rollover safety valve allows the fuel tank or fuel cell to maintain its status without pressure build-up or unwanted vacuum during use.

And it is equipped with roll-over protection if an accident would occur and the car would end up on its roof. Comes in three different sizes, all safe for petrol, ethanol and methanol. Used as standard on the Nuke Performance CFC Units. Comes with a Viton O-ring. Easy to clean, inspect and maintain with its simple two-piece design.

In case of an accident, the internal stainless steel ball seals and prevents fuel from leaking out of the fuel tank or fuel cell out into the ventilation line.

Min. mounting holes: 19mm
Max. mounting holes: 20mm
Max. material thickness: 6mm

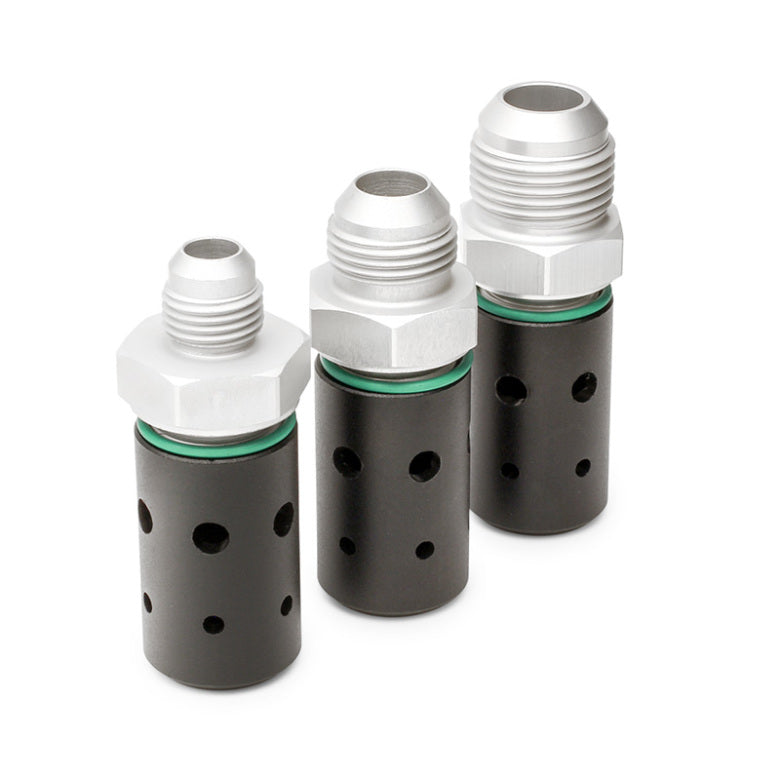

The Vent Safety Valves are available in AN-6, AN-8 and AN-10 male fittings. And the hole for assembly is preferred to be 3/4 UNF threaded, otherwise hole diameter of minimum 19mm and maximum 20mm. Can be mounted to materials from 1mm to 6mm thickness.

Choose between different sizes when placing order.

If you wish to change or complement the use of fittings of the highest quality, we recommend that you use our fittings which are designed to withstand high power and excessive wear and in the right combination with the products they were intended for.

Available in several sizes and varieties.

Quantity: 1pc
