Setrab
SKU:50-616-7612

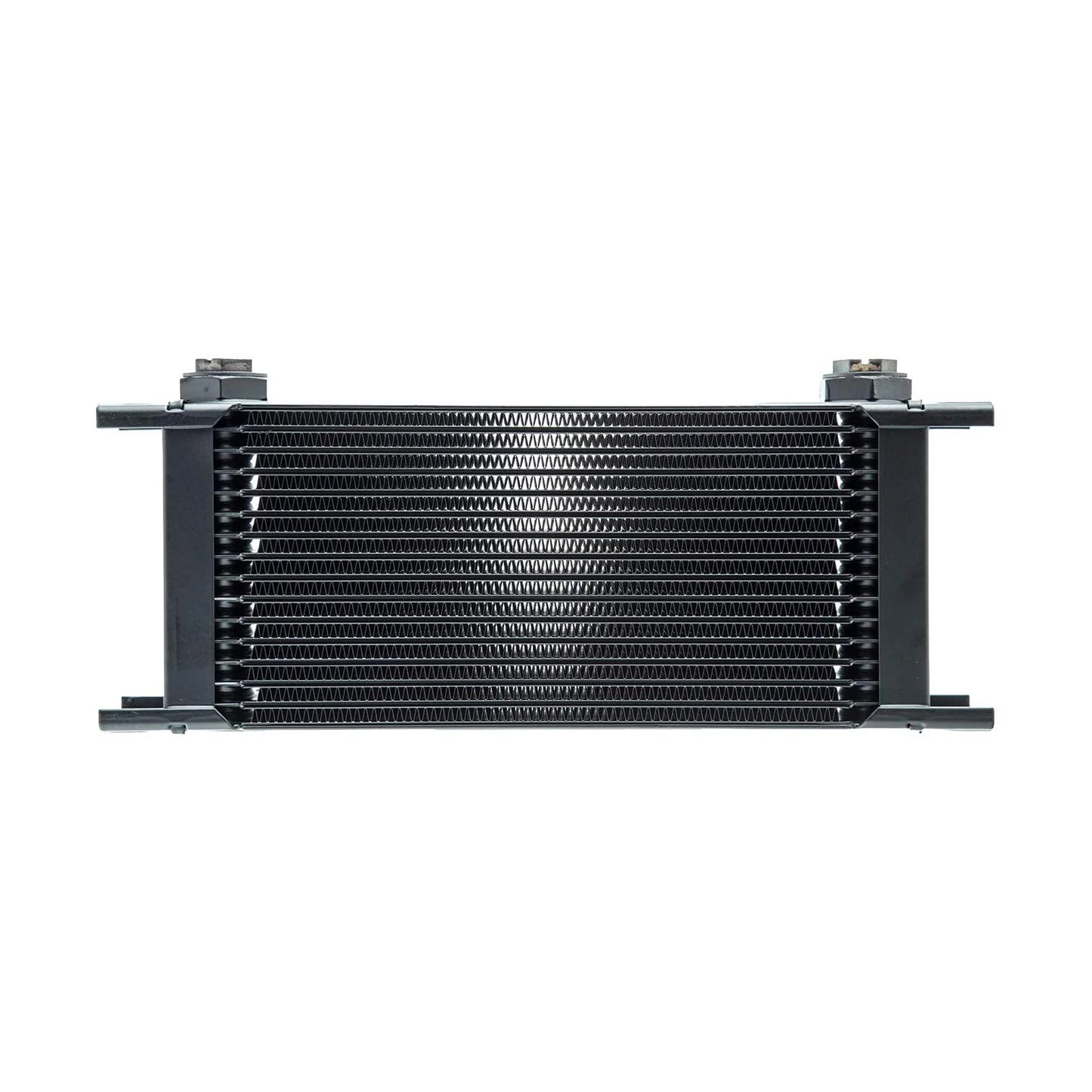

SETRAB - PROLINE - STD-616 - Oil Cooler
SETRAB - PROLINE - STD-616 - Oil Cooler
Regular price
€144,98 EUR
Regular price
€161,99 EUR
Sale price
€144,98 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Proline ST3-616
HEIGHT: 123MM
WIDTH: 330MM
DEPTH: 50MM
ACCEPTANCE: M22
| Working pressure | 0-10 bar dynamic |
| Pressure pulsation endurance | At least 2x10 5 pulsations @ 0-10 bar, 2 Hz, 60 °C oil temp |
| Max pressure | 12 bar (1x10 4 pulsations |
| Burst pressure | 37 bars |
| Pressure test | Minimum 10 bar |
| Leak test | 10 bar @ 3cc/min |
| Working temperature | -40 to 150 °C (Temperatures above 120 °C pressure pulsations has to be evaluated) |
| Corrosion endurance | 20 days according to SWAAT G 85-94 A3 (painted cooler) |
| Inner cleanliness | ISO 4406 16/14 (alternative available upon request) |
| General dimensional tolerances | ISO 2768-v |
| Material | Aluminum |
| Max connection tightening torque | 40 Nm (alternatives available upon request) |
| Other | Allowed Media: Oil; water containing min. 40% glycol or corrosion inhibitors. |
