Walbro 535 - BP KIT

ORIGINAL WALBRO! DELIVERY IMMEDIATELY!

BP KIT specially designed for the most demanding applications

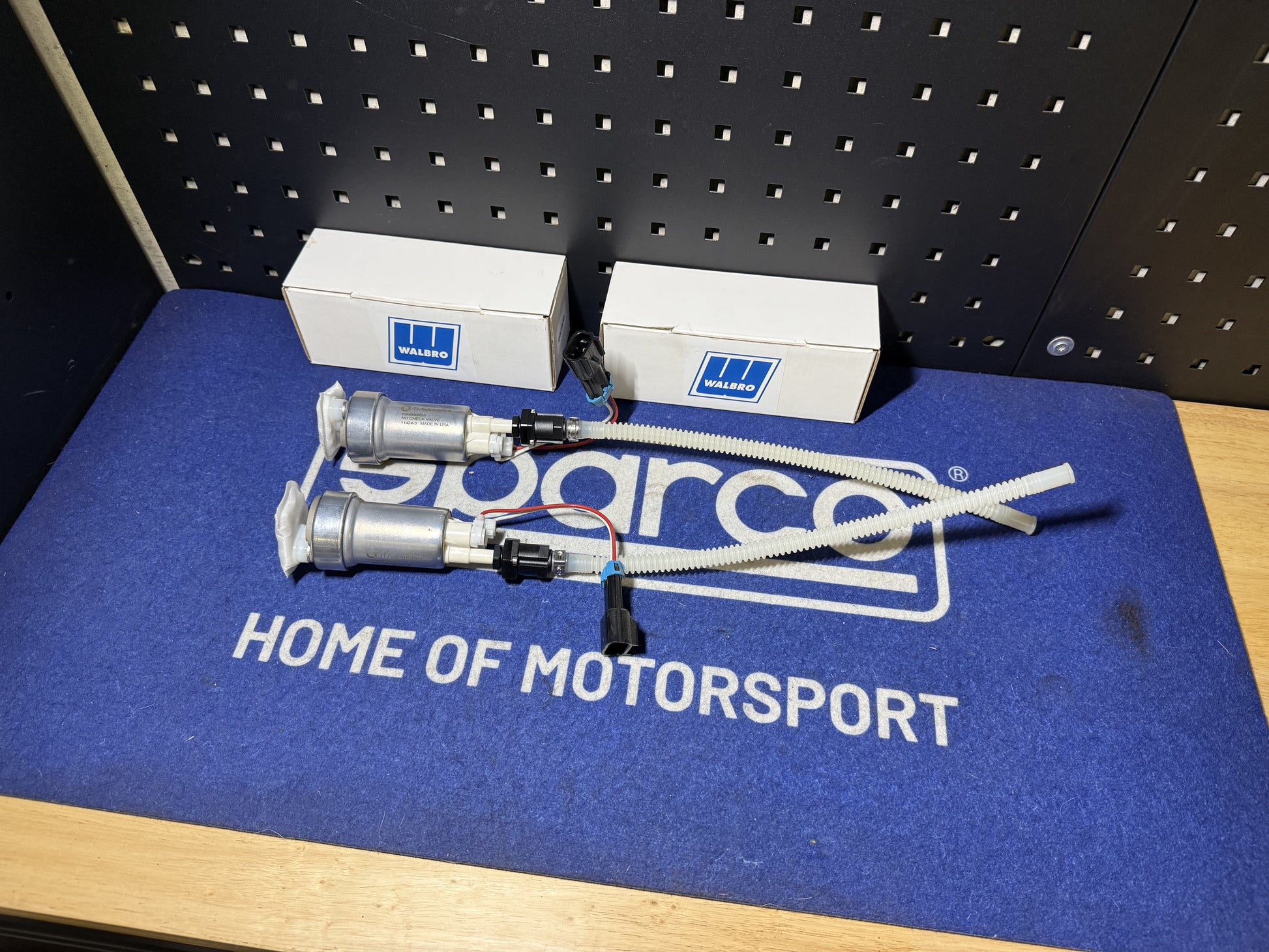

The kit consists of:

1. WALBRO 535 pump
2. Radium check valve
3. Filter before pump
4. PA hose 300mm
5. 2x Stainless steel clamp

The kit comes assembled and ready to install in your vehicle.

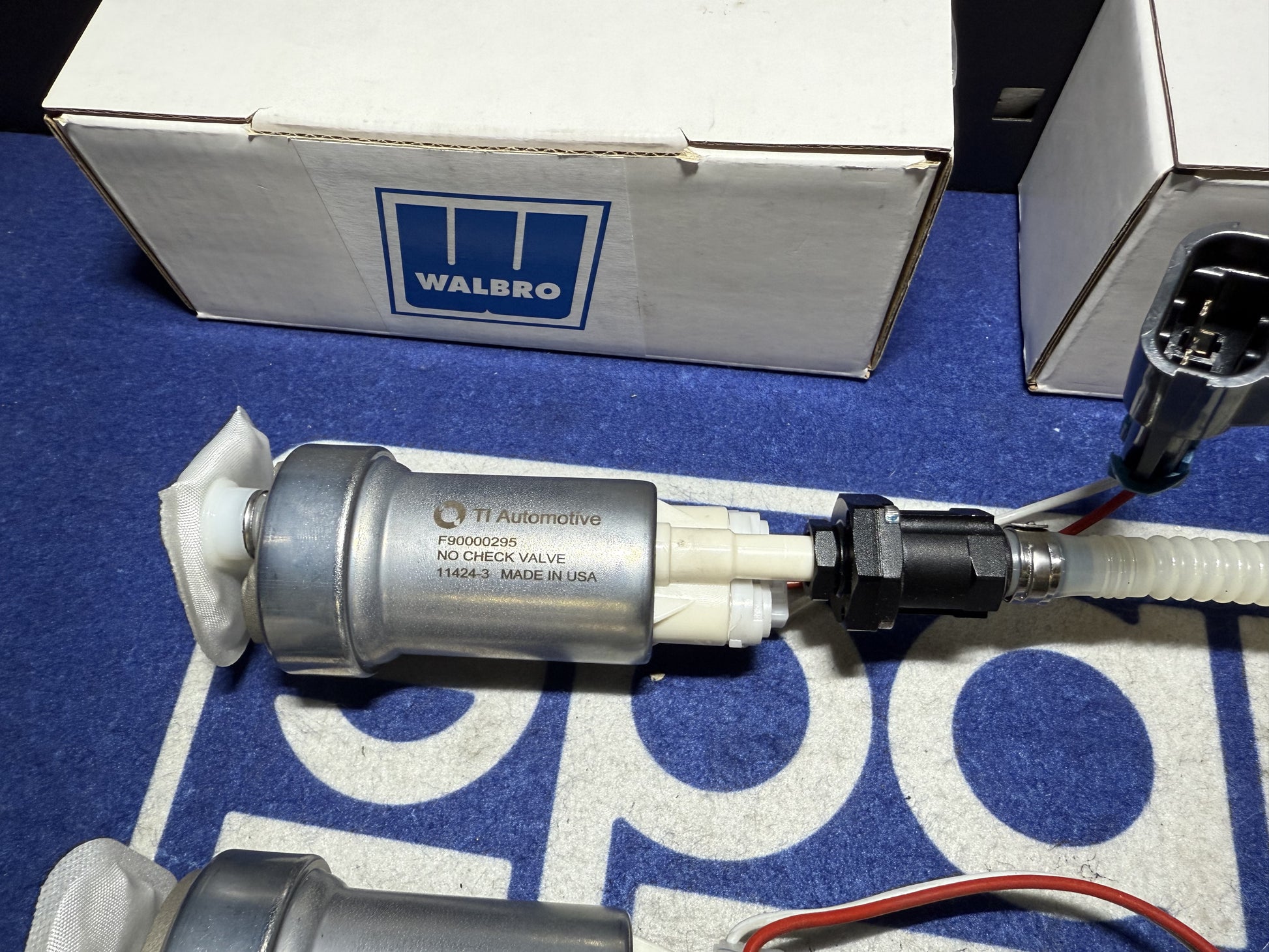

Walbro 535LPH - TI Automotive TCD495 Fuel Pump
Highest flow in-tank brushed fuel pump from TI Automotive

Walbro Part Number: F90000295 Hellcat Plus
Horsepower: 985HP+ at 60PSI, naturally aspirated applications
Horsepower: 900HP+ at 90PSI, naturally aspirated applications
Flow Rate: 490LPH @ 40psi (130 gph)
Fuel: GAS & E85
Without Internal Check Valve
Caution: Extremely High Counterfeit Rate - Buy from an Authorized Dealer Only

New DCSS 39/50 High-Performance Pump – F90000295:
- Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro
- No Internal check valve - ideal for racing applications to build oil pressure prior to start-up
- Featuring award-winning DCSS technology
- E85 compatible
- High-pressure relief setting - supports supercharger and turbo applications
- Capable of supporting 900+HP at 60PSI naturally aspirated applications
- Complete Pump and kit combination – TCD495

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 535LPH at 40psi
Test Voltage: 13.5 Volts

Note: Pump does NOT have a check valve

NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
