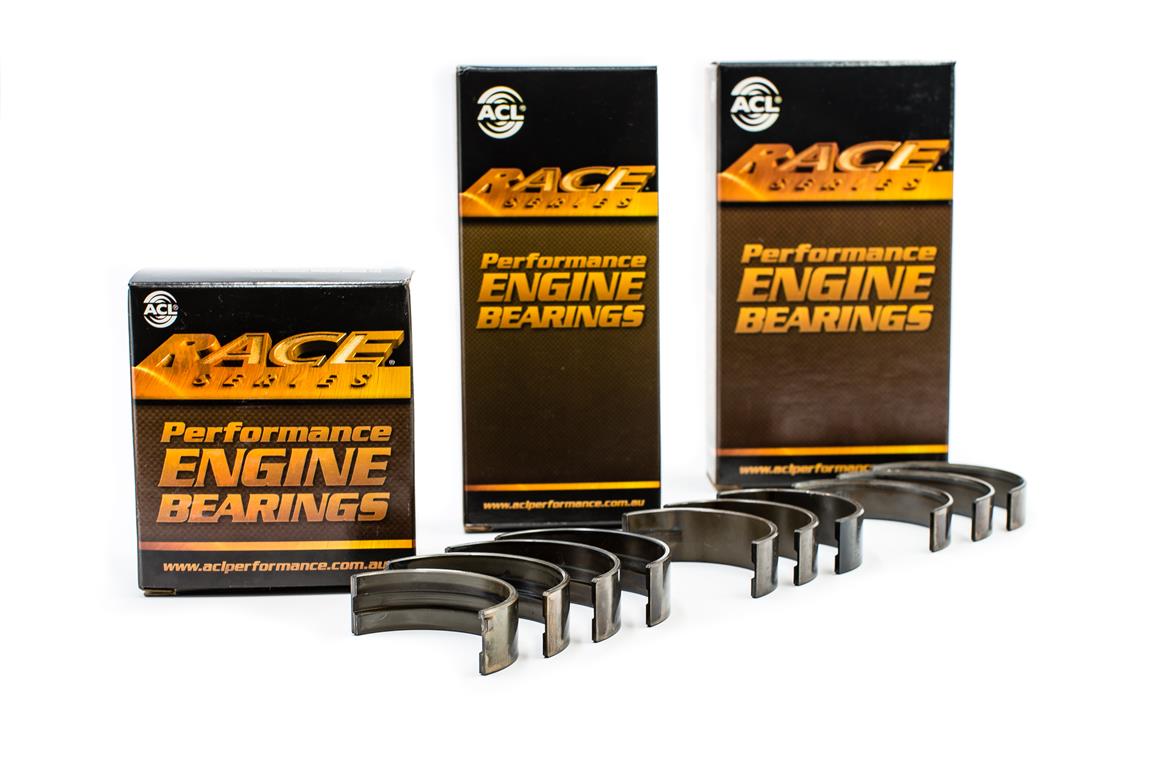

ACL Main bearing set (ACL Race Series) (5M1695H-.025)

Vrhunski ACL Race Series ležajevi i komponente motora razvijeni za ekstremne uvjete u motosportu, utrkama i visokoperformansnim motorima. Pružaju iznimnu izdržljivost, preciznost zazora i otpornost na visoka opterećenja.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Primjena / Vozila: Toyota/Corolla coupe (AE86)/1.6 16V/4A-GEC, Toyota/Sprinter Coupe/1.6 GTi/4A-GEC, Toyota/Corolla (_E8_)/1.6 16V/4A-GEC, Toyota/Corolla Liftback (_E8_)/1.6 16V/4A-GEC, Toyota/Sprinter Liftback/1.6 GTi/4A-GEC, Toyota/Celica liftback (_T16_)/1.6 GT/4A-GELC, Toyota/Corolla FX Compact (E8B)/1.6 16V/4A-GELC, Toyota/Corolla Liftback (_E8_)/1.6 16V/4A-GELC, Toyota/MR2 I (AW1_)/1.6 16V/4A-GELC, Toyota/Corolla (_E8_)/1.3 8V/2A-LC, Toyota/Tercel (L10)/1.3 8V/2A-LC, Toyota/Tercel (L20)/1.3 8V/2A-LC, Toyota/Carina V (_T17_)/1.6 16V/4A-F, Toyota/Carina V Kombi (_T17_)/1.6 16V/4A-F, Toyota/Carina V Sedan (_T17_)/1.6 16V/4A-F, Toyota/Conquest Liftback (E90)/1.6 16V/4A-F, Toyota/Corolla (_E9_)/1.6 16V/4A-F, Toyota/Corolla (_E9_)/1.6 16V 4WD/4A-F, Toyota/Corolla Compact (_E9_)/1.6 16V/4A-F, Toyota/Corolla Compact (_E9_)/1.6 16V 4WD/4A-F, Toyota/Corolla Coupe (_E9_)/1.6 16V/4A-F, Toyota/Corolla Liftback (_E9_)/1.6 16V/4A-F, Toyota/Corolla Liftback (_E9_)/1.6 16V 4WD/4A-F, Toyota/Corolla Station Wagon (_E9_)/1.6 16V/4A-F, Toyota/Corolla Station Wagon (_E9_)/1.6 16V 4WD/4A-F, Toyota/Corona Kombi (_T17_)/1.6 16V/4A-F, Toyota/Corona Liftback (_T17_)/1.6 16V/4A-F, Toyota/Corona Sedan (_T17_)/1.6 16V/4A-F, Toyota/Sprinter Carib Kombi (_E9_)/1.6 16V 4WD/4A-F, Toyota/Sprinter Sedan (_E9_)/1.6 16V 4WD/4A-F, Toyota/Corolla (_E10_)/1.6 16V/4A-F, Toyota/Corolla (_E10_)/1.6 16V/4A-FE, Toyota/Sprinter Carib Kombi (_E9_)/1.6 16V 4WD/4A-FE, Holden/Nova Liftback (LF)/1.6 16V/4A-FE, Holden/Nova Liftback (LG)/1.6 16V/4A-FE, Holden/Nova Liftback Sedan (LF)/1.6 16V/4A-FE, Holden/Nova Liftback Sedan (LG)/1.6 16V/4A-FE, Toyota/Avensis (_T22_)/1.6 16V/4A-FE, Toyota/Avensis Kombi (_T22_)/1.6 16V/4A-FE, Toyota/Avensis Liftback (_T22_)/1.6 16V/4A-FE, Toyota/Caldina Kombi (_T19_)/1.6 16V/4A-FE, Toyota/Carina E VI (_T19_)/1.6 16V/4A-FE, Toyota/Carina E VI Sedan (_T19_)/1.6 16V/4A-FE, Toyota/Carina E VI Sportswagon (_T19_)/1.6 16V/4A-FE, Toyota/Carina V (_T17_)/1.6 16V/4A-FE, Toyota/Carina V (_T17_)/1.6 16V 4WD/4A-FE, Toyota/Carina V Kombi (_T17_)/1.6 16V/4A-FE, Toyota/Carina V Sedan (_T17_)/1.6 16V/4A-FE, Toyota/Carina V Sedan (_T17_)/1.6 16V 4WD/4A-FE, Toyota/Celica Coupe (_T18_)/1.6 16V/4A-FE, Toyota/Conquest Liftback (E90)/1.6 16V/4A-FE, Toyota/Corolla (_E11_)/1.6 16V/4A-FE, Toyota/Corolla (_E11_)/1.6 16V 4WD/4A-FE, Toyota/Corolla (_E9_)/1.6 16V/4A-FE, Toyota/Corolla (_E9_)/1.6 16V 4WD/4A-FE, Toyota/Corolla Compact (_E10_)/1.6 16V/4A-FE, Toyota/Corolla Compact (_E11_)/1.6 16V/4A-FE, Toyota/Corolla Compact (_E9_)/1.6 16V/4A-FE, Toyota/Corolla Coupe (_E9_)/1.6 16V/4A-FE, Toyota/Corolla Kombi (_E10_)/1.6 16V/4A-FE, Toyota/Corolla Kombi (_E10_)/1.6 16V 4WD/4A-FE, Toyota/Corolla Kombi (_E11_)/1.6 16V/4A-FE, Toyota/Corolla Levin Coupe (_E10_)/1.6 GT/4A-FE, Toyota/Corolla Liftback (_E10_)/1.6 16V/4A-FE, Toyota/Corolla Liftback (_E11_)/1.6 16V/4A-FE, Toyota/Corolla Liftback (_E9_)/1.6 16V/4A-FE, Toyota/Corolla Station Wagon (_E9_)/1.6 16V 4WD/4A-FE, Toyota/Corolla Station Wagon (_E9_)/1.6 16V/4A-FE, Toyota/Corolla Verso (_E11_)/1.6 16V/4A-FE, Toyota/Corona Kombi (_T19_)/1.6 16V/4A-FE, Toyota/Corona Liftback (_T17_)/1.6 16V/4A-FE, Toyota/Corona Liftback (_T19_)/1.6 16V/4A-FE, Toyota/Corona Sedan (_T17_)/1.6 16V/4A-FE, Toyota/Corona Sedan (_T17_)/1.6 16V 4WD/4A-FE, Toyota/Corona Sedan (_T19_)/1.6 16V/4A-FE, Toyota/Corona Sedan (_T21_)/1.6 16V/4A-FE, Toyota/Sprinter Carib Kombi (_E11_)/1.6 16V/4A-FE, Toyota/Sprinter Carib Kombi (_E11_)/1.6 16V 4WD/4A-FE, Toyota/Sprinter Cielo Liftback (_E1_)/1.6 16V/4A-FE, Toyota/Sprinter Sedan (_E1_)/1.6 16V/4A-FE, Toyota/Sprinter Sedan (_E1_)/1.6 16V 4WD/4A-FE, Toyota/Sprinter Sedan (_E9_)/1.6 16V/4A-FE, Toyota/Sprinter Sedan (_E9_)/1.6 16V 4WD/4A-FE, Toyota/Tazz (E9_)/1.6 16V/4A-FE, Chevrolet/Nova Liftback/1.6 8V/4A-LC, Chevrolet/Nova Sedan/1.6 8V/4A-LC, Toyota/Carina IV (_T15_)/1.6 8V/4A-LC, Toyota/Carina IV Sedan (_T15_)/1.6 8V/4A-LC, Toyota/Corolla (_E8_)/1.6 8V/4A-LC, Toyota/Corolla FX Compact (E8B)/1.6 8V/4A-LC, Toyota/Corolla Liftback (_E8_)/1.6 8V/4A-LC, Toyota/Sprinter Coupe/1.6 8V/4A-LC, Toyota/Sprinter Liftback/1.6 8V/4A-LC, Toyota/Carina V Sedan (_T17_)/1.5 16V/5A-F, Toyota/Corolla Compact (_E9_)/1.5 16V/5A-F, Toyota/Corona Sedan (_T17_)/1.5 16V/5A-F, Toyota/Sprinter Sedan (_E9_)/1.5 16V/5A-F, Toyota/Corolla (_E9_)/1.5 16V/5A-F, Toyota/Corolla (_E9_)/1.5 16V/5A-FE, Toyota/Carina E VI Sedan (_T19_)/1.5 16V/5A-FE, Toyota/Carina V Kombi (_T17_)/1.5 16V/5A-FE, Toyota/Carina V Sedan (_T17_)/1.5 16V/5A-FE, Toyota/Carina VII Sedan (_T21_)/1.5 16V/5A-FE, Toyota/Corolla (_E10_)/1.5 16V/5A-FE, Toyota/Corolla (_E11_)/1.5 16V/5A-FE, Toyota/Corolla (_E9_)/1.5 16V 4WD/5A-FE, Toyota/Corolla Compact (_E9_)/1.5 16V/5A-FE, Toyota/Corolla Kombi (_E10_)/1.5 16V/5A-FE, Toyota/Corolla Levin Coupe (_E10_)/1.5 16V/5A-FE, Toyota/Corolla Levin Coupe (_E11_)/1.5 16V/5A-FE, Toyota/Corolla Levin Coupe (_E9_)/1.5 16V/5A-FE, Toyota/Corolla Liftback (_E9_)/1.5 16V/5A-FE, Toyota/Corona Sedan (_T17_)/1.5 16V/5A-FE, Toyota/Sprinter Cielo Liftback (_E1_)/1.5 16V/5A-FE, Toyota/Sprinter Sedan (_E1_)/1.5 16V/5A-FE, Toyota/Sprinter Sedan (_E9_)/1.5 16V/5A-FE, Holden/Nova Liftback (LE)/1.4 16V/6A-FC, Holden/Nova Liftback (LF)/1.4 16V/6A-FC, Toyota/Corolla (_E9_)/1.4 16V/6A-FC, Toyota/Corolla Liftback (_E9_)/1.4 16V/6A-FC, Toyota/Carina VII Sedan (_T21_)/1.6 20V/4A-GE (20V), Toyota/Corolla (_E10_)/1.6 20V/4A-GE (20V), Toyota/Corolla (_E11_)/1.6 20V/4A-GE (20V), Toyota/Corolla (_E9_)/1.6 20V/4A-GE (20V), Toyota/Corolla Levin Coupe (_E11_)/1.6 20V/4A-GE (20V), Toyota/Corolla Liftback (_E9_)/1.6 20V/4A-GE (20V), Toyota/Sprinter Sedan (_E1_)/1.6 20V/4A-GE (20V), Toyota/Carina V Sedan (_T17_)/1.6 16V/4A-GE, Toyota/Carina VII Sedan (_T21_)/1.6 16V/4A-GE, Toyota/Celica (_A6_)/1.6 16V/4A-GE, Toyota/Celica Coupe (_A6_)/1.6 16V/4A-GE, Toyota/Corolla (_E9_)/1.6 16V/4A-GE, Toyota/Corolla Compact (_E9_)/1.6 16V/4A-GE, Toyota/Corolla Coupe (_E9_)/1.6 16V/4A-GE, Toyota/Corolla Coupe (AE86)/1.6 GTi Twin Cam (AE86)/4A-GE, Toyota/Corolla Kombi (_E10_)/1.6 16V/4A-GE, Toyota/Corolla Levin Coupe (_E10_)/1.6 16V/4A-GE, Toyota/Corolla Levin Coupe (_E9_)/1.6 16V/4A-GE, Toyota/Corolla Liftback (_E9_)/1.6 GTI/4A-GE, Toyota/Sprinter Liftback/1.6 GTI/4A-GE, Toyota/Corolla Levin Coupe (_E10_)/1.6 Supercharged/4A-GZE, Toyota/MR2 I (AW1_)/1.6 Supercharged/4A-GZE, Toyota/Caribe/1.3 8V/2A, Toyota/Corolla (_E8_)/1.3 8V/2A, Toyota/Corolla Liftback (_L2_)/1.3 8V/2A, Toyota/Tercel (_L1_, _L2_)/1.3 8V/2A, Toyota/Caribe Kombi/1.5 8V/3A (Toyota), Toyota/Tercel (AL2_)/1.5 8V/3A (Toyota), Toyota/Tercel (_L1_, _L2_)/1.5 8V/3A-C, Toyota/Tercel (AL2_)/1.5 8V/3A-C, Toyota/Sprinter Liftback/1.5 8V/3A-U, Toyota/Corolla Coupe (AE86)/1.5 8V/3A-U, Toyota/Corolla II Liftback (_L2_)/1.5 8V/3A-U, Toyota/Sprinter Carib Kombi (AL25G)/1.5 8V/3A-U, Toyota/Tercel (AL2_)/1.5 8V/3A-U, Toyota/Tercel (AL1_, AL2_)/1.5 8V/3A-U, Toyota/Corolla (_E7_)/1.6 8V/4A-C, Toyota/Corolla Coupe (AE86)/1.6 8V/4A-C, Toyota/Corolla FX Compact (E8B)/1.6 8V/4A-C, Toyota/Corolla Liftback (_E8_)/1.6 8V/4A-C, Holden/Nova (LF)/1.8 16V/7A-FE, Holden/Nova (LG)/1.8 16V/7A-FE, Toyota/Ascent/1.8 16V/7A-FE, Toyota/Avensis (_T22_)/1.8 16V/7A-FE, Toyota/Caldina Kombi (_T19_)/1.8 16V/7A-FE, Toyota/Caldina Kombi (_T21_)/1.8 16V/7A-FE, Toyota/Carina E VI (_T19_)/1.8 16V/7A-FE, Toyota/Carina VII (_T21_)/1.8 16V/7A-FE, Toyota/Celica Coupe (_T20_)/1.8 16V/7A-FE, Toyota/Chaser (_X9_)/1.8 16V/7A-FE, Toyota/Corolla (_E10_)/1.8 16V/7A-FE, Toyota/Corolla (_E11_)/1.8 16V/7A-FE, Toyota/Corolla (_E9_)/1.8 16V/7A-FE, Toyota/Corona (_T19_)/1.8 16V/7A-FE, Toyota/Corona (_T21_)/1.8 16V/7A-FE, Toyota/Sprinter (_E1_)/1.8 16V/7A-FE
