1 4

Davies Craig

DC0166

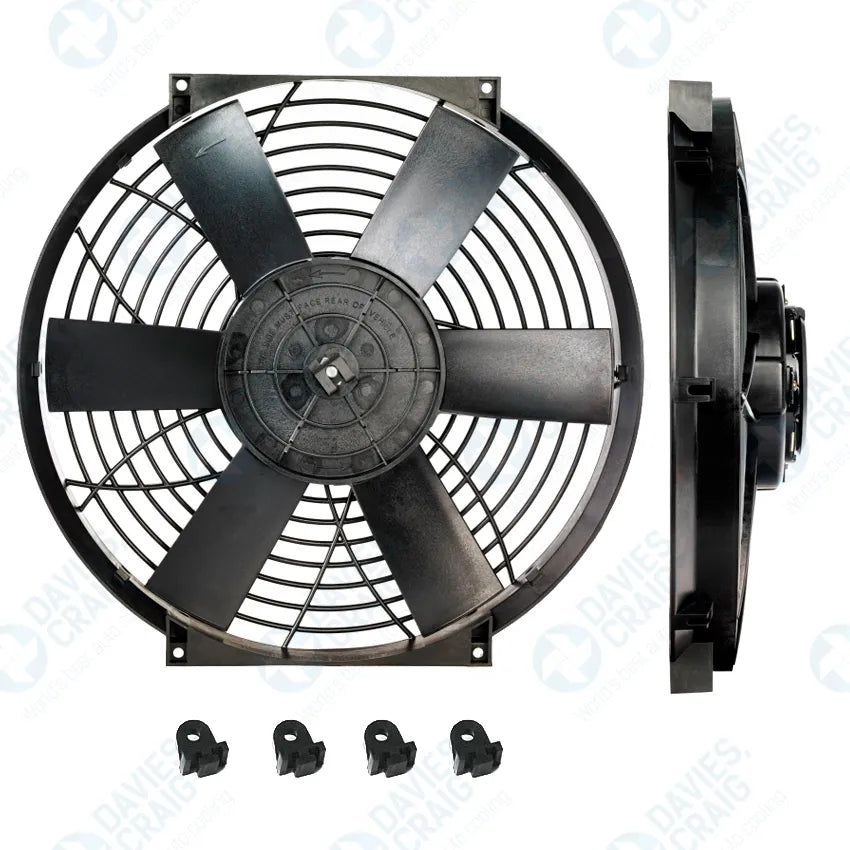

Davies Craig 16" Thermatic® Electric Fan (12V)

Davies Craig 16" Thermatic® Electric Fan (12V)

€164,59 EUR
€164,59 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

16" Thermatic® Electric Fan (12V) (SKU: DC0166) vrhunski je električni ventilator renomiranog australskog proizvođača Davies Craig, dizajniran za maksimalnu učinkovitost hlađenja motora u najzahtjevnijim motorsport i tuning uvjetima. Iznimno lagan, aerodinamički optimiziran i izdržljiv, osigurava visoki protok zraka i pouzdan rad pod ekstremnim termičkim opterećenjima na stazi i cesti.

\n\n
\n
\n
\n 16" THERMATIC® ELECTRIC FAN (12V)\n
\n
\n Part DC0166\n
\n
\n\n
\n

\n All Davies Craig Thermatic® Fans are packaged with fan assembly (motor, fan blade, shroud and mounting feet). Suitable for use as:\n

\n\n
\n
  Radiator cooling fans
\n
  Air conditioner condenser fans
\n
  Transmission and engine oil cooler fans
\n
\n\n

\n Provides constant or variable air flow, increased fuel economy, and improved A/C performance. Features low profile design and fully reversible blades/polarity for bi-directional air flow.\n

\n\n

\n Set up for UPSTREAM / PUSHER applications from the factory.\n

\n
\n
\n\n
\n
\n Technical data & Contents\n
\n\n
\n
\n
\n \n \n \n \n \n \n \n \n \n \n
SPECIFICATIONS
Airflow 2120 CFM
Max Current 19.0A (12V)
Weight 3.0 kg (6.6 lb)

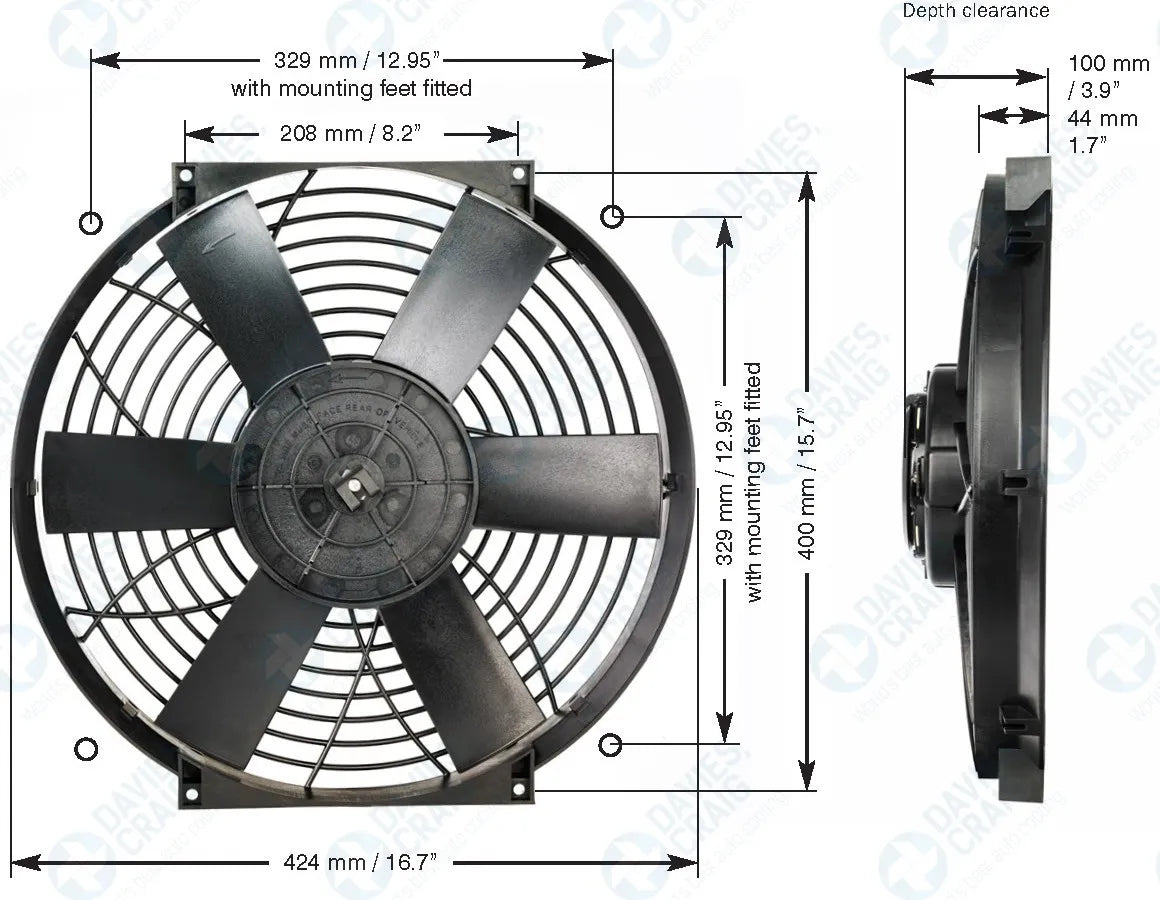

Dimensions 400h x 424w x 97d mm
\n
\n\n
\n \n \n \n \n \n \n \n \n \n
COMPONENTS
1 16" Thermatic® Electric Fan (12V)
4 Mounting feet

\n
\n
\n
\n
\n\n\n
\n
\n Universal Fan Fitting Kit & Control Options\n
\n \n
\n
\n
\n

Mounting Hardware (Sold Separately)

\n
    \n
  • Quick Fit Kit: Part DC0579
    • \n
  • Mounting Hardware: Part DC0578
    • \n
  • Dual Fan Mounting Kit: Part DC1002
    • \n
  • Bracket Mounting Kits: Parts DC1000, DC1001, DC1002, DC1003
    • \n
\n
\n\n
\n

Control Mode Interface

\n
    \n
  • Digital Switches (12V & 24V):
    DC0444, DC0445, DC0448, DC0435, DC0438, DC0500
    • \n
  • Mechanical Switches:
    DC0401, DC0404, DC0400
    • \n
\n
\n
\n
\n
\n\n
\n\n
\n
\n THERMATIC® / ELECTRIC FAN RANGE\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n Thermatic® / Electric
Fan Size\n 		\n Part DC\n \n Airflow\n \n Max Current\n \n Weight\n \n Height
(mm)\n 		\n Width
(mm)\n 		\n Depth
(mm)\n
12V24V12V24V
\n 12” Thermatic®
Electric Fan\n 		DC0135DC0136400 CFM
680 m3/h 		400 CFM
680 m3/h 		5A (12V)
2.4A (24V)		0.88 kg
1.9 lb		213mm
(8.4")		213mm
(8.4")		55mm
(2.2")
\n Brushless 8” Thermatic®
Electric Fan\n 		DC0121DC0122450 CFM
765 m3/h 		470 CFM
799 m3/h 		7A (12V)
5A (24V)		1.27 kg
2.8 lb		213mm
(8.4")		213mm
(8.4")		66mm
(2.6")
\n 9” Thermatic®
Electric Fan\n 		DC0160DC0161591 CFM
1004 m3/h 		591 CFM
1004 m3/h 		6.5A (12V)
3.25A (24V)		0.93 kg
2 lb		240mm
(9.5")		246mm
(9.7")		57mm
(2.2")
\n Brushless 9” Thermatic®
Electric Fan\n 		DC0123DC0124788 CFM
1340 m3/h 		850 CFM
1444 m3/h 		11A (12V)
9A (24V)		1.33 kg
2.9 lb		240mm
(9.5")		246mm
(9.7")		68mm
(2.7")
\n 10” Slimline Thermatic®
Electric Fan\n 		DC0147DC0148696 CFM
1182 m3/h 		696 CFM
1182 m3/h 		7A (12V)
3.5A (24V)		1.13 kg
2.5 lb		276mm
(10.9")		272mm
(10.7")		55mm
(2.2")
\n 10" High Power Thermatic®
Electric Fan\n 		DC0150DC01511000 CFM
1699 m3/h 		1000 CFM
1699 m3/h 		19A (12V)
10A (24V)		1.5 kg
3.3 lb		276mm
(10.9")		272mm
(10.7")		84mm
(3.3")
\n Brushless 10" High Power
Thermatic® Electric Fan\n 		DC0125DC01261020 CFM
1736 m3/h 		1075 CFM
1826 m3/h 		15A (12V)
10A (24V)		1.4 kg
3 lb		276mm
(10.9")		272mm
(10.7")		67mm
(2.6")
\n 12” Thermatic®
Electric Fan\n 		DC0162DC0163847 CFM
1439 m3/h 		847 CFM
1439 m3/h 		9.0A (12V)
4.5A (24V)		1.45 kg
3.2 lb		293mm
(11.5")		293mm
(11.5")		58mm
(2.3")
\n 12" High Power Thermatic®
Electric Fan\n 		DC0155DC01561250 CFM
2124 m3/h 		1250 CFM
2124 m3/h 		22A (12V)
12A (24V)		1.6 kg
3.5 lb		293mm
(11.5")		293mm
(11.5")		86mm
(3.4")
\n Brushless 12" High Power
Thermatic® Electric Fan\n 		DC0127DC01281295 CFM
2200 m3/h 		1360 CFM
2311 m3/h 		18A (12V)
10.5A (24V)		1.5 kg
3.3 lb		293mm
(11.5")		293mm
(11.5")		69mm
(2.7")
\n 14” Slimline Thermatic®
Electric Fan\n 		DC0164DC01651021 CFM
1735 m3/h 		1021 CFM
1735 m3/h 		11.0A (12V)
5.5A (24V)		1.5 kg
3.3 lb		351mm
(13.8")		348mm
(13.7")		76mm
(3")
\n 14” High Power Thermatic®
Electric Fan\n 		DC0107DC01081500 CFM
2548 m3/h 		1500 CFM
2548 m3/h 		13A (12V)
6.5A (24V)		2.5 kg
5.5 lb		351mm
(13.8")		348mm
(13.7")		94mm
(3.7")
\n Brushless 14" High Power
Thermatic® Electric Fan\n 		DC0129DC01301900 CFM
3228 m3/h 		1930 CFM
3279 m3/h 		29A (12V)
14.5A (24V)		2.5 kg
5.5 lb		351mm
(13.8")		348mm
(13.7")		94mm
(3.7")
\n 16” Thermatic®
Electric Fan\n 		DC0166DC01722120 CFM
3602 m3/h 		2120 CFM
3602 m3/h 		19A (12V)
9.5A (24V)		2.6 kg
5.7 lb		404mm
(15.9")		425mm
(16.5")		97mm
(3.8")
\n Brushless 16" High Power
Thermatic® Electric Fan\n 		DC0131DC01322580 CFM
4383 m3/h 		2630 CFM
4468 m3/h 		31A (12V)
15.5A (24V)		2.6 kg
5.7 lb		404mm
(15.9")		425mm
(16.5")		98mm
(3.8")
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 3.1 kg
  • EAN / Barkod: 9311669001668
  • Protok zraka (Airflow): 2120 CFM (ft3/min)
  • Maksimalna struja: 19A (12 Volt)
  • Visina: 400.0 mm
  • Širina: 424.0 mm
  • Dubina: 97.0 mm

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.

Prikaži sve pojedinosti
