EBP23 - Electric Booster Pump 12v (Pump Only) (SKU: DC9051) predstavlja sam vrh tehnologije u području hlađenja motora. Električne vodene pumpe (EWP) branda Davies Craig dokazani su izbor u trkaćim serijama širom svijeta jer zamjenom tradicionalne mehaničke pumpe oslobađaju dodatnu snagu motora, osiguravaju stalan protok neovisno o broju okretaja (RPM) i sprječavaju destruktivno pregrijavanje motora nakon gašenja vozila.
\n\n
\n
\n

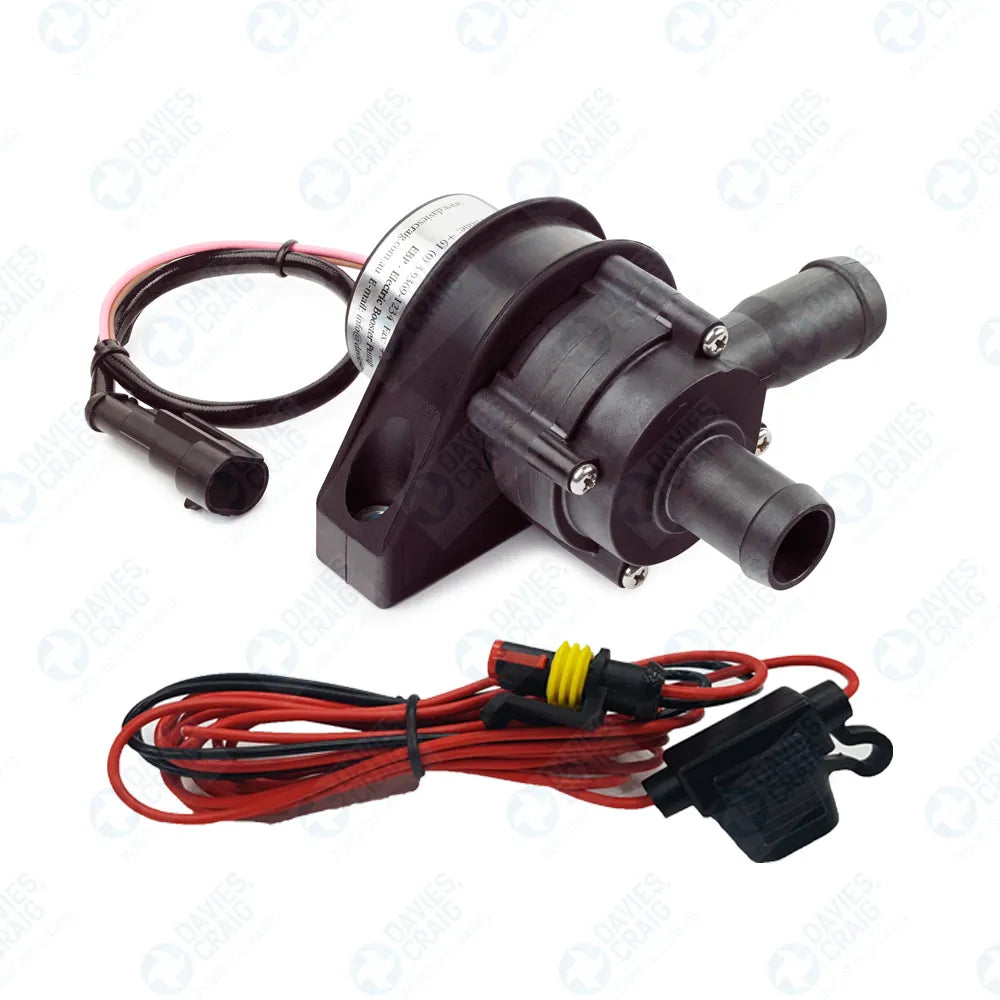

\n EBP23 - ELECTRIC BOOSTER PUMP (PUMP ONLY)\n
\n
\n Part #9051 (12V)\n
\n
\n\n
\n
The EBP23 is a ‘brushless’ 12 volt, high flow (23 litres / 6.1 gallons per minute), magnetically driven water pump. The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.
\n
The EBP®23 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP® can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.
\n\n
\n
Booster for car heater / LPG
\n
Water cooled motorcycles
\n
Turbo air / water intercoolers
\n
\n\n
\n
EBP FLOW CURVES
\n \n
\n
\n
\n\n
\n
\n KIT CONTENTS\n
\n
\n
\n \n
\n
\n
KIT CONTENTS
\n
\n
UNITS
\n
\n
\n
Electric Booster Pump - EBP23
\n
1
\n
\n
\n
Wiring Loom (AMP Plug)
\n
1
\n
\n
\n
Installation Instructions
\n
1
\n
\n \n
\n
\n
\n\n \n \n ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)\n \n
\n
\n \n
\n
\n
EBP
\n
MODEL
\n
\n
\n
EBP23
\n
EBP25
\n
EBP40
\n
EBP40
\n
\n
\n
\n
12 Volt
\n
12 Volt
\n
12 Volt
\n
24 Volt
\n
\n
\n
Operating voltage
\n
\n
6V to 18V DC
\n
8V to 20V DC
\n
6V to 15V DC
\n
12V to 28V DC
\n
\n
\n
Maximum current
\n
\n
1.25 Amps
\n
2.1 Amps
\n
4.6 Amps
\n
2.5 Amps
\n
\n
\n
Motor Type
\n
\n
Magnetic Drive Brushless
\n
Magnetic Drive Brushless
\n
Magnetic Drive Brushless
\n
Magnetic Drive Brushless
\n
\n
\n
Max Flowrate
\n
\n
23 l/min
6.1 gal/min
\n
30 l/min
7.9 gal/min
\n
35 l/min
9.2 gal/min
\n
37 l/min
9.8 gal/min
\n
\n
\n
Rated Flowrate @10 kPa
\n
\n
17.25 l/min
4.6 gal/min
\n
27 l/min
7.1 gal/min
\n
33 l/min
8.7 gal/min
\n
35.5 l/min
9.4 gal/min
\n
\n
\n
Maximum Head Pressure
\n
\n
0.25 Bar
3.63 PSI
\n
0.45 Bar
6.53 PSI
\n
0.85 Bar
12.32 PSI
\n
0.85 Bar
12.32 PSI
\n
\n
\n
Maximum Head Height
\n
\n
2.5m
8ft 2.4in
\n
4.5m
14ft 9.2in
\n
8.5m
27ft 10.65in
\n
8.5m
27ft 10.65in
\n
\n
\n
Fluid Temperatures
\n
\n
-40°c to 120°c
-40°F to 248°F
\n
-40°c to 120°c
-40°F to 248°F
\n
-40°c to 120°c
-40°F to 248°F
\n
-40°c to 120°c
-40°F to 248°F
\n
\n
\n
Pump Weight
\n
\n
364 grams
0.8 lbs
\n
650 grams
1.43 lbs
\n
570 grams
1.25 lbs
\n
570 grams
1.25 lbs
\n
\n
\n
Body Material
\n
\n
Polyphenylene sulphide (PPS) & Nylon 66
\n
Polyphenylene sulphide (PPS)
\n
Polyphenylene sulphide (PPS) & Nylon 66
\n
Polyphenylene sulphide (PPS) & Nylon 66
\n
\n
\n
Burst Pressure
\n
\n
250 kPa
36 Psi
\n
251 kPa
37 Psi
\n
252 kPa
38 Psi
\n
252 kPa
38 Psi
\n
\n
\n
Inlet & Outlet
\n
\n
Push on Barb
\n
Push on Barb
\n
Push on Barb
\n
Push on Barb
\n
\n
\n
Hose Fitment
Standard
\n
\n
19mm
3/4"
\n
19mm
3/4"
\n
19mm
3/4"
\n
19mm
3/4"
\n
\n
\n
Hose Fitment
with Step Adpater #19020
\n
\n
12mm to 16mm
1/2" to 5/8"
\n
12mm to 16mm
1/2" to 5/8"
\n
12mm to 16mm
1/2" to 5/8"
\n
12mm to 16mm
1/2" to 5/8"
\n
\n
\n
Application Motorbike Engine Size
\n
\n
up to 500cc
up to 30.5ci
\n
500cc - 1000cc
30.5 ci - 61ci
\n
1000cc - 2000cc
61 ci - 122ci
\n
1000cc - 2000cc
61 ci - 122ci
\n
\n \n
\n
\n \n\n \n \n ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)\n \n
\n
\n \n
\n
Application
\n
Pump Model
\n
Pump Only
\n
Pump Kit
\n
\n
\n
12 V
\n
24 V
\n
12 V
\n
\n
\n
Motorbike up to 500cc (Standard)
\n
EBP®23
\n
9051
\n
\n
9050
\n
\n
\n
Motorbike 500cc - 1000cc (Standard)
\n
EBP®25
\n
9025
\n
\n
\n
\n
\n
Motorbike 1000cc - 2000cc (Standard)
\n
EBP®40
\n
9040
\n
9041
\n
\n
\n
\n
Vehicle Heater System (Standard)
\n
EBP®23
\n
9051
\n
\n
9050
\n
\n
\n
LPG (Butane) System (Standard)
\n
EBP®23
\n
9051
\n
\n
9050
\n
\n
\n
\n
Intercooler
\n
(Depending on capacity)
\n
\n
EBP®23
\n
9051
\n
\n
9050
\n
\n
\n
EBP®25
\n
9025
\n
\n
\n
\n
\n
EBP®40
\n
9040
\n
9041
\n
\n
\n \n
\n
\n \n\n
\n
\n EBP APPLICATION OPTIONS\n
\n
\n
The compact EBP23 has been designed for a number of applications:
\n \n
Circulation Pump for LPG Vehicles – The EBP improves water circulation through the engine block to prevent LPG injector from icing up. Other advantages include a more even engine temperature and better engine cooling.
\n
Heater Booster Pump – The EBP increases heater performance during normal vehicle operation and enables continued heater usage when engine is off (but IGNITION is ON).
\n
Water Pump for Liquid Cooled Motorcycle Engines – The EBP provides liquid circulation independent of the engine speed to provide cooling at all levels. It may be used with the EWP Digital Controller to replace the existing water pump or used with an override switch to compliment the existing system.
\n
Multi-Purpose Pump – The EBP may be used in a number of different applications where flow is required, such as irrigation, camping, solar pumps, go-karts or marine operations.
\n \n
\n \n
\n
\n
\n\n\n\n
Tehničke Specifikacije
Težina: 0.45 kg
EAN / Barkod: 9311669090518
Maksimalna struja: 1.25 Amps
Radni napon: 6V to 18V DC
Maksimalna visina potiska: 2.5m
Tip motora: Magnetic Drive Brushless
Ulaz i izlaz: Push on Barb
Maksimalni protok: 23 l/min
Nazivni protok @10 kPa: 17.25 l/min
Maksimalni tlak glave: 0.25 Bar
Temperatura fluida: -40°c to 120°c
Materijal kućišta: Polyphenylene sulphide (PPS) & Nylon 66
Tlak pucanja: 250 kPa
Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
