Davies Craig

DC9050

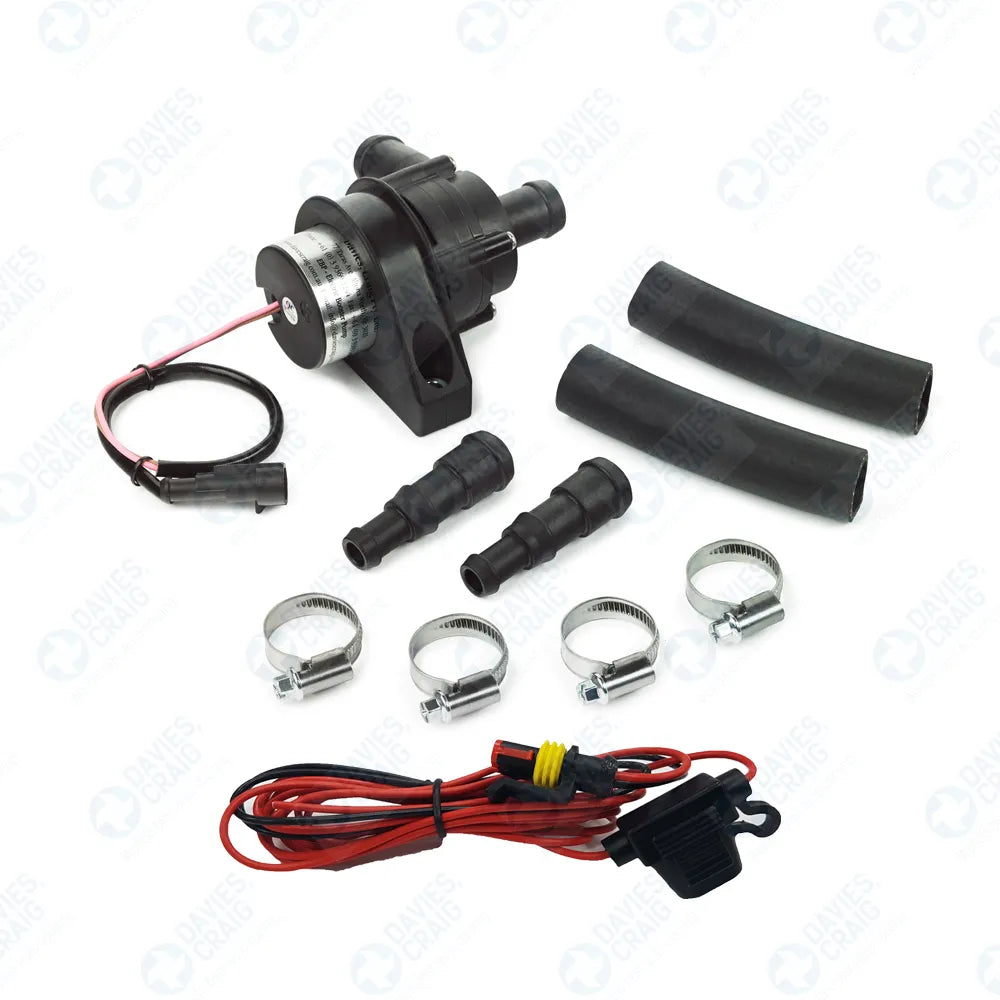

Davies Craig EBP23 - Electric Booster Pump Kit 12v

Davies Craig EBP23 - Electric Booster Pump Kit 12v

€153,32 EUR
€153,32 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

EBP23 - Electric Booster Pump Kit 12v (SKU: DC9050) originalni je pribor i dio sustava hlađenja vrhunskog australskog proizvođača Davies Craig. Izrađen po najvišim industrijskim standardima za motorsport, tuning i svakodnevnu uporabu, jamči besprijekornu kompatibilnost, jednostavnu ugradnju i dugotrajnu pouzdanost.

\n\n
\n
\n
\n ELECTRIC BOOSTER PUMP (EBP®23)\n
\n
\n Part #9050 (12V)\n
\n
\n\n
\n

The EBP®23 is a ‘brushless’ 12 volt, high flow (23 litres / 6 gallons per minute), magnetically driven water pump. The EBP® motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP® applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.

\n

The EBP®23 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP® can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.

\n\n
\n
  Radiator cooling booster
\n
  Car heater and LPG systems
\n
  Turbo air / water intercoolers
\n
\n\n
\n

EBP FLOW CURVES

\n \n
\n
\n
\n\n
\n
\n KIT CONTENTS\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n

 KIT CONTENTS

\n 		UNITS
Electric Booster Pump - EBP®231
EBP® Adapters Stepped (19mm to 12mm)2
Heater Hose 19mm ID11cm
Hose Clamps4
Mounting Brackets 1
Wiring Loom (AMP Plug)
1
Installation Instructions1
\n
\n
\n   \n \n
\n
\n\n
\n \n ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)\n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n

 EBP

\n

MODEL

\n 		  EBP23EBP25EBP40EBP40
 12 Volt12 Volt12 Volt24 Volt
Operating voltage 6V to 18V DC8V to 20V DC6V to 15V DC12V to 28V DC
Maximum current 1.25 Amps2.1 Amps4.6 Amps2.5 Amps
Motor Type Magnetic Drive BrushlessMagnetic Drive BrushlessMagnetic Drive BrushlessMagnetic Drive Brushless
Max Flowrate\n



\n 		\n

23 l/min

\n

 6.1 gal/min

\n 		\n

30 l/min

\n

 7.9 gal/min

\n 		\n

35 l/min

\n

 9.2 gal/min

\n 		\n

37 l/min

\n

 9.8 gal/min

\n
Rated Flowrate
@10 kPa 		\n



\n 		\n

17.25 l/min

\n

4.6 gal/min

\n 		\n

27 l/min

\n

 7.1 gal/min

\n 		\n

33 l/min

\n

8.7 gal/min

\n 		\n

35.5 l/min

\n

9.4 gal/min

\n
Maximum Head Pressure\n



\n 		\n

 0.25 Bar

\n

 3.63 PSI

\n 		\n

0.45 Bar

\n

6.53 PSI

\n 		\n

0.85 Bar

\n

12.32 PSI

\n 		\n

0.85 Bar

\n

12.32 PSI

\n
Maximum Head Height\n



\n 		\n

2.5m

\n

8ft 2.4in

\n 		\n

4.5m

\n

14ft 9.2in

\n 		\n

8.5m

\n

27ft 10.65in

\n 		\n

8.5m

\n

27ft 10.65in

\n
Fluid Temperatures\n



\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n
Pump Weight\n



\n 		\n

364 grams

\n

0.8 lbs

\n 		\n

650 grams

\n

1.43 lbs

\n 		\n

570 grams

\n

1.25 lbs

\n 		\n

570 grams

\n

1.25 lbs

\n
Body Material Polyphenylene sulphide (PPS) & Nylon 66Polyphenylene sulphide (PPS)Polyphenylene sulphide (PPS) & Nylon 66Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure\n



\n 		\n

250 kPa

\n

36 Psi

\n 		\n

251 kPa

\n

37 Psi

\n 		\n

252 kPa

\n

38 Psi

\n 		\n

252 kPa

\n

38 Psi

\n
Inlet & Outlet Push on BarbPush on BarbPush on BarbPush on Barb
\n

Hose Fitment

\n

Standard

\n 		\n



\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n
\n

 Hose Fitment

\n

with Step Adpater #19020

\n 		\n



\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n
Application Motorbike Engine Size\n



\n 		\n

up to 500cc

\n

up to 30.5ci

\n 		\n

500cc - 1000cc

\n

30.5 ci - 61ci

\n 		\n

1000cc - 2000cc

\n

61 ci - 122ci

\n 		\n

1000cc - 2000cc

\n

61 ci - 122ci

\n
\n
\n
\n\n
\n \n ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)\n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
ApplicationPump ModelPump OnlyPump Kit
12 V24 V12 V
Motorbike up to 500cc (Standard)EBP®239051 9050
Motorbike 500cc - 1000cc (Standard)EBP®259025
Motorbike 1000cc - 2000cc (Standard)EBP®4090409041
Vehicle Heater System (Standard)EBP®239051 9050
LPG (Butane) System (Standard)EBP®239051 9050
\n

Intercooler

\n

(Depending on capacity)

\n 		EBP®239051 9050
EBP®259025
EBP®4090409041
\n
\n
\n\n
\n
\n APPLICATION OPTIONS & DIRECT FIT\n
\n
\n

The EBP23 can be used as a direct fit Aux cooling pump for the following vehicles:

\n
\n
    \n
  • AUDI A3 / A3 Sportback / TT: 1.8 & 2.0 TFSI (BYT, BZB, BWA, CCZA)
    • \n
  • VW Golf V / VI / Variant: 1.8 TSI, 2.0 GTI (BWA, CAWB, CCZA, CCZB)
    • \n
  • VW Beetle / Eos / Passat: 2.0 TSI / TFSI (CBFA, CCTA, CCZA, BPY, BWA, CAWB, CCZB)
    • \n
  • VW Passat / Passat CC: 1.8 TSI / 2.0 TSI (BZB, CDAB, CGYA, CAWB, CCZA)
    • \n
  • VW Scirocco / Sharan / Jetta: 2.0 TSI / TFSI (BWA, CCZA, CCZB)
    • \n
\n
\n
\n \n
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 0.6 kg
  • EAN / Barkod: 9311669090501
  • Maksimalna struja: 1.25 Amps
  • Radni napon: 6V to 18V DC
  • Maksimalna visina potiska: 2.5m
  • Tip motora: Magnetic Drive Brushless
  • Ulaz i izlaz: Push on Barb
  • Maksimalni protok: 23 l/min
  • Nazivni protok @10 kPa: 17.25 l/min
  • Maksimalni tlak glave: 0.25 Bar
  • Temperatura fluida: -40°c to 120°c
  • Materijal kućišta: Polyphenylene sulphide (PPS) & Nylon 66
  • Tlak pucanja: 250 kPa

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
