Davies Craig EBP25 - Electric Booster Pump - Brushless 12V kit

Name: Davies Craig EBP25 - Electric Booster Pump - Brushless 12V kit
Brand: Davies Craig
SKU: DC9025
Price: 212.22 EUR
Availability: InStock

€212,22 EUR

EXTRA POPUST!!! Rasprodano

Porezi su uključeni.

EBP25 - Electric Booster Pump - Brushless 12V kit (SKU: DC9025) originalni je pribor i dio sustava hlađenja vrhunskog australskog proizvođača Davies Craig. Izrađen po najvišim industrijskim standardima za motorsport, tuning i svakodnevnu uporabu, jamči besprijekornu kompatibilnost, jednostavnu ugradnju i dugotrajnu pouzdanost.

\n\n

\n EBP25 - ELECTRIC BOOSTER PUMP - BRUSHLESS 12V KIT\n

\n Part #9025\n

\n\n

The EBP^®25 Brushless Electric Booster Pump is compact, powerful, lightweight and offers;

Higher flow capacity: 30 L/min
Low current draw
Mounting bracket
Reverse polarity protection
Overvoltage protection
Automatic dry-running protection – no liquid in pump, pump will enter idle protection within 5 seconds. Auto shut-down after 120 seconds!

This unit defies its capacity “punching well above its size” with the exceptional features this smart brushless booster pump offers! The Brushless EBP^®25 Electric Booster Pump complements the versatile Davies Craig EBP^®23 and EBP^®40 booster pumps which have drawn high acclaim nationally and globally.

Its compact design ensures versatility with the EBP^® suited to a variety of automotive, solar, recreation, mobile home, marine, domestic and water reticulation applications. This booster pump can be used to enhance OEM engine cooling systems, improving coolant circulation especially in LPG conversions and greatly assisting the management of engine temperatures.

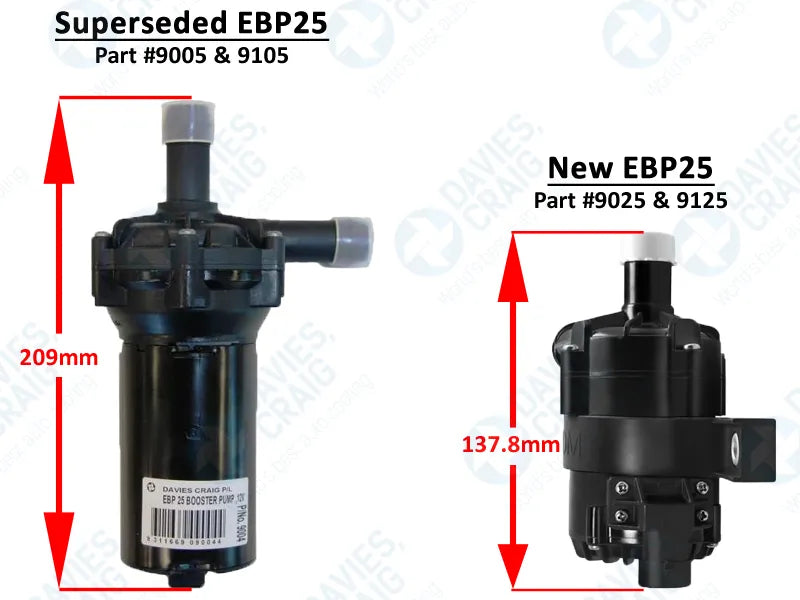

This EBP replaces the EBP25 - Brushed Motor, Parts Numbers 9005 & 9105.

\n\n

Turbocharger cooling

Water-to-air intercooler

LPG engine temperature management

\n\n

EBP FLOW CURVES

\n\n

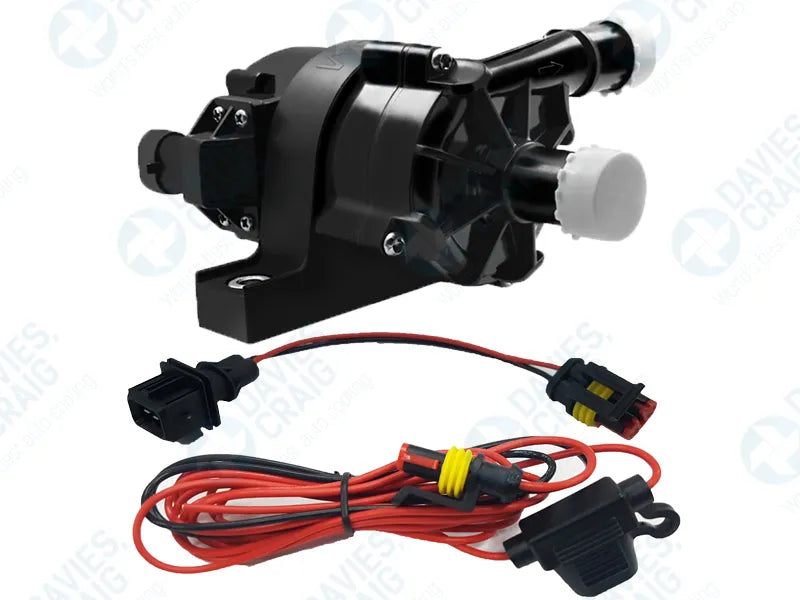

\n KIT CONTENTS\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

KIT CONTENTS
EBP25 - Electric Booster Pump	1
EBP25 wiring loom (AMP Plug)	1

\n\n

\n ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n EBP \n MODEL \n		EBP23	EBP25	EBP40	EBP40
\n EBP \n MODEL \n		12 Volt	12 Volt	12 Volt	24 Volt
Operating voltage		6V to 18V DC	8V to 20V DC	6V to 15V DC	12V to 28V DC
Maximum current		1.25 Amps	2.1 Amps	4.6 Amps	2.5 Amps
Motor Type		Magnetic Drive Brushless	Magnetic Drive Brushless	Magnetic Drive Brushless	Magnetic Drive Brushless
Max Flowrate	\n \n	\n 23 l/min \n 6.1 gal/min \n	\n 30 l/min \n 7.9 gal/min \n	\n 35 l/min \n 9.2 gal/min \n	\n 37 l/min \n 9.8 gal/min \n
Rated Flowrate @10 kPa	\n \n	\n 17.25 l/min \n 4.6 gal/min \n	\n 27 l/min \n 7.1 gal/min \n	\n 33 l/min \n 8.7 gal/min \n	\n 35.5 l/min \n 9.4 gal/min \n
Maximum Head Pressure	\n \n	\n 0.25 Bar \n 3.63 PSI \n	\n 0.45 Bar \n 6.53 PSI \n	\n 0.85 Bar \n 12.32 PSI \n	\n 0.85 Bar \n 12.32 PSI \n
Maximum Head Height	\n \n	\n 2.5m \n 8ft 2.4in \n	\n 4.5m \n 14ft 9.2in \n	\n 8.5m \n 27ft 10.65in \n	\n 8.5m \n 27ft 10.65in \n
Fluid Temperatures	\n \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n
Pump Weight	\n \n	\n 364 grams \n 0.8 lbs \n	\n 650 grams \n 1.43 lbs \n	\n 570 grams \n 1.25 lbs \n	\n 570 grams \n 1.25 lbs \n
Body Material		Polyphenylene sulphide (PPS) & Nylon 66	Polyphenylene sulphide (PPS)	Polyphenylene sulphide (PPS) & Nylon 66	Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure	\n \n	\n 250 kPa \n 36 Psi \n	\n 251 kPa \n 37 Psi \n	\n 252 kPa \n 38 Psi \n	\n 252 kPa \n 38 Psi \n
Inlet & Outlet		Push on Barb	Push on Barb	\n Push on Barb \n	\n Push on Barb \n
\n Hose Fitment \n Standard \n	\n \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n
\n Hose Fitment \n with Step Adpater #19020 \n	\n \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n
Application Motorbike Engine Size	\n \n	\n up to 500cc \n up to 30.5ci \n	\n 500cc - 1000cc \n 30.5 ci - 61ci \n	\n 1000cc - 2000cc \n 61 ci - 122ci \n	\n 1000cc - 2000cc \n 61 ci - 122ci \n

\n\n

\n ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Application	Pump Model	Pump Only		Pump Kit
		12 V	24 V	12 V
Motorbike up to 500cc (Standard)	EBP^®23	9051		9050
Motorbike 500cc - 1000cc (Standard)	EBP^®25	9025
Motorbike 1000cc - 2000cc (Standard)	EBP^®40	9040	9041
Vehicle Heater System (Standard)	EBP^®23	9051		9050
LPG (Butane) System (Standard)	EBP^®23	9051		9050
\n Intercooler \n (Depending on capacity) \n	EBP^®23	9051		9050
	EBP^®25	9025
	EBP^®40	9040	9041

\n\n

Tehničke Specifikacije

Težina: 1.15 kg
EAN / Barkod: 9311669090259
Maksimalna struja: 2.1 Amps
Radni napon: 8V to 20V DC
Maksimalna visina potiska: 4.5m
Tip motora: Magnetic Drive Brushless
Ulaz i izlaz: Push on Barb
Maksimalni protok: 30 l/min
Nazivni protok @10 kPa: 27 l/min
Maksimalni tlak glave: 0.45 Bar
Temperatura fluida: -40°c to 120°c
Materijal kućišta: Polyphenylene sulphide (PPS)
Tlak pucanja: 251 kPa

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
