Davies Craig

Inventarna šifra proizvoda (SKU):DC9040

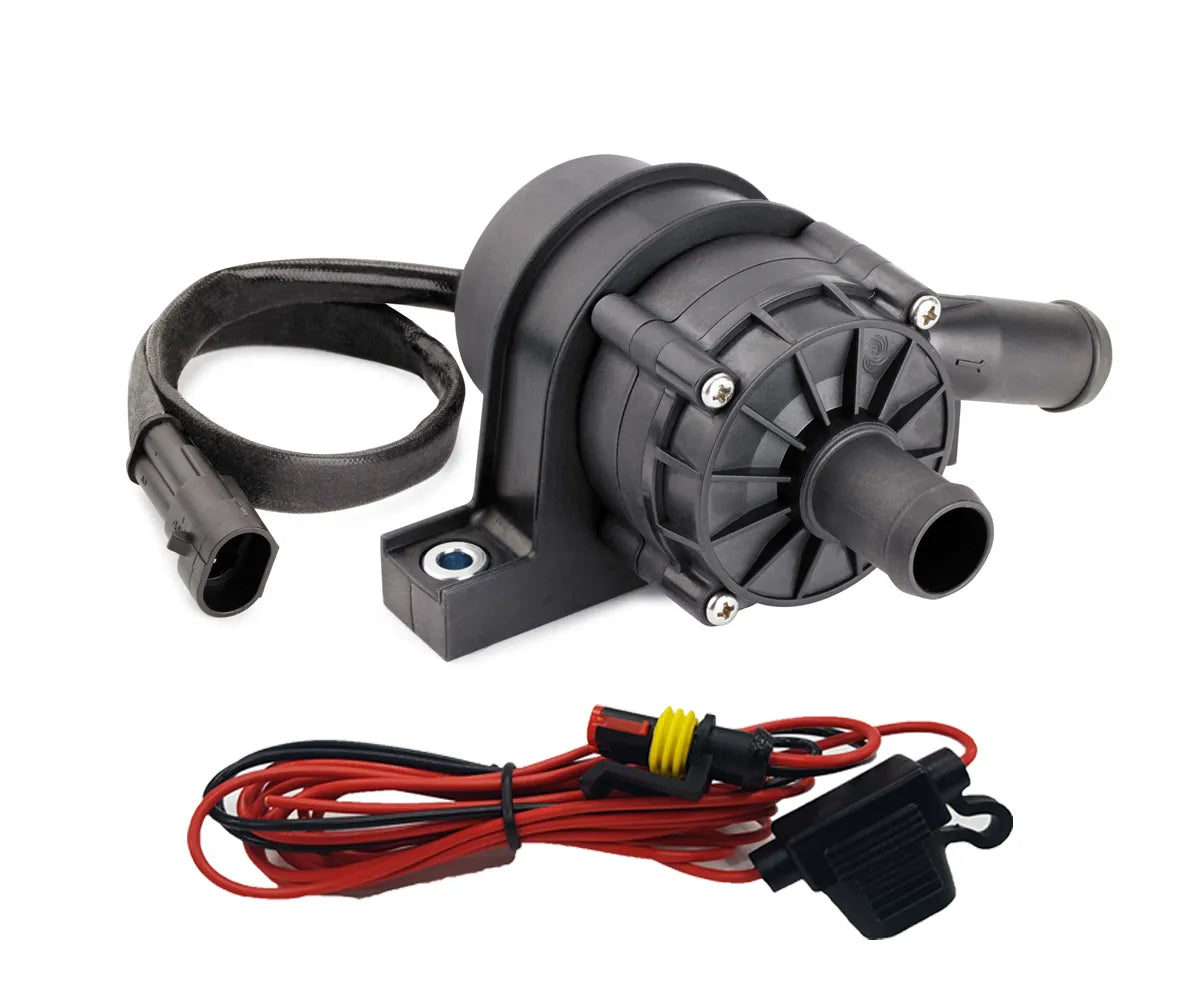

Davies Craig EBP40 - Electric Booster Pump (12V)

Name: Davies Craig EBP40 - Electric Booster Pump (12V)
Brand: Davies Craig
SKU: DC9040
Price: 216.56 EUR
Availability: InStock

€216,56 EUR

EXTRA POPUST!!! Rasprodano

Porezi su uključeni.

EBP40 - Electric Booster Pump (12V) (SKU: DC9040) predstavlja sam vrh tehnologije u području hlađenja motora. Električne vodene pumpe (EWP) branda Davies Craig dokazani su izbor u trkaćim serijama širom svijeta jer zamjenom tradicionalne mehaničke pumpe oslobađaju dodatnu snagu motora, osiguravaju stalan protok neovisno o broju okretaja (RPM) i sprječavaju destruktivno pregrijavanje motora nakon gašenja vozila.

\n\n

\n ELECTRIC BOOSTER PUMP (EBP^®40)\n

\n Part #9040 (12V)\n

\n\n

A high-performance brushless motor, magnetic-drive pump. Compact and versatile pump for a range of applications. This high-performance 35 litre per minute, brushless, magnetically driven EBP^® has drawn high acclaim globally for its diversity of applications. These include booster for car heater and LPG systems, solar and marine applications, water-cooled motorcycle, go-kart engines, turbo air/water intercoolers, caravans, motor homes and domestic irrigation.

The EBP^® is a recirculating pump which is ideal for a ‘closed system’ similar to an automotive cooling system; it is not self priming’. For optimum coolant flow control, use either of Davies, Craig Thermatic Switches (#0400, #0444 or #0500). The EBP^®40 is offered in both 12 and 24 Volt (Part #9041). UN ECE Regulation 10 compliant for improved electromagnetic compatibility (EMC).

\n\n

35 L/min High Performance

Magnetic Drive Brushless

EMC Approval E24*10R06

\n\n

EBP FLOW CURVES

\n\n

\n KIT CONTENTS\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

KIT CONTENTS
EBP^®40 - Electric Booster Pump	1

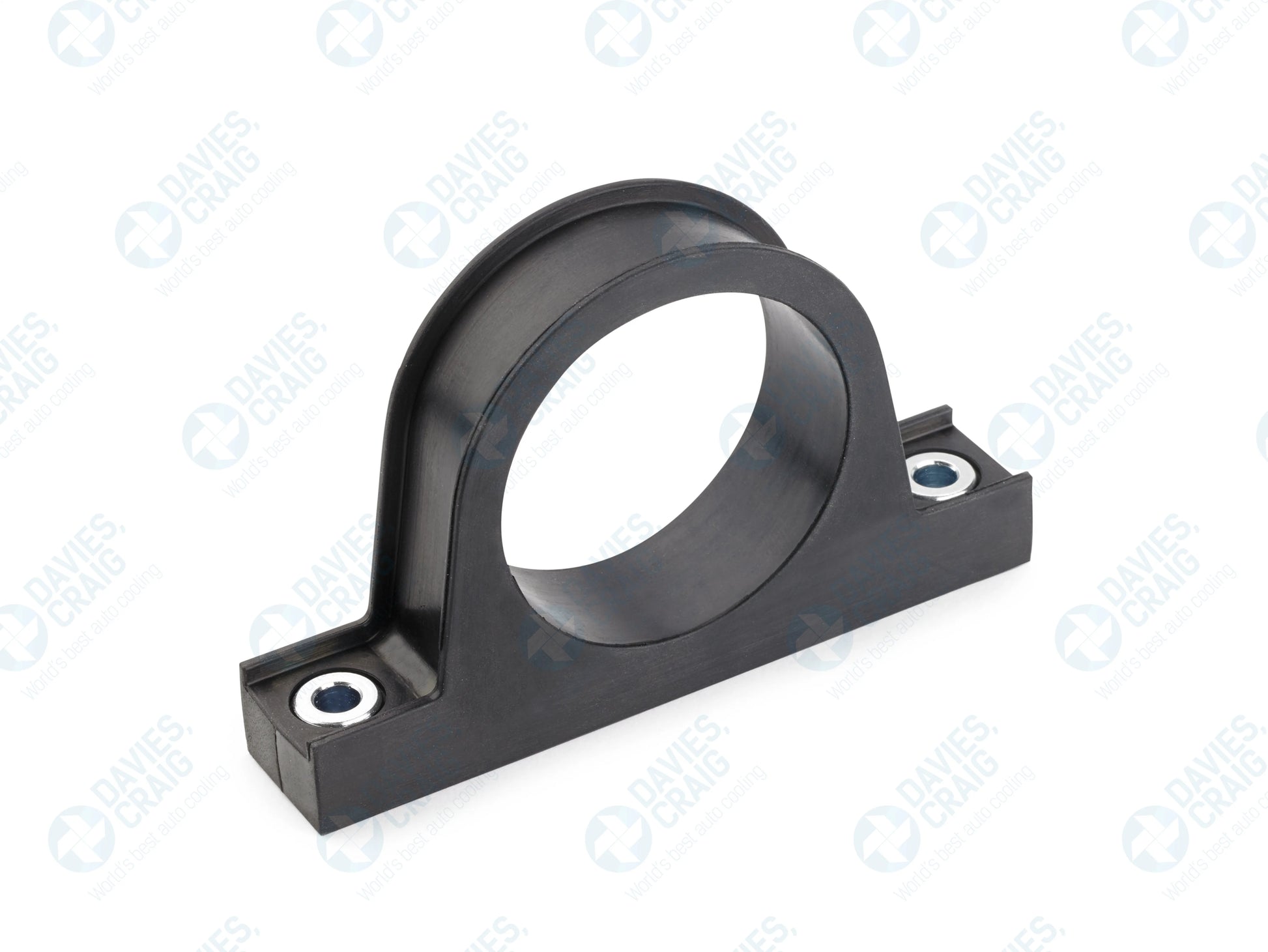

Mounting Bracket	1
EBP^®23, 25, 40 wiring loom (AMP Plug)	1

\n\n

\n ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n EBP \n MODEL \n		EBP23	EBP25	EBP40	EBP40
\n EBP \n MODEL \n		12 Volt	12 Volt	12 Volt	24 Volt
Operating voltage		6V to 18V DC	8V to 20V DC	6V to 15V DC	12V to 28V DC
Maximum current		1.25 Amps	2.1 Amps	4.6 Amps	2.5 Amps
Motor Type		Magnetic Drive Brushless	Magnetic Drive Brushless	Magnetic Drive Brushless	Magnetic Drive Brushless
Max Flowrate	\n \n	\n 23 l/min \n 6.1 gal/min \n	\n 30 l/min \n 7.9 gal/min \n	\n 35 l/min \n 9.2 gal/min \n	\n 37 l/min \n 9.8 gal/min \n
Rated Flowrate @10 kPa	\n \n	\n 17.25 l/min \n 4.6 gal/min \n	\n 27 l/min \n 7.1 gal/min \n	\n 33 l/min \n 8.7 gal/min \n	\n 35.5 l/min \n 9.4 gal/min \n
Maximum Head Pressure	\n \n	\n 0.25 Bar \n 3.63 PSI \n	\n 0.45 Bar \n 6.53 PSI \n	\n 0.85 Bar \n 12.32 PSI \n	\n 0.85 Bar \n 12.32 PSI \n
Maximum Head Height	\n \n	\n 2.5m \n 8ft 2.4in \n	\n 4.5m \n 14ft 9.2in \n	\n 8.5m \n 27ft 10.65in \n	\n 8.5m \n 27ft 10.65in \n
Fluid Temperatures	\n \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n	\n -40°c to 120°c \n -40°F to 248°F \n
Pump Weight	\n \n	\n 364 grams \n 0.8 lbs \n	\n 650 grams \n 1.43 lbs \n	\n 570 grams \n 1.25 lbs \n	\n 570 grams \n 1.25 lbs \n
Body Material		Polyphenylene sulphide (PPS) & Nylon 66	Polyphenylene sulphide (PPS)	Polyphenylene sulphide (PPS) & Nylon 66	Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure	\n \n	\n 250 kPa \n 36 Psi \n	\n 251 kPa \n 37 Psi \n	\n 252 kPa \n 38 Psi \n	\n 252 kPa \n 38 Psi \n
Inlet & Outlet		Push on Barb	Push on Barb	Push on Barb	Push on Barb
\n Hose Fitment \n Standard \n	\n \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n	\n 19mm \n 3/4" \n
\n Hose Fitment \n with Step Adpater #19020 \n	\n \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n	\n 12mm to 16mm \n 1/2" to 5/8" \n
Application Motorbike Engine Size	\n \n	\n up to 500cc \n up to 30.5ci \n	\n 500cc - 1000cc \n 30.5 ci - 61ci \n	\n 1000cc - 2000cc \n 61 ci - 122ci \n	\n 1000cc - 2000cc \n 61 ci - 122ci \n

\n\n

\n ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Application	Pump Model	Pump Only		Pump Kit
		12 V	24 V	12 V
Motorbike up to 500cc (Standard)	EBP^®23	9051		9050
Motorbike 500cc - 1000cc (Standard)	EBP^®25	9025
Motorbike 1000cc - 2000cc (Standard)	EBP^®40	9040	9041
Vehicle Heater System (Standard)	EBP^®23	9051		9050
LPG (Butane) System (Standard)	EBP^®23	9051		9050
\n Intercooler \n (Depending on capacity) \n	EBP^®23	9051		9050
	EBP^®25	9025
	EBP^®40	9040	9041

\n\n \n\n

Tehničke Specifikacije

Težina: 0.7 kg
EAN / Barkod: 9311669090402
Maksimalna struja: 4.6 Amps
Radni napon: 6V to 15V DC
Maksimalna visina potiska: 8.5m
Tip motora: Magnetic Drive Brushless
Ulaz i izlaz: Push on Barb
Maksimalni protok: 35 l/min
Nazivni protok @10 kPa: 33 l/min
Maksimalni tlak glave: 0.85 Bar
Temperatura fluida: -40°c to 120°c
Materijal kućišta: Polyphenylene sulphide (PPS) & Nylon 66
Tlak pucanja: 252 kPa

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
