Davies Craig EBP40 - Electric Booster Pump Kit (24V)

Davies Craig EBP40 - Electric Booster Pump Kit (24V)

€216,56 EUR
€216,56 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

EBP40 - Electric Booster Pump Kit (24V) (SKU: DC9041) originalni je pribor i dio sustava hlađenja vrhunskog australskog proizvođača Davies Craig. Izrađen po najvišim industrijskim standardima za motorsport, tuning i svakodnevnu uporabu, jamči besprijekornu kompatibilnost, jednostavnu ugradnju i dugotrajnu pouzdanost.

\n\n
\n
\n

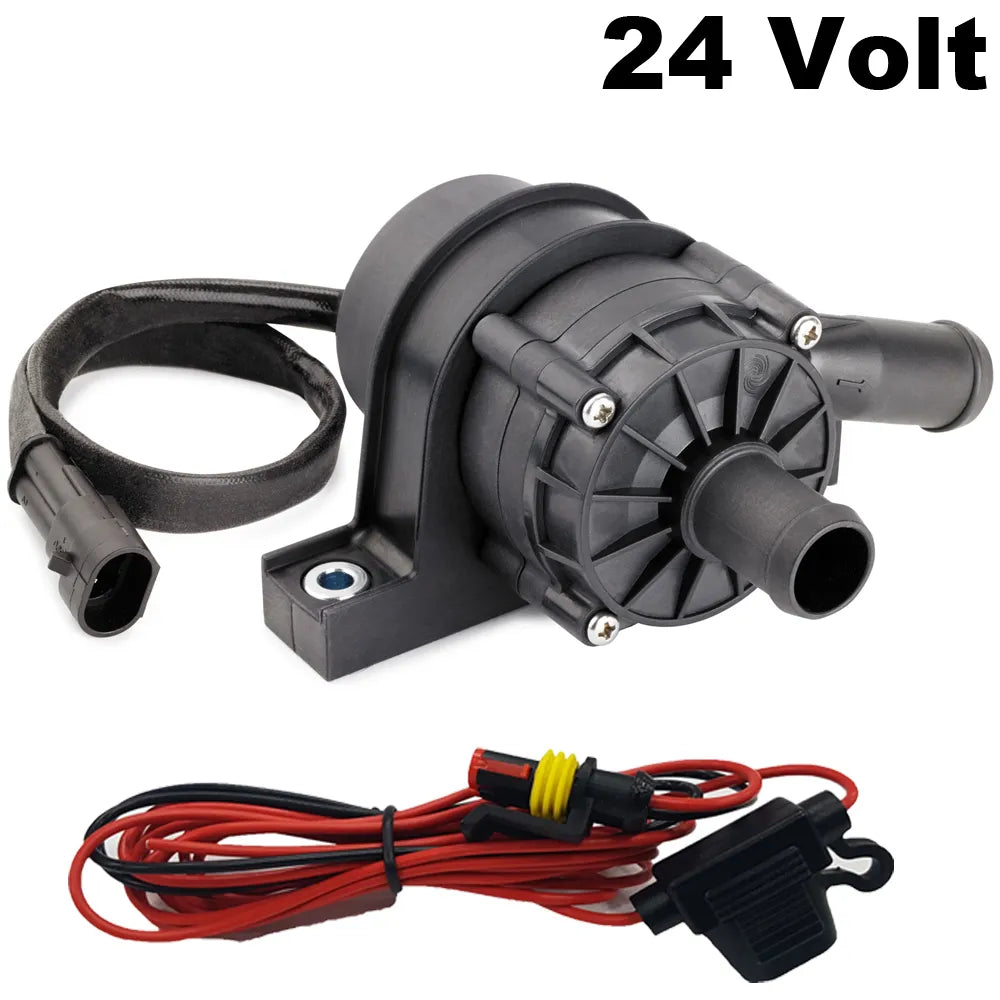

\n ELECTRIC BOOSTER PUMP KIT (24V) - EBP®40\n
\n
\n Part #9041 (24V)\n
\n
\n\n
\n

The EBP®40 is a brushless 24 volt, high flow (37litres / 9.8 gallons per minute), magnetically driven water pump. The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required.

\n

The many EBP applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation. UN ECE Regulation 10 compliant for improved electromagnetic compatibility (EMC) in automotive applications. Approval No: E24*10R06/02*4620*00.

\n\n
\n
  24 Volt Operation
\n
  37 L/min High Flow
\n
  Brushless Magnetic Drive
\n
\n\n
\n

EBP FLOW CURVES

\n \n
\n
\n
\n\n
\n
\n KIT CONTENTS\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
KIT CONTENTS
DescriptionQuantity
\n
Electric Booster Pump (EBP®40)
\n 		1
\n

EBP®23, 25, 40 wiring loom (AMP Plug)

\n

*Note: wiring loom added to kit 1-Dec-2020

\n 		1
Instructions1
\n
\n
\n\n
\n \n ELECTRIC BOOSTER PUMP SPECIFICATION (click to expand)\n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n

 EBP

\n

MODEL

\n 		  EBP23EBP25EBP40EBP40
 12 Volt12 Volt12 Volt24 Volt
Operating voltage 6V to 18V DC8V to 20V DC6V to 15V DC12V to 28V DC
Maximum current 1.25 Amps2.1 Amps4.6 Amps2.5 Amps
Motor Type Magnetic Drive BrushlessMagnetic Drive BrushlessMagnetic Drive BrushlessMagnetic Drive Brushless
Max Flowrate



\n

23 l/min

\n

 6.1 gal/min

\n 		\n

30 l/min

\n

 7.9 gal/min

\n 		\n

35 l/min

\n

 9.2 gal/min

\n 		\n

37 l/min

\n

 9.8 gal/min

\n
Rated Flowrate
@10 kPa



\n

17.25 l/min

\n

4.6 gal/min

\n 		\n

27 l/min

\n

 7.1 gal/min

\n 		\n

33 l/min

\n

8.7 gal/min

\n 		\n

35.5 l/min

\n

9.4 gal/min

\n
Maximum Head Pressure



\n

 0.25 Bar

\n

 3.63 PSI

\n 		\n

0.45 Bar

\n

6.53 PSI

\n 		\n

0.85 Bar

\n

12.32 PSI

\n 		\n

0.85 Bar

\n

12.32 PSI

\n
Maximum Head Height



\n

2.5m

\n

8ft 2.4in

\n 		\n

4.5m

\n

14ft 9.2in

\n 		\n

8.5m

\n

27ft 10.65in

\n 		\n

8.5m

\n

27ft 10.65in

\n
Fluid Temperatures



\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n 		\n

 -40°c to 120°c

\n

 -40°F to 248°F

\n
Pump Weight



\n

364 grams

\n

0.8 lbs

\n 		\n

650 grams

\n

1.43 lbs

\n 		\n

570 grams

\n

1.25 lbs

\n 		\n

570 grams

\n

1.25 lbs

\n
Body Material Polyphenylene sulphide (PPS) & Nylon 66Polyphenylene sulphide (PPS)Polyphenylene sulphide (PPS) & Nylon 66Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure



\n

250 kPa

\n

36 Psi

\n 		\n

251 kPa

\n

37 Psi

\n 		\n

252 kPa

\n

38 Psi

\n 		\n

252 kPa

\n

38 Psi

\n
Inlet & Outlet Push on BarbPush on BarbPush on BarbPush on Barb
\n

Hose Fitment

\n

Standard

\n 		\n



\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n 		\n

19mm

\n

3/4"

\n
\n

 Hose Fitment

\n

with Step Adpater #19020

\n 		\n



\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n 		\n

12mm to 16mm

\n

1/2" to 5/8"

\n
Application Motorbike Engine Size\n



\n 		\n

up to 500cc

\n

up to 30.5ci

\n 		\n

500cc - 1000cc

\n

30.5 ci - 61ci

\n 		\n

1000cc - 2000cc

\n

61 ci - 122ci

\n 		\n

1000cc - 2000cc

\n

61 ci - 122ci

\n
\n
\n
\n\n
\n \n ELECTRIC BOOSTER PUMP SELECTION GUIDE (click to expand)\n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
ApplicationPump ModelPump OnlyPump Kit
12 V24 V12 V
Motorbike up to 500cc (Standard)EBP®239051 9050
Motorbike 500cc - 1000cc (Standard)EBP®259025
Motorbike 1000cc - 2000cc (Standard)EBP®4090409041
Vehicle Heater System (Standard)EBP®239051 9050
LPG (Butane) System (Standard)EBP®239051 9050
\n

Intercooler

\n

(Depending on capacity)

\n 		EBP®239051 9050
EBP®259025
EBP®4090409041
\n
\n
\n\n
\n
\n EBP APPLICATION OPTIONS\n
\n
\n
    \n
  1. Circulation Pump for LPG Vehicles – The EBP improves water circulation through the engine block to prevent LPG injector from icing up. Other advantages include a more even engine temperature and better engine cooling.
    2. \n
  2. Heater Booster Pump – The EBP increases heater performance during normal vehicle operation and enables continued heater usage when engine is off (but IGNITION is ON).
    3. \n
  3. Water Pump for Liquid Cooled Motorcycle Engines - The EBP provides liquid circulation independent of the engine speed to provide cooling at all levels. It may be used with the EWP Digital Controller to replace the existing water pump or used with an override switch to compliment the existing system.
    4. \n
  4. Multi-Purpose Pump – The EBP may be used in a number of different applications where flow is required, such as irrigation, camping, solar pumps, go-karts or marine operations.
    5. \n
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 0.7 kg
  • EAN / Barkod: 9311669090419
  • Maksimalna struja: 2.5 Amps
  • Radni napon: 12V to 28V DC
  • Maksimalna visina potiska: 8.5m
  • Tip motora: Magnetic Drive Brushless
  • Ulaz i izlaz: Push on Barb
  • Maksimalni protok: 37 l/min
  • Nazivni protok @10 kPa: 35.5 l/min
  • Maksimalni tlak glave: 0.85 Bar
  • Temperatura fluida: -40°c to 120°c
  • Materijal kućišta: Polyphenylene sulphide (PPS) & Nylon 66
  • Tlak pucanja: 252 kPa

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
