EWP115 Nylon Combo - Remote Electric Water Pump & Controller (12V) (SKU: DC8930) osigurava precizno i automatsko upravljanje radom sustava hlađenja vašeg vozila. Kao nezaobilazan dio naprednog motorsport hlađenja, Davies Craig regulator održava stabilnu radnu temperaturu rashladne tekućine, produžuje vijek trajanja motora te jamči optimalan rad električnih ventilatora i crpki u svim uvjetima vožnje.
\n\n
\n
\n

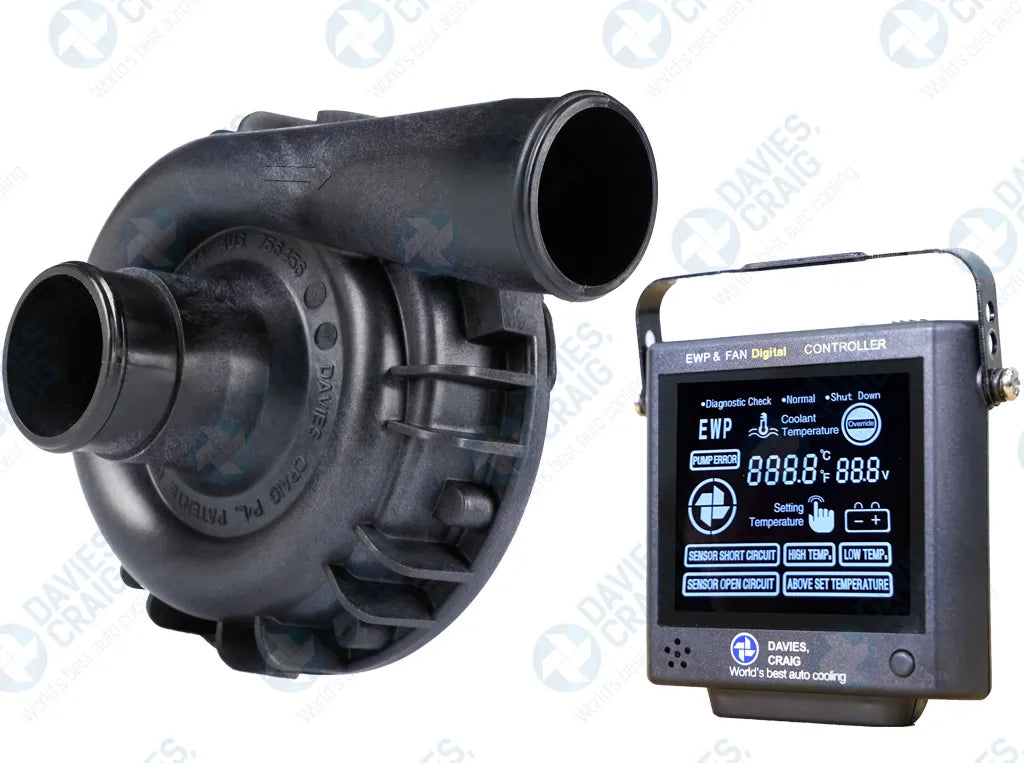

\n EWP®115 Nylon Combo – Remote Electric Water Pump & Controller (12V)\n
\n
\n Part DC8930\n
\n
\n\n
\n
\n Take total control of your engine cooling with the Davies Craig EWP®115 Nylon Electric Water Pump and LCD EWP®/Fan Digital Controller. The Controller will also manage the operation of your Thermatic® Fan.\n
\n\n
\n Mechanical belt-driven water pumps run directly off the motor and sap engine power … the EWP®115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 10kw (13hp). Combined with the LCD EWP®/Fan Digital Controller, the pump continues to run after you’ve switched off, eliminating “heat soak” and extending engine life.\n
\n
\n
\n\n
\n
\n Purchase options\n
\n\n
\n
\n \n
\n
Option
\n
Part DC
\n
Notes
\n
\n \n \n
\n
Pump Only
\n
DC8125
\n
EWP®115 Nylon 12V pump only.
\n
\n
\n
Kit
\n
DC8025
\n
Pump kit option with essential wiring and fitting hardware.
\n
\n
\n
\n Combo with Controller\n
\n
\n DC8930\n
\n
Combo pack with Digital Controller (see contents below).
\n
\n \n
\n
\n
\n\n
\n

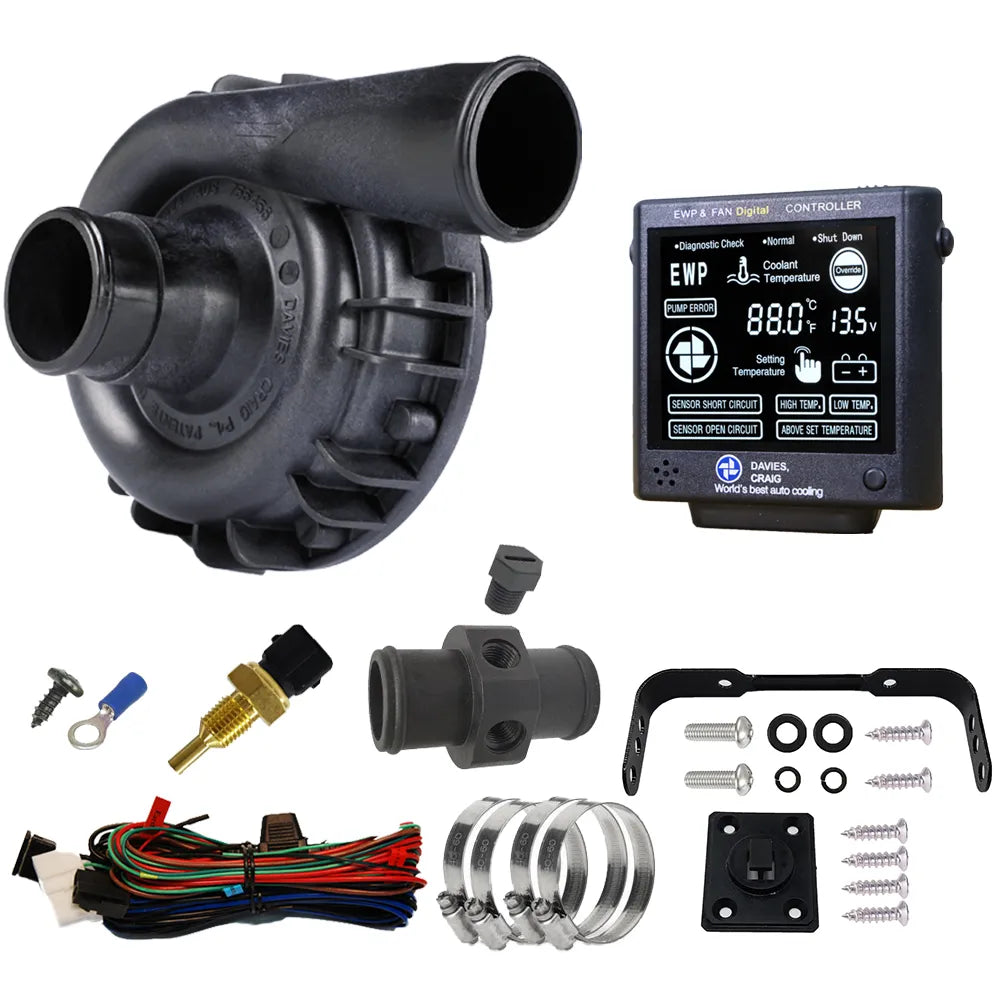

\n Combo contents (Part DC8930)\n
\n\n
\n
\n \n
\n
Part description
\n
Units
\n
\n \n \n
EWP®115 - NYLON 12V Assembly
1
\n
HOSE CLAMP
4
\n
Wiring Harness - EWP & Fan Controller
1
\n
EWP/Fan Digital Controller
1
\n
Adapter - Nylon - In Line, 35mm (2 x 1/4" NPT)* *As of Sept 2021 the inline adapter changes to 38mm
1
\n
1/4" NPT Nylon - Bung
1
\n
U-Bracket & Mounting Plate (For DC8002)
1
\n
SCREW – SELF TAP 8X3/8 BZ
1
\n
BLUE 6mm Ring Terminal - B2-6
1
\n
Sensor Thermal - coolant temp - 1/4" NPT thread
1
\n \n
\n
\n
\n\n
\n
\n Technical specifications\n
\n\n
\n
\n
\n
\n \n
\n
EWP®115 NYLON PUMP
\n
\n \n \n
Operating voltage
3V DC to 15V DC
\n
Maximum current
10A @ 13V
\n
Flow rate (max)
139 L/min
\n
Operating temp.
-40° to 120°C
\n
Pump design
Clockwise centrifugal
\n
Pump weight
920 grams (2.3 lb)
\n
Pump material
Nylon 66, 30% GF
\n
Burst pressure
500 kPa (72.5 psi)
\n
Seal
Ceramic face seal
\n
Self Priming
No
\n
Fits hose sizes
35mm to 51mm
\n \n
\n
\n
\n
\n \n
\n
LCD DIGITAL CONTROLLER
\n
\n \n \n
Voltage range
12V DC to 29V DC
\n
Display LCD size
64.6mm x 55.6mm
\n
Maximum current
12 Amps
\n
Targeted temps
40°C to 110°C
\n
Fan cut-in temp.
+3°C above set
\n
Shutdown overrun
3 mins or -10°C
\n
Sensor type
Thermister in housing
\n
Weight
100 grams (3.5 oz)
\n
Dimensions (LxWxD)
98 x 95 x 25 mm
\n
Memory
Set & targeted temp
\n
Indicators
Temp, Power, EWP, Fan, Error
\n \n
\n
\n
\n
\n
\n\n
\n
\n EWP® & Fan Digital Controller\n
\n\n
\n
\n The updated LCD Digital Controller manages the operation of the EWP® by varying the speed of the pump in response to engine temperature and manages your electric engine fan.\n
\n\n
Features:
\n
\n
\n Black & White Numerical Screen\n
\n
\n Celsius or Fahrenheit display option\n
\n
\n Set / targeted temperature memory\n
\n
\n Override feature to assist bleeding EWP®\n
\n
\n\n
Warning Alarms:
\n
\n
Plus 10°C (14°F) set/target temperature
\n
Under temp 40°C after 5 mins
\n
Temp sensor error / Over or under voltage / EWP® error
\n
\n
\n
\n\n
\n
\n EWP® & Controller Installation Demonstration\n
\n
\n
\n \n
\n
\n Combined with an LCD EWP®/Fan Digital Controller (Included in this Combo Pack) will manage both the EWP® and Thermatic® fan operation. The Digital Controller will vary the speed of the EWP® in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency.\n
\n
\n
\n\n
\n
\n Key benefits\n
\n\n
\n
The world’s most advanced total engine cooling management system:
\n
\n
\n \n universal fit\n
\n
\n \n more power\n
\n
\n \n more cooling\n
\n
\n \n increase fuel efficiency\n
\n
\n \n extend engine life\n
\n
\n \n world-leading technology\n
\n
\n
\n
\n\n
\n
\n EWP® installation options\n
\n\n
\n \n \n Installing an EWP® as an AUXILIARY PUMP\n \n
\n
Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
\n
Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose and remove the manufacturer’s thermostat.
\n
You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
\n
If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation.
\n
\n
\n In both these cases, the EWP® will pump past the impeller of the mechanical water pump.\n
\n \n\n \n \n Disengaged mechanical water pump (recommended)\n \n
\n
Remove the mechanical water pump and remove the thermostat.
\n
Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.
\n
Block any bypass passages and re-install the disengaged water pump.
\n
\n \n\n \n \n Removed mechanical water pump (Ideal)\n \n
\n
Remove the mechanical water pump and thermostat from the engine.
\n
Install a Davies Craig EWP® Header Adaptor or blanking plate (not supplied).
\n
Install the EWP® into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
\n
\n \n\n
\n In most cases EWP® will be adequately supported by the radiator hose. Where mounting is required, the EWP® must be soft mounted to protect against vibration. For the EWP®115, EWP®140 and EWP®150 Part DC8700 or DC8710 Mounting bracket is recommended.\n
Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
