EWP150 - Remote Electric Water Pump (24V) (SKU: DC8161) predstavlja sam vrh tehnologije u području hlađenja motora. Električne vodene pumpe (EWP) branda Davies Craig dokazani su izbor u trkaćim serijama širom svijeta jer zamjenom tradicionalne mehaničke pumpe oslobađaju dodatnu snagu motora, osiguravaju stalan protok neovisno o broju okretaja (RPM) i sprječavaju destruktivno pregrijavanje motora nakon gašenja vozila.
\n\n
\n
\n
\n EWP®150 Remote Electric Water Pump (24V)\n
\n
\n Part DC8161\n
\n
\n\n
\n
\n Muscle up your engine cooling system with the Davies Craig EWP®150 alloy Electric Water Pump. Like all EWP®s, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat.\n
\n\n

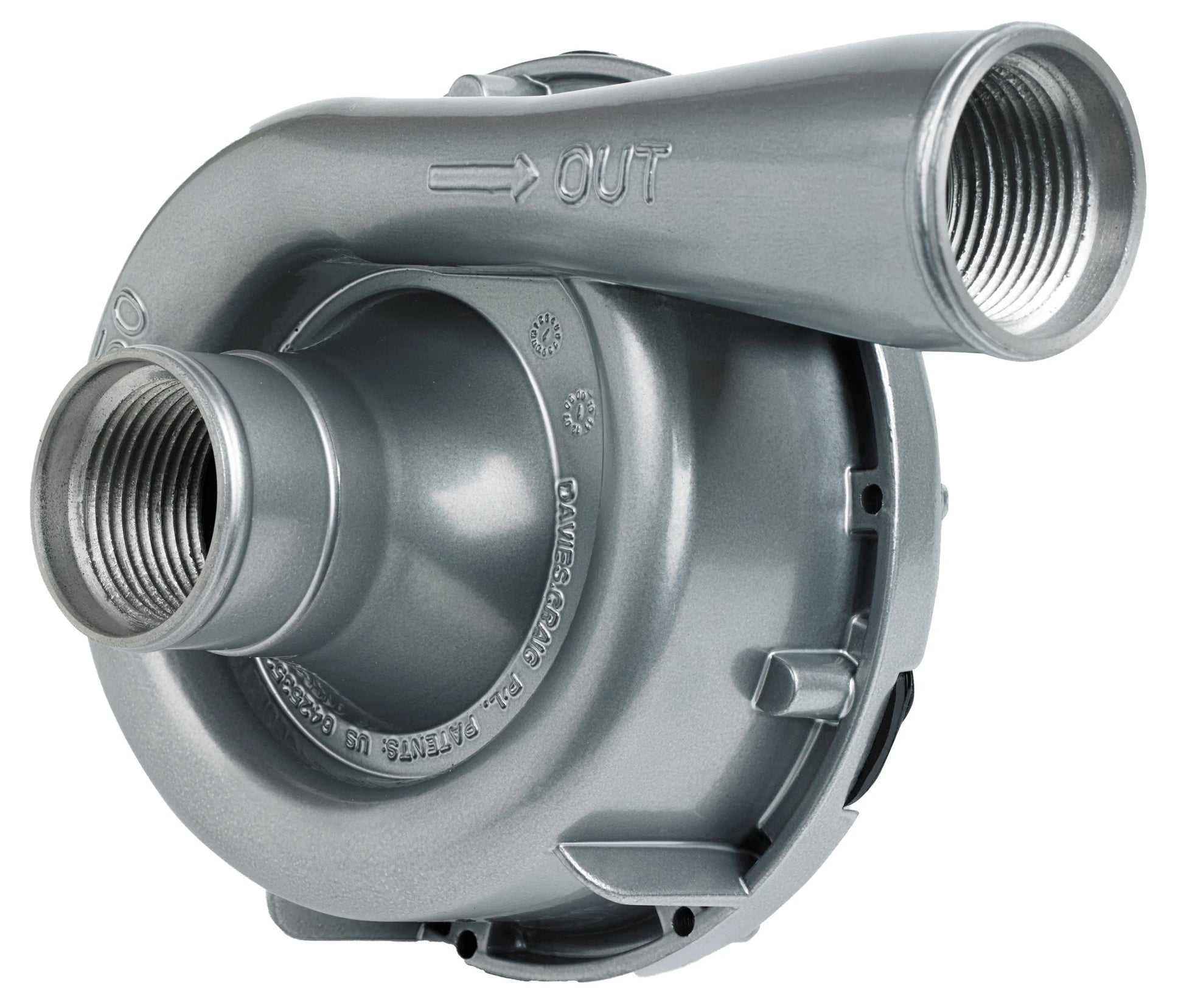

\n The compact EWP®150 alloy unit is manufactured with -AN16 ORB internal inlet and outlet fitting for neat, tight screw-in fitting applications. This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump, increasing power and improving coolant temperature control.\n
\n Combined with an LCD EWP®/Fan Digital Controller (Sold separately Part DC8002 or EWP® Combo Pack), the system manages both EWP® and Thermatic® fan operation:\n
\n
\n
Varies pump speed in response to coolant temperature.
\n
Multiple temperature targets for performance or fuel efficiency.
\n
Activates Thermatic® fan(s) at 3°C (5.4°F) above the set temperature.
\n
Runs on after shutdown for up to 3 minutes (or until 10°C / 14°F below the set point) to reduce heat soak and help extend engine life.
\n
Combo Pack includes a DIY kit with everything needed for fitment, plus an instruction booklet.
\n
\n
\n
\n
\n\n
\n
\n Key benefits\n
\n\n
\n
The world’s most advanced total engine cooling management system:
\n \n \n Installing an EWP® as an AUXILIARY PUMP\n \n
\n
Leave the mechanical water pump in place and install the EWP® into the bottom radiator hose.
\n
Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some circulation when the thermostat is closed. Refit with clean sealing surfaces and a new gasket if required.
\n
\n \n\n \n \n EWP® installation – disabling the mechanical water pump\n \n
\n
Install the EWP® into the bottom radiator hose and remove the manufacturer’s thermostat.
\n
Bypass the water pump pulley using an appropriate length belt (not supplied).
\n
If running the pump continuously, drill two approx. 3mm (1/8") holes in the thermostat plate to allow some circulation. Refit with clean sealing surfaces and a new gasket if required.
\n
\n
\n In both cases, the EWP® pumps past the impeller of the mechanical water pump.\n
\n \n\n \n \n Disengaged mechanical water pump (recommended)\n \n
\n
Remove the thermostat and mechanical water pump.
\n
Remove the impeller from the pump shaft, then refit the pump and pulley as an idler to avoid re-routing the drive belt.
\n
Block bypass passages and refit with clean gasket surfaces and correctly installed gaskets to prevent leaks.
\n
Install the EWP® into the bottom radiator hose.
\n
\n \n\n \n \n Removed mechanical water pump (ideal)\n \n
\n
Remove the mechanical water pump and thermostat.
\n
Install a Davies Craig EWP® header adaptor or blanking plate (not supplied), using the correct gasket or sealant on clean surfaces.
\n
Install the EWP® into the bottom radiator hose (hose modification/replacement may be required).
\n
Fit an appropriate length belt (not supplied) to drive accessories.
\n
\n \n\n
\n In most cases the EWP® is supported by the radiator hose. If mounting is required, soft-mount the pump to protect against vibration. For EWP®115, EWP®140 and EWP®150, mounting bracket Part DC8700 or DC8710 is recommended.\n
Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
