Davies Craig

DC8919

Davies Craig EWP80 Alloy Combo - Remote Electric Water Pump & Controller (12V)

Davies Craig EWP80 Alloy Combo - Remote Electric Water Pump & Controller (12V)

€397,61 EUR
€397,61 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

EWP80 Alloy Combo - Remote Electric Water Pump & Controller (12V) (SKU: DC8919) osigurava precizno i automatsko upravljanje radom sustava hlađenja vašeg vozila. Kao nezaobilazan dio naprednog motorsport hlađenja, Davies Craig regulator održava stabilnu radnu temperaturu rashladne tekućine, produžuje vijek trajanja motora te jamči optimalan rad električnih ventilatora i crpki u svim uvjetima vožnje.

\n\n
\n
\n
\n EWP®80 Alloy Combo – Remote Electric Water Pump & Controller (12V)\n
\n
\n Part DC8919\n
\n
\n\n
\n

\n The EWP®80 Alloy Electric Water Pump – simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven, mechanical water pump. It will fit most vehicle makes and models and can be installed on the bottom radiator hose of most vehicles equipped with naturally aspirated engines up to two litres (2000cc).\n

\n\n

\n The revolutionary, Australian-designed EWP®80 Alloy is made from lightweight aluminium which offers great thermal conductivity and incorporates a ceramic faced seal for long-life durability.\n

\n\n

\n With a maximum flow rate of 90 l/min (24 g/min), 35mm (13/8”) inlet and outlet, arrives in magnificent matt-black, powder-coated finish and offers the same high class, performance, compactness, and style you have come to expect from the world’s largest supplier of remote-mounted electric water pumps and world-beating engine cooling products company, Davies Craig Pty Ltd.\n

\n\n

\n Customers continue to enjoy superior engine cooling technology using Davies, Craig’s extensive range of remote-mounted Electric Water Pumps (EWP®) combined with the patented LCD EWP®/Fan Digital Controller, commonly called EWP® Combo Packs!\n

\n\n

\n The EWP®80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP® can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.\n

\n
\n
\n\n
\n
\n Purchase options\n
\n\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
OptionPart DCNotes
Pump OnlyDC8109EWP®80 Alloy 12V pump only.
KitDC8009Pump kit option with essential wiring and fitting hardware.
\n Combo with Controller\n \n DC8919\n Combo pack with Digital Controller (see contents below).
\n
\n
\n\n
\n

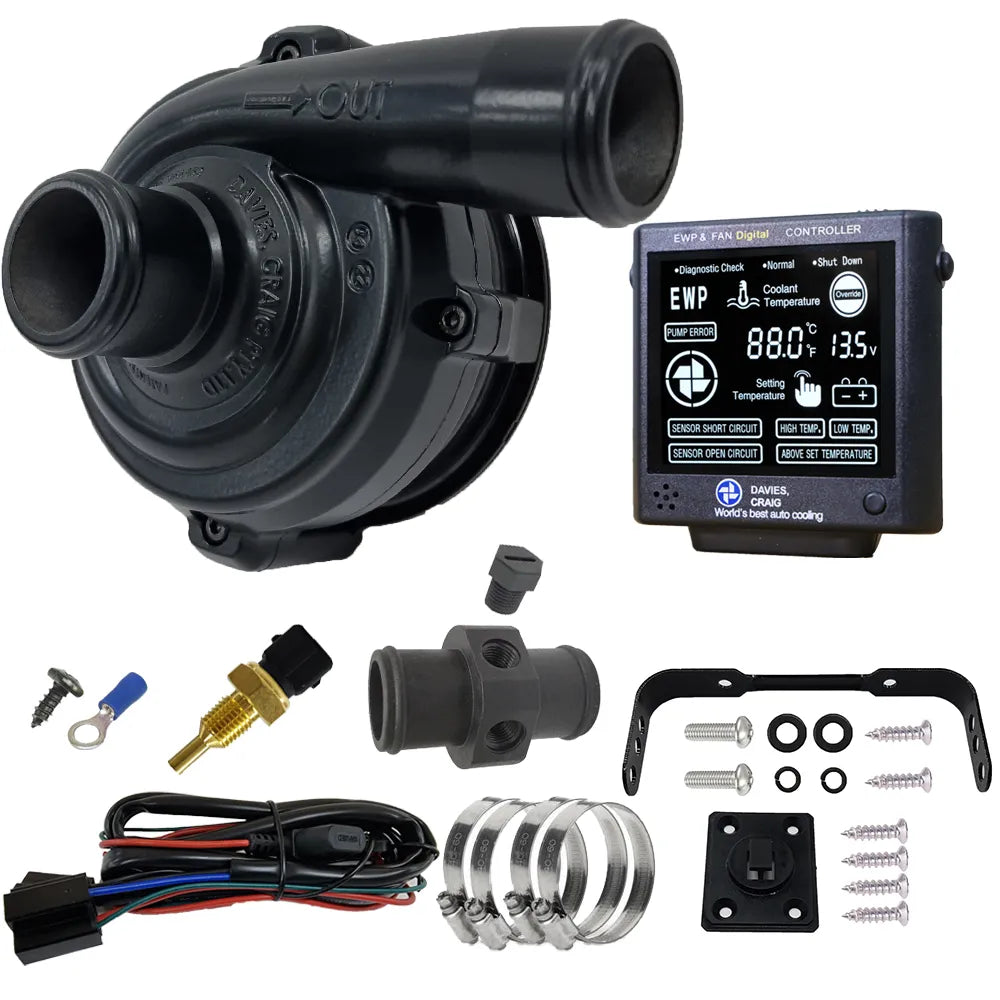

\n Combo contents (Part DC8919)\n
\n\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Part descriptionUnits
EWP®80 Alloy 1
EWP/Fan Digital Controller & Mounting Plate + Bracket 1
Sensor Thermal - coolant temp - ¼" NPT thread 1
Adaptor - Nylon - In Line, 38mm (2 x 1/4" NPT) 1
1/4" NPT Nylon - Bung 1
Wiring Harness 1
Hose Clamps 4
SCREW - SELF TAP 8X3/8 BZ 1
BLUE 6mm Ring Terminal 1
Installation Instructions 1
\n
\n
\n\n
\n
\n Technical specifications\n
\n\n
\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
EWP®80 ALLOY PUMP
Operating voltage 13.8V DC (16V Max)
Maximum current 7.5A @ 13V
Flow rate (max) 90 L/min (23.8 gal/m)
Max Head Height 5.2m (17ft)
Operating temp. -40° to 120°C
Motor Type Brushed DC Motor
Pump weight 1025 grams (2.26 lb)
Body Material Aluminium
Burst pressure 500 kPa (72.5 psi)
Inlet & Outlet 35mm (1 3/8 in) barb
Hose Fitment 32mm to 50mm (w/ sleeves)
\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
LCD DIGITAL CONTROLLER
Voltage range 12V DC to 29V DC
Display LCD size 64.6mm x 55.6mm
Maximum current 12 Amps
Targeted temps 40°C to 110°C
Fan cut-in temp. +3°C above set
Shutdown overrun 3 mins or -10°C
Sensor type Thermister in housing
Weight 100 grams (3.5 oz)
Dimensions (LxWxD) 98 x 95 x 25 mm
Memory Set & targeted temp
\n
\n
\n
\n
\n\n
\n
\n EWP® & Fan Digital Controller\n
\n\n
\n

\n The updated LCD Digital Controller manages the operation of the EWP® by varying the speed of the pump in response to engine temperature and manages your electric engine fan.\n

\n\n

Features:

\n
\n
\n   Black & White Numerical Screen\n
\n
\n   Celsius or Fahrenheit display option\n
\n
\n   Set / targeted temperature memory\n
\n
\n   Override feature to assist bleeding EWP®\n
\n
\n\n

Warning Alarms:

\n
    \n
  • Plus 10°C (14°F) set/target temperature
    • \n
  • Under temp 40°C after 5 mins
    • \n
  • Temp sensor error / Over or under voltage / EWP® error
    • \n
\n
\n
\n\n
\n
\n EWP® & Controller Installation Demonstration\n
\n
\n
\n \n
\n
\n
\n\n
\n
\n Key benefits\n
\n\n
\n

The world’s most advanced total engine cooling management system:

\n
\n
\n \n  universal fit\n
\n
\n \n  more power\n
\n
\n \n  more cooling\n
\n
\n \n  increase fuel efficiency\n
\n
\n \n  extend engine life\n
\n
\n \n  world-leading technology\n
\n
\n
\n
\n\n
\n
\n EWP® installation options\n
\n\n
\n
\n \n Installing an EWP® as an AUXILIARY PUMP\n \n
    \n
  • Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
    • \n
  • Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
    • \n
\n
\n\n
\n \n EWP® installation – disabling Mechanical water pump\n \n
    \n
  • Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose and remove the manufacturer’s thermostat.
    • \n
  • You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
    • \n
  • If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation.
    • \n
\n

\n In both these cases, the EWP® will pump past the impeller of the mechanical water pump.\n

\n
\n\n
\n \n Disengaged mechanical water pump (recommended)\n \n
    \n
  • Remove the mechanical water pump and remove the thermostat.
    • \n
  • Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.
    • \n
  • Block any bypass passages and re-install the disengaged water pump.
    • \n
\n
\n\n
\n \n Removed mechanical water pump (Ideal)\n \n
    \n
  • Remove the mechanical water pump and thermostat from the engine.
    • \n
  • Install a Davies Craig EWP® Header Adaptor or blanking plate (not supplied).
    • \n
  • Install the EWP® into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
    • \n
\n
\n\n

\n In most cases EWP® will be adequately supported by the radiator hose. For the EWP115, EWP140 and EWP150 Part DC8700 or DC8710 Mounting bracket is recommended.\n

\n
\n
\n\n
\n \n PRODUCT SELECTION GUIDE\n \n\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n EWP® PRODUCT SELECTION GUIDE\n
APPLICATIONPUMP
MODEL		PUMP ONLYPUMP KITPUMP COMBO
12V24V12V24V12V24V
Engines up to 2.0L
(Standard)		EWP®80DC8106 Flange
DC8109 Barb 		N/ADC8006 Flange
DC8009 Barb 		N/ADC8908 Flange
DC8919 Barb 		N/A
Engines up to 2.0L - 3.5L
(Standard)		EWP®115DC8125 Nylon
DC8140 Alloy 		DC8126 Nylon
DC8141 Alloy 		DC8025 Nylon
DC8040 Alloy 		N/ADC8930 Nylon
DC8950 Alloy 		N/A
Engines up to 3.5L - 5.0L
(Standard)		EWP®140DC8180 Alloy DC8181 Alloy DC8080 Alloy N/ADC8990 Alloy N/A
Engines 5.0L or greater
(Standard)

Modified Engines
Supercharged/Turbo,
Drag Racing, 4WD,
Off Road, Drifting & Speedway		EWP®150DC8160 Silver
DC8165 Black 		DC8161 Silver DC8060 Silver
DC8065 Black 		DC8061 Silver DC8970 Silver
DC8975 Black 		DC8971 Silver
Intercooler
(depending on capacity)		EWP®115DC8125 Nylon
DC8140 Alloy 		DC8126 Nylon
DC8141 Alloy 		DC8025 Nylon
DC8040 Alloy 		N/ADC8930 Nylon
DC8950 Alloy 		N/A
EWP®140DC8180 Alloy DC8181 Alloy DC8080 Alloy N/ADC8990 Alloy N/A
EWP®150DC8160 Silver
DC8165 Black 		DC8161 Silver DC8060 Silver
DC8065 Black 		DC8061 Silver DC8970 Silver
DC8975 Black 		DC8971 Silver
EWP®160N/AN/ADC8430N/AN/AN/A
EWP®180N/AN/ADC8450DC8451N/AN/A
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 1.85 kg
  • EAN / Barkod: 9311669089192
  • Maksimalna struja: 7.5A @ 13V
  • Radni napon: 13.8V DC to 16V DC
  • Maksimalni protok: 90 L/min (23.8 US gal/min) @ 0 kPa
  • Maksimalna visina potiska: 5.2m (17ft 0.72in)
  • Radna temperatura: -40° to 120°C (-40° to 248°F)
  • Tip motora: Brushed DC Motor
  • Materijal pumpe: Aluminium (Powder Coated)
  • Tlak pucanja (Burst pressure): 500 kPa (72.5 psi)
  • Ulaz i izlaz: 35mm (1 3/8 in) Push on barb
  • Priključak crijeva: 32mm to 38mm (1¼” to 1½”)

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
