Davies Craig

DC8005

Davies Craig EWP80 Kit - Remote Electric Water Pump (12V)

Davies Craig EWP80 Kit - Remote Electric Water Pump (12V)

€220,90 EUR
€220,90 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

EWP80 Kit - Remote Electric Water Pump (12V) (SKU: DC8005) originalni je pribor i dio sustava hlađenja vrhunskog australskog proizvođača Davies Craig. Izrađen po najvišim industrijskim standardima za motorsport, tuning i svakodnevnu uporabu, jamči besprijekornu kompatibilnost, jednostavnu ugradnju i dugotrajnu pouzdanost.

\n\n
\n
\n
\n EWP®80 Kit Remote Electric Water Pump (12V)\n
\n
\n ** SUPERSEDED / DISCONTINUED **\n
\n
\n Part DC8005\n
\n
\n\n
\n

\n This part has been discontinued. Please see the replacement options below:\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Discontinued Part # Direct ReplacementAlternative Replacement
8105 (Pump Only) DC8106DC8109
8005 (Kit) DC8006DC8009
8907 (Controller Combo) DC8908DC8919
\n\n

\n The EWP®80 is available for purchase in following options:\n

\n
    \n
  • Pump Only (Part DC8105)
    • \n
  • Kit (Part DC8005)
    • \n
  • Combo with Controller (Part DC8907)
    • \n
\n\n

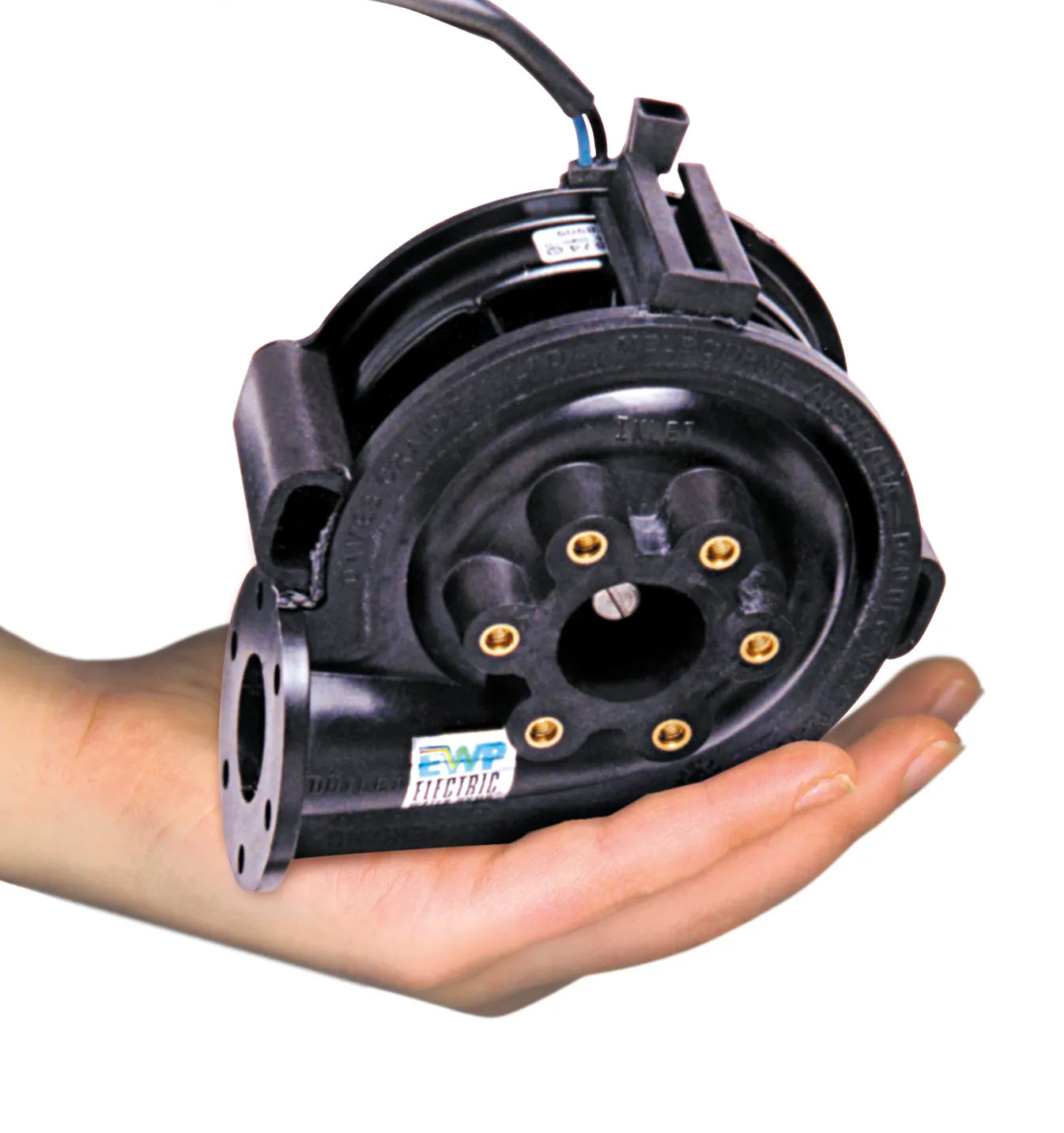

\n The revolutionary, Australian-designed EWP®80 is made from anti-corrosive, lightweight, glass-filled nylon. It removes parasitic power losses of a belt-driven mechanical water pump, providing up to 10kW (13hp) of extra power and increased torque. Used extensively in Intercooler applications.\n

\n
\n
\n\n
\n

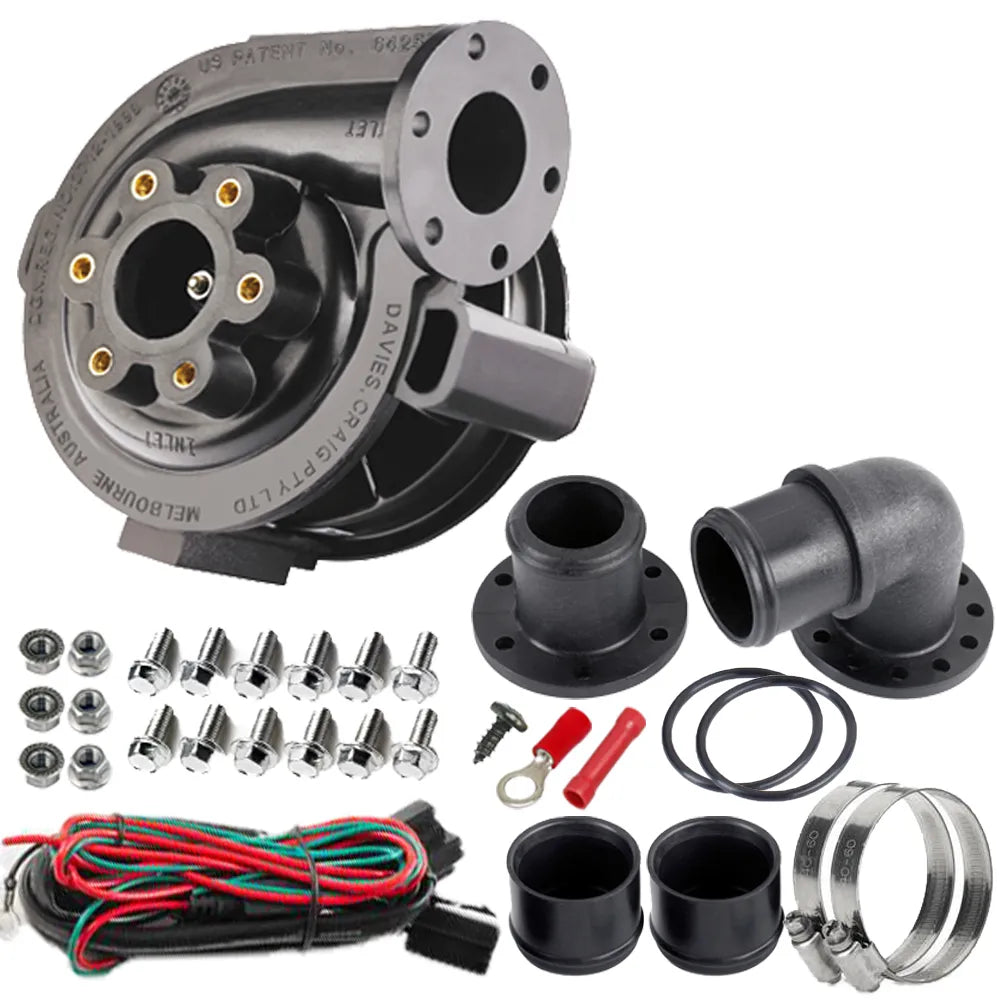

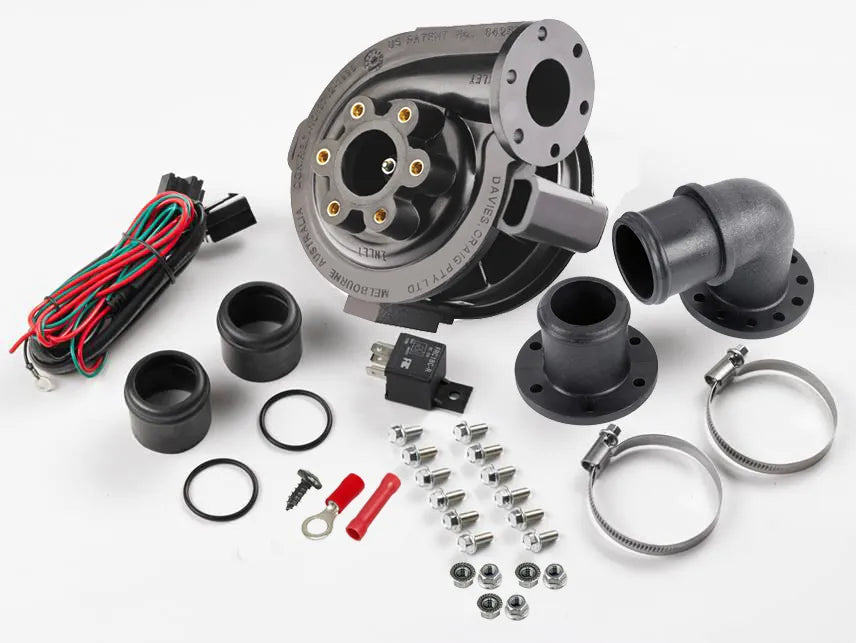

\n Kit contents\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Part descriptionUnits
EWP®80 - Nylon 12V Assembly 1
Nylon Flange Adapter: 35mm 90° Elbow 1
Nylon Flange Adapter: 35mm Straight 1
EWP ADAPTOR O-RING 2
Adaptor - Rubber Sleeve - 3mm (Increases to 38mm) 2
HOSE CLAMP 2
EWP® BASIC PUMP LOOM 1
RED - Wire Joiner / 6mm Ring Terminal 1 ea
RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection 1
SCREW - SELF TAP 8X3/8 BZ 1
5x12 Flanged Hex Set Screw Zinc Silver 6
5x16 Flanged Hex Set Screw Zinc Silver 6
M5 FLANGE NUT ZINC SILVER 6
\n
\n
\n\n
\n
\n Technical specifications\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n
Operating voltage 3V DC to 15V DC
Maximum current 7.5A @ 13V
Flow rate (max) 90 L/min (23.8 US gal/min) @ 13V DC
Operating temp. -40° to 120°C (-40° to 248°F)
Pump design Clockwise centrifugal with volute chamber
Pump weight 900 grams (2.0 lb)
Pump material Nylon 66, 30% glass-filled
Burst pressure 350 kPa (50 psi)
Seal Ceramic face seal
Fits hose size 32mm to 51mm (1⅜” to 2”)
\n
\n
\n\n
\n
\n EWP & controller installation demonstration\n
\n
\n
\n \n
\n
\n
\n\n
\n
\n EWP® installation options\n
\n
\n
\n Installing an EWP® as an AUXILIARY PUMP\n
    \n
  • Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
    • \n
  • Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
    • \n
\n
\n\n
\n EWP® installation – disabling Mechanical water pump\n
    \n
  • Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose and remove the manufacturer’s thermostat.
    • \n
  • You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
    • \n
  • If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
    • \n
\n

In both these cases, the EWP® will pump past the impeller of the mechanical water pump.

\n
\n\n
\n Disengaged mechanical water pump (recommended)\n
    \n
  • Remove the mechanical water pump and remove the thermostat.
    • \n
  • Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.
    • \n
  • Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
    • \n
  • Install the EWPÒ into the bottom radiator hose.
    • \n
\n
\n\n
\n Removed mechanical water pump (Ideal)\n
    \n
  • Remove the mechanical water pump and thermostat from the engine.
    • \n
  • Install a Davies Craig EWP® Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
    • \n
  • Install the EWP® into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
    • \n
  • Install an appropriate length belt (not supplied) to drive the accessories.
    • \n
\n
\n\n

\n In most cases EWP® will be adequately supported by the radiator hose. Where mounting is required, the EWP® must be soft mounted to protect against vibration. For the EWP®115, EWP®140 and EWP®150 Part #8700 or #8710 Mounting bracket is recommended.\n

\n
\n
\n\n
\n \n PRODUCT SELECTION GUIDE\n \n\n
\n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n EWP® PRODUCT SELECTION GUIDE\n
APPLICATIONPUMP MODELPUMP ONLYPUMP KITPUMP COMBO
12V24V12V24V12V24V
Engines up to 2.0L
(Standard)		EWP®80DC8106 Flange
DC8109 Barb 		N/ADC8006 Flange
DC8009 Barb 		N/ADC8908 Flange
DC8919 Barb 		N/A
Engines up to 2.0L - 3.5L
(Standard)		EWP®115DC8125 Nylon
DC8140 Alloy 		DC8126 Nylon
DC8141 Alloy 		DC8025 Nylon
DC8040 Alloy 		N/ADC8930 Nylon
DC8950 Alloy 		N/A
Engines up to 3.5L - 5.0L
(Standard)		EWP®140DC8180 Alloy DC8181 Alloy DC8080 Alloy N/ADC8990 Alloy N/A
Engines 5.0L or greater
(Standard)

Modified Engines
Supercharged/Turbo,
Drag Racing, 4WD,
Off Road, Drifting & Speedway		EWP®150DC8160 Silver
DC8165 Black 		DC8161 Silver DC8060 Silver
DC8065 Black 		DC8061 Silver DC8970 Silver
DC8975 Black 		DC8971 Silver
Intercooler
(depending on capacity)		EWP®115DC8125 Nylon
DC8140 Alloy 		DC8126 Nylon
DC8141 Alloy 		DC8025 Nylon
DC8040 Alloy 		N/ADC8930 Nylon
DC8950 Alloy 		N/A
EWP®140DC8180 Alloy DC8181 Alloy DC8080 Alloy N/ADC8990 Alloy N/A
EWP®150DC8160 Silver
DC8165 Black 		DC8161 Silver DC8060 Silver
DC8065 Black 		DC8061 Silver DC8970 Silver
DC8975 Black 		DC8971 Silver
EWP®160N/AN/ADC8430N/AN/AN/A
EWP®180N/AN/ADC8450DC8451N/AN/A
\n
\n
\n\n

Tehničke Specifikacije

  • Težina: 1.3 kg
  • EAN / Barkod: 9311669080052

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
