Davies Craig

DC691

Davies Craig Trans Cooler Kit 30 Plate & 10" Fan Combo 12V

Davies Craig Trans Cooler Kit 30 Plate & 10" Fan Combo 12V

€260,74 EUR
€260,74 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

Trans Cooler Kit 30 Plate & 10" Fan Combo 12V (SKU: DC691) vrhunski je električni ventilator renomiranog australskog proizvođača Davies Craig, dizajniran za maksimalnu učinkovitost hlađenja motora u najzahtjevnijim motorsport i tuning uvjetima. Iznimno lagan, aerodinamički optimiziran i izdržljiv, osigurava visoki protok zraka i pouzdan rad pod ekstremnim termičkim opterećenjima na stazi i cesti.

Transmission Oil Cooler 30 Plate & 10" Fan Combo (12V)
Part DC691

Enhance your automatic transmission cooling capabilities with the 30-plate heavy duty Hydra-Cool® DC691, coupled with a 10” Slimline Thermatic Fan. This combo pack offers greater mounting flexibility, allowing you to further control and direct air flow through the high-efficiency core.

The included 10” reverse polarity Slimline Thermatic® Fan can be attached to the core to operate in either ‘push’ or ‘pull’ mode. Designed for maximum heat dissipation, this professional-grade kit is an effective and reliable solution for keeping your transmission at its optimum operating temperature.

Core Technical Features
  • High Efficiency: 33% more efficient than a comparable tube and fin design.
  • Internal Turbulation: Features internal tubulation for highly efficient heat transfer.
  • Push-On Fittings: 3/8” push-on fittings for quick and easy installation.
  • Pressure Tested: 100% pressure tested at 150psi for quality assurance.
  • Installation Ready: Pre-drilled mounting plates for easy installation and flexible fitment.

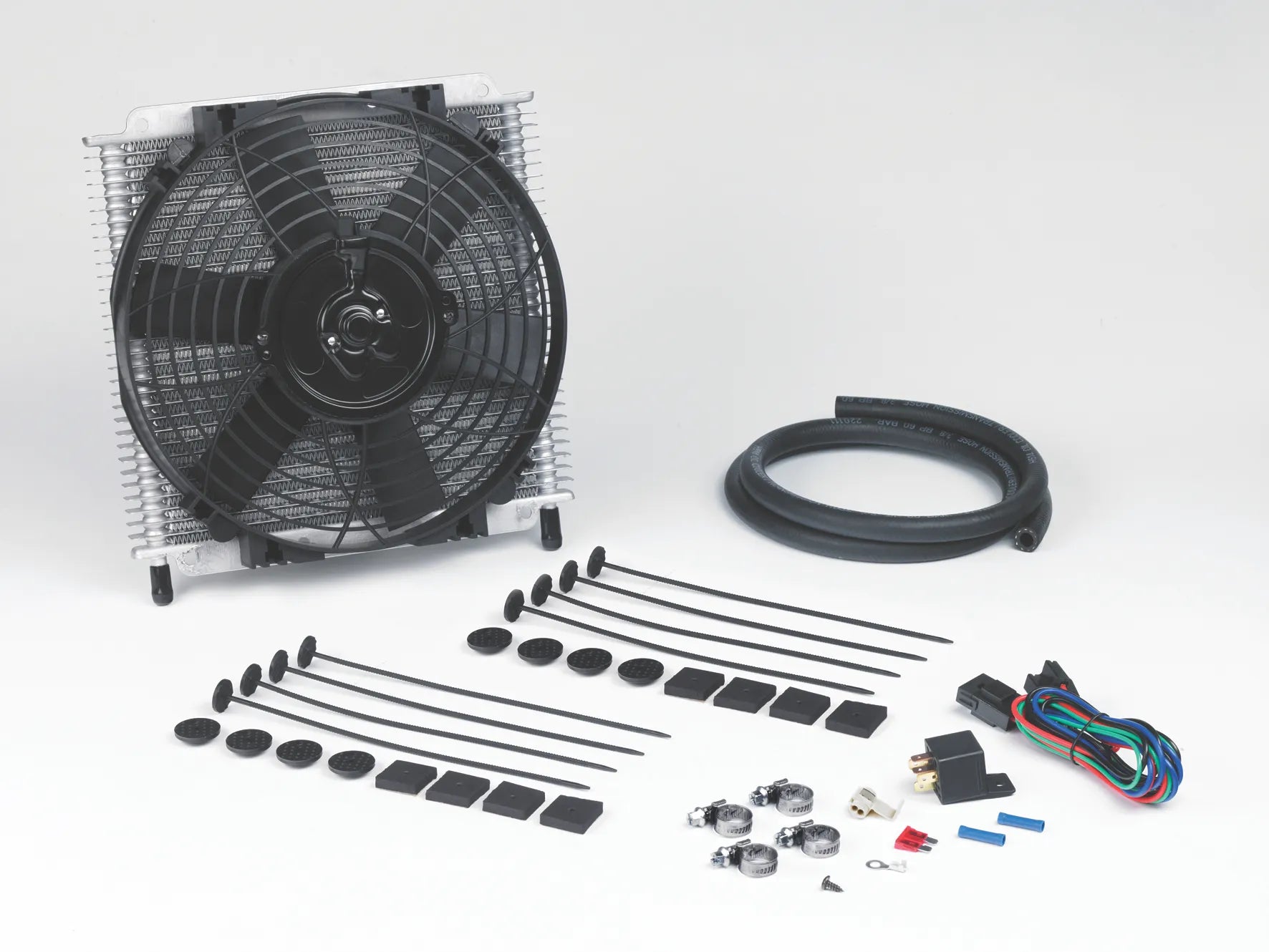

Kit contents (Part DC691)
Description Units
Hydra-Cool® 30-plate transmission oil cooler 1
10” Electric Fan (12V) 1
Wiring Harness - Fans 12 & 24V 1
Relay - 12V 40 Amp 5 Pin 1
3/8” hose (1.4 meters) 1
Hose clamps 4
Quick Fit Kits – nylon ties x4 2
Hardware bag (Joiners, Screw, Fuse) 1
Instructions 1

Tehničke Specifikacije

  • Težina: 2.5 kg
  • EAN / Barkod: 9311669069101
  • Broj ploča: 30
  • Debljina: 76.0 mm
  • Ukupna širina: 281.0 mm
  • Ukupna visina: 300.0 mm
  • Širina jezgre: 281.0 mm
  • Visina jezgre: 265.0 mm
  • Dimenzija ulaza/izlaza: 3/8” / 9.5mm
  • Promjer crijeva: 3/8” / (9.5mm) 1.4m
  • Kapacitet hlađenja (BTU/HR): 15,710
  • Kapacitet fluida (ml): 100.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
