Davies Craig Universal Engine/Trans Oil Cooler (32mm) 14-Row AN10

Universal Engine/Trans Oil Cooler (32mm) 14-Row AN10 (SKU: DC602) vrhunski je hladnjak ulja i mjenjača dizajniran za maksimalnu toplinsku disipaciju u visokoperformansnim i utrkivačkim vozilima. Smanjuje radnu temperaturu ulja u motoru ili transmisiji, sprječava termičku razgradnju maziva i osigurava dugotrajnu zaštitu mehaničkih sklopova.

Universal Oil Cooler (32mm) 14-Row AN10

Part DC602

The Universal Engine/Transmission Oil Cooler is an effective and economical way to keep your engine or transmission at its optimum operating temperature. Featuring a unique 32mm plate and fin design, it allows for extreme cooling while remaining compact enough for tight mounting spaces.

Equipped with high-efficiency internal turbulators in each tube, it ensures superior heat transfer for maximum protection. Rated at 21,000 BTU / HR, this cooler is a professional-grade solution for high-performance fluid management.

Key Specifications

• Heat Rating: 21,000 BTU / HR for heavy-duty cooling.
• Efficiency: Provides 75% more performance than comparable tube and fin designs.
• Quality Assurance: 100% pressure tested at 150psi.
• Inlet/Outlet: AN10 ORB fittings for secure and professional connections.
• Easy Installation: Features pre-drilled mounting plates and a compact profile.

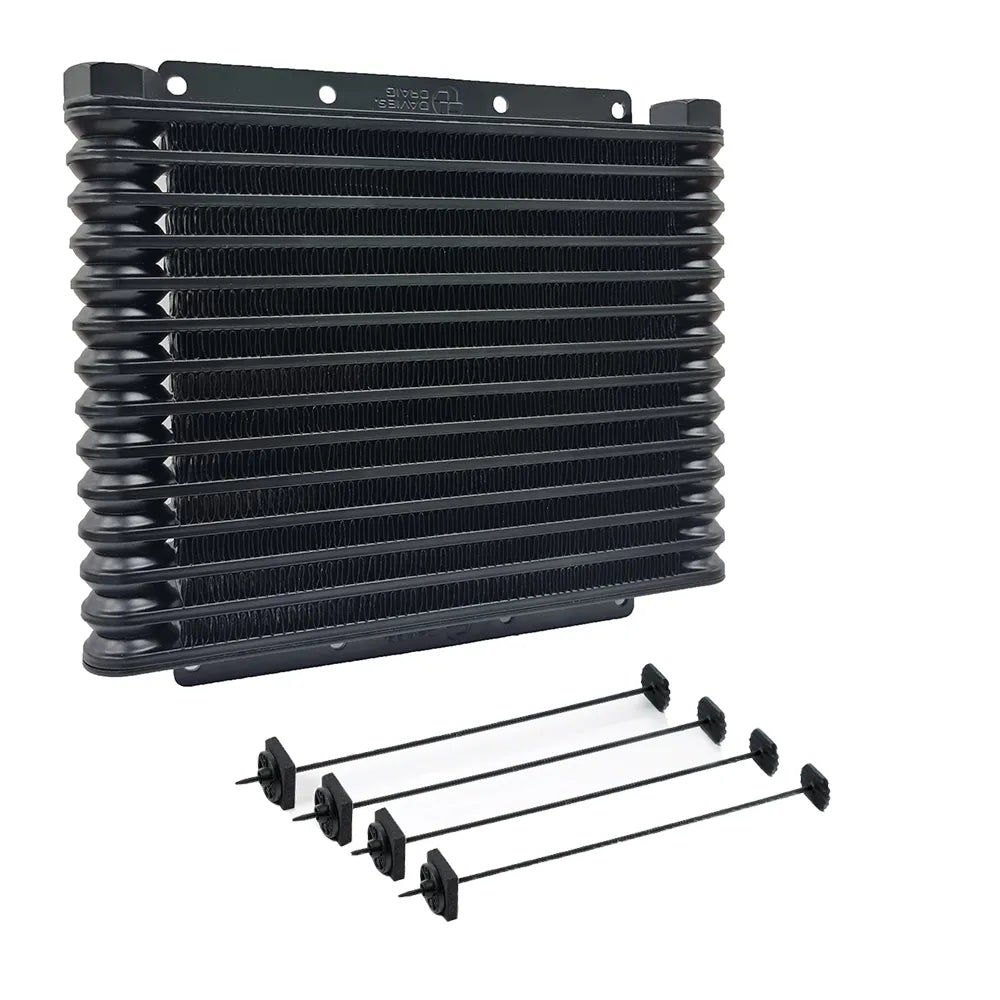

Kit contents (Part DC602)

Item / Description	Qty
32mm Universal Oil Cooler (14 Row - AN10)	1
Quick Fit Kit (Nylon ties x4)	1
Installation Instructions	1

Optional Parts (Available Separately)

Part DC1008: AN10 ORB to 3/8" Push-on Hose Barb Fitting.

Part DC1010: Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose).

Tehničke Specifikacije

• Težina: 0.94 kg
• EAN / Barkod: 9311669060207
• Broj ploča: 14
• Debljina: 32.0 mm
• Ukupna širina: 258.0 mm
• Ukupna visina: 224.5 mm
• Širina jezgre: 258.0 mm
• Visina jezgre: 185.5 mm
• Dimenzija ulaza/izlaza: AN10 ORB
• Kapacitet hlađenja (BTU/HR): 21,000
• Kapacitet fluida (ml): 500.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
