Davies Craig

DC605

Davies Craig Universal Engine/Trans Oil Cooler (50mm) 19-Row AN10

Davies Craig Universal Engine/Trans Oil Cooler (50mm) 19-Row AN10

€201,30 EUR
€201,30 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

Universal Engine/Trans Oil Cooler (50mm) 19-Row AN10 (SKU: DC605) vrhunski je hladnjak ulja i mjenjača dizajniran za maksimalnu toplinsku disipaciju u visokoperformansnim i utrkivačkim vozilima. Smanjuje radnu temperaturu ulja u motoru ili transmisiji, sprječava termičku razgradnju maziva i osigurava dugotrajnu zaštitu mehaničkih sklopova.

Universal Oil Cooler (50mm) 19-Row AN10
Part DC605

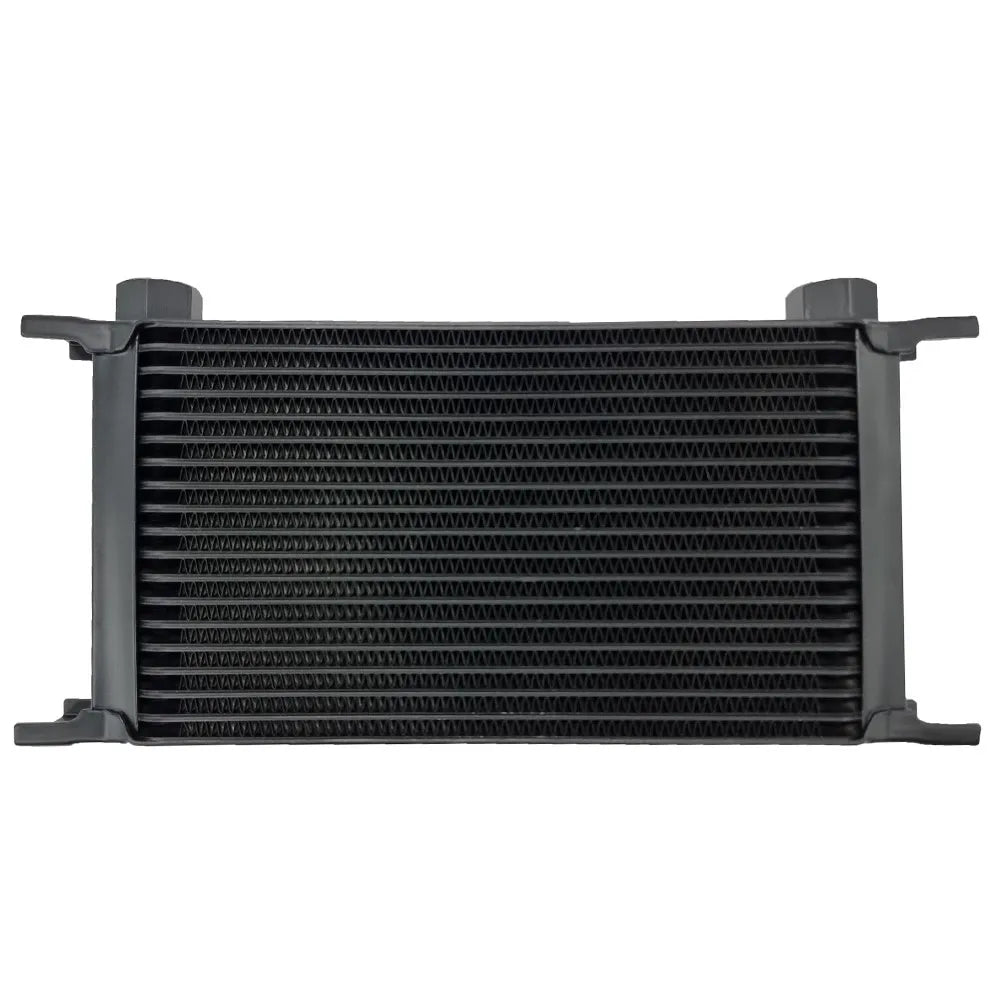

The Universal Engine/Transmission Oil Cooler DC605 is a high-performance, economical solution designed to maintain your engine or transmission at optimum operating temperatures. Its unique 50mm plate & fin design is engineered for extreme cooling efficiency in a compact form factor.

By utilizing high-efficiency internal turbulators in every tube, this cooler directs fluid for superior heat transfer. Delivering an impressive 37,000 BTU / HR, it offers 136% more performance than comparable tube and fin designs, making it ideal for high-demand applications where space is at a premium.

Key Specifications & Benefits
  • Heat Dissipation: Rated at 37,000 BTU / HR for heavy-duty thermal management.
  • High Performance: 136% more efficient than standard tube and fin oil coolers.
  • Tested Reliability: 100% pressure tested at 150psi to ensure leak-free operation.
  • Professional Fittings: Equipped with AN10 ORB inlet and outlet ports.
  • Easy Integration: Pre-drilled mounting plates allow for a quick and secure installation.
Kit contents (Part DC605)
Item / Description Qty
50mm Universal Oil Cooler (19-Row - AN10) 1
Detailed Installation Instructions 1
Optional Parts (Available Separately)
Part DC1008: AN10 ORB to 3/8" Push-on Hose Barb Fitting.
Part DC1010: Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose).

Tehničke Specifikacije

  • Težina: 1.5 kg
  • EAN / Barkod: 9311669060504
  • Broj ploča: 19
  • Debljina: 50.0 mm
  • Ukupna širina: 330.0 mm
  • Ukupna visina: 166.0 mm
  • Širina jezgre: 285.0 mm
  • Visina jezgre: 142.0 mm
  • Dimenzija ulaza/izlaza: AN10 ORB
  • Kapacitet hlađenja (BTU/HR): 37,000
  • Kapacitet fluida (ml): 440.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
