Davies Craig Universal Engine/Trans Oil Cooler (50mm) 30-Row AN10 & 8"Fan Combo (12V)

Universal Engine/Trans Oil Cooler (50mm) 30-Row AN10 & 8"Fan Combo (12V) (SKU: DC608) vrhunski je električni ventilator renomiranog australskog proizvođača Davies Craig, dizajniran za maksimalnu učinkovitost hlađenja motora u najzahtjevnijim motorsport i tuning uvjetima. Iznimno lagan, aerodinamički optimiziran i izdržljiv, osigurava visoki protok zraka i pouzdan rad pod ekstremnim termičkim opterećenjima na stazi i cesti.

Universal Oil Cooler (50mm) 30-Row & 8" Fan Combo

Part DC608

Maximum efficiency for heavy-duty cooling. This combo pairs a massive 50mm deep, 30-row Universal Oil Cooler with a high-performance 8” Thermatic^® Electric Fan. It is the ideal solution for larger SUVs and high-performance engine/transmission combinations that require superior heat dissipation.

The unique plate and fin design provides an incredible 200+% more performance than comparable tube and fin coolers. With 50,000 BTU/HR capacity and a reverse polarity fan that works in 'push' or 'pull' mode, the DC608 ensures your vehicle stays within optimum operating temperatures even under extreme stress.

Key Performance Stats

• Heat Transfer: Rated at 50,000 BTU / HR.
• Extreme Cooling: 200+% more efficient than standard tube & fin designs.
• Quality Tested: 100% pressure tested at 150psi for total reliability.
• Fittings: Features professional AN10 ORB inlet/outlet ports.
• Installation: Pre-drilled mounting plates and compact design for flexible fitment.

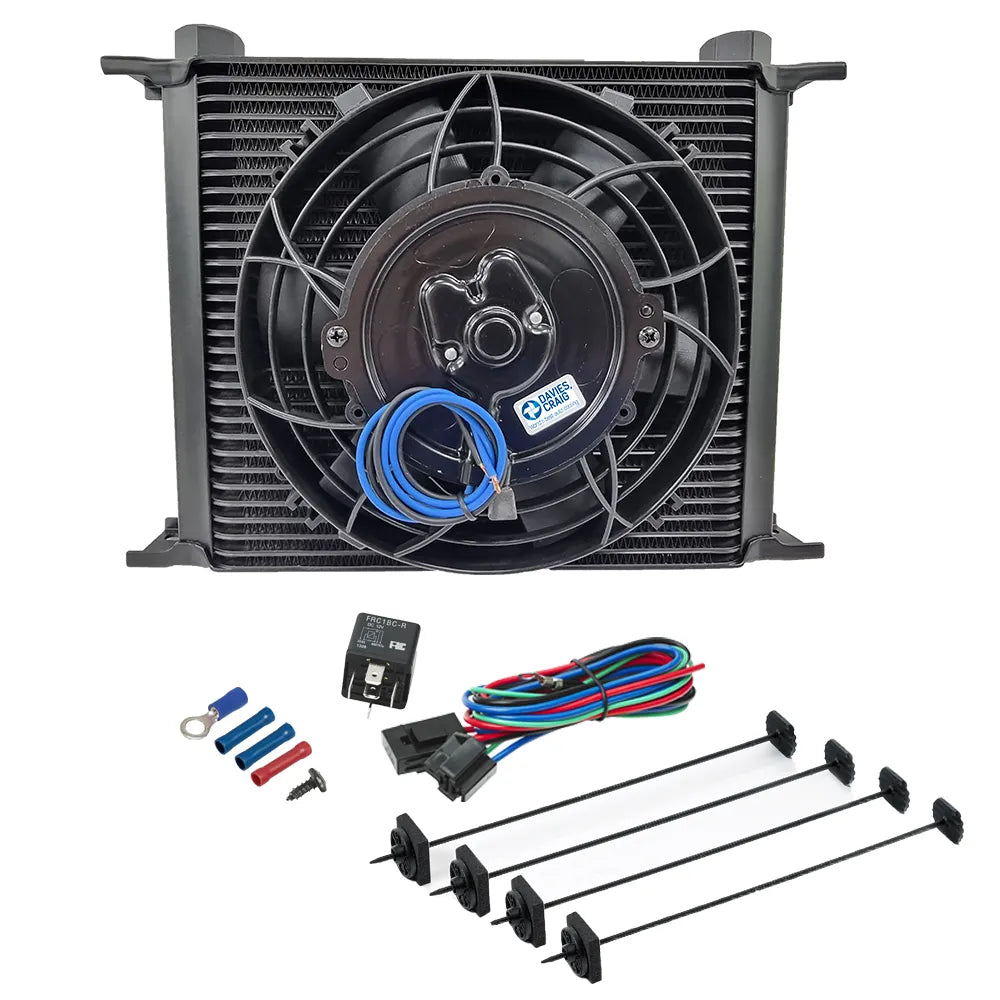

Kit contents (Part DC608)

Item / Description	Qty
Universal Oil Cooler (30-Row / 50mm / AN10)	1
8” Thermatic® Electric Fan (12V)	1
Fan Wiring Harness & 12V Relay Kit	1
Quick Fit Kit (Nylon ties x4)	1
Hardware Bag (Joiners, Screws & Terminals)	1
Installation Instructions	1

Optional Parts (Available Separately)

Part DC1008: AN10 ORB to 3/8" Push-on Hose Barb Fitting. High-quality adapter for standard hose connections.

Part DC1010: Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose). Complete professional fitting solution.

Tehničke Specifikacije

• Težina: 3.3 kg
• EAN / Barkod: 9311669060801
• Broj ploča: 30
• Debljina: 106.0 mm
• Ukupna širina: 330.0 mm
• Ukupna visina: 249.0 mm
• Širina jezgre: 285.0 mm
• Visina jezgre: 226.0 mm
• Dimenzija ulaza/izlaza: AN10 ORB
• Kapacitet hlađenja (BTU/HR): 50,000
• Kapacitet fluida (ml): 690.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
