Davies Craig

DC610

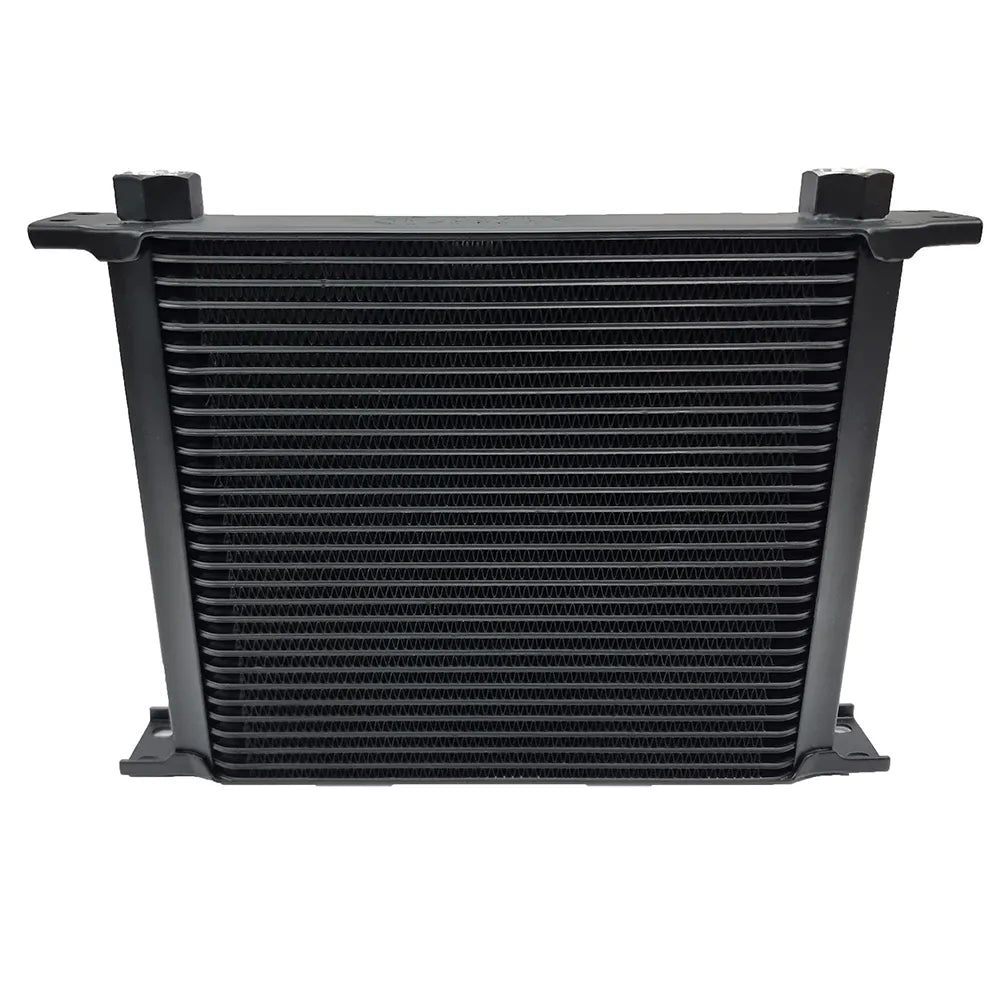

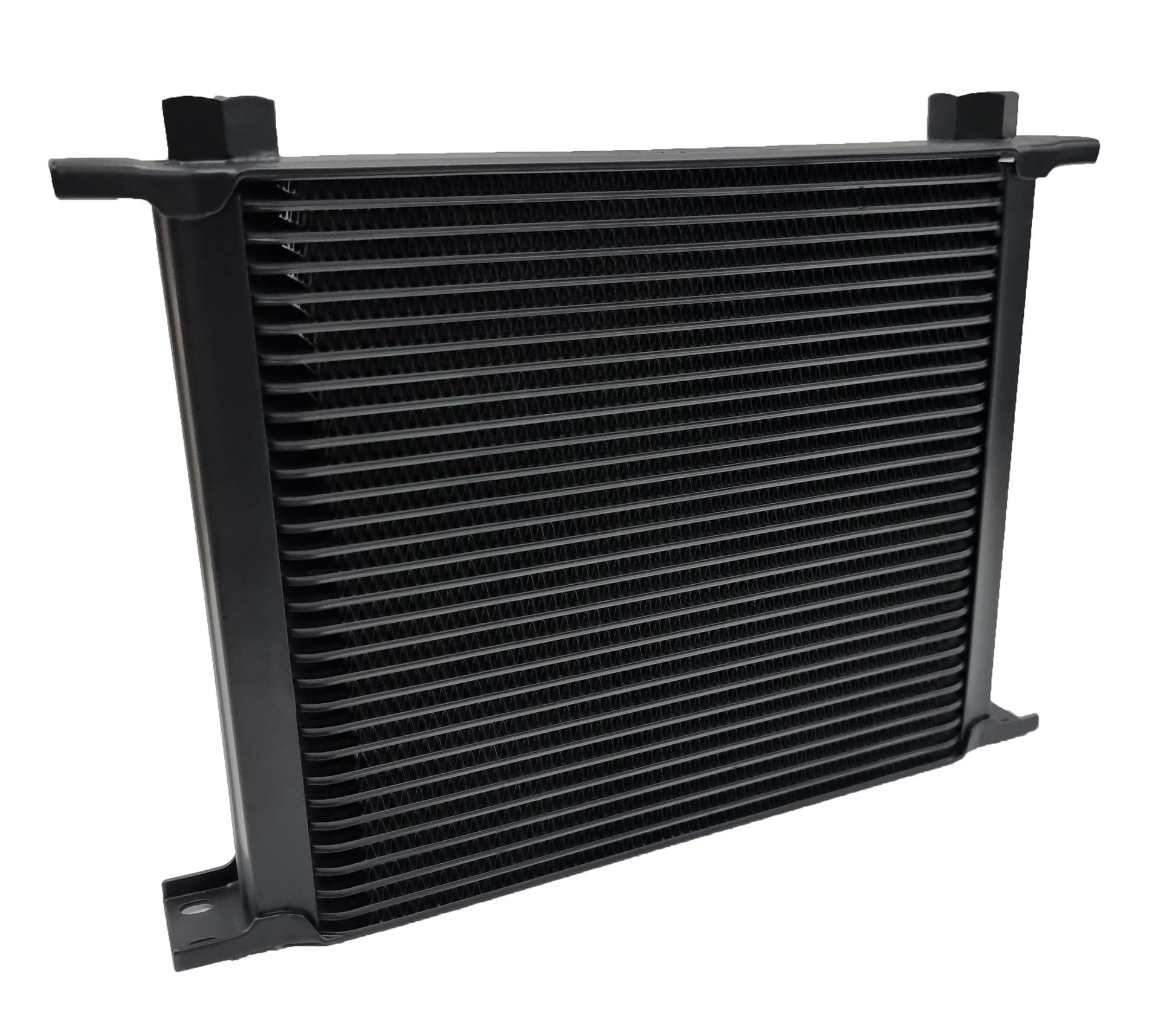

Davies Craig Universal Engine/Trans Oil Cooler (50mm) 30-Row AN10

Davies Craig Universal Engine/Trans Oil Cooler (50mm) 30-Row AN10

€296,18 EUR
€296,18 EUR
EXTRA POPUST!!! Rasprodano
Porezi su uključeni.

Universal Engine/Trans Oil Cooler (50mm) 30-Row AN10 (SKU: DC610) vrhunski je hladnjak ulja i mjenjača dizajniran za maksimalnu toplinsku disipaciju u visokoperformansnim i utrkivačkim vozilima. Smanjuje radnu temperaturu ulja u motoru ili transmisiji, sprječava termičku razgradnju maziva i osigurava dugotrajnu zaštitu mehaničkih sklopova.

Universal Oil Cooler (50mm) 30-Row AN10
Part DC610

Reach maximum efficiency with the heavy-duty DC610 Universal Oil Cooler. Controlling engine and transmission heat is critical for performance; this 30-row, 50mm deep cooler provides the superior heat dissipation required to extend component life and prevent costly repairs.

The unique plate and fin design offers over 200% more performance than standard tube and fin designs. Rated at 50,000 BTU / HR and 100% pressure tested at 150psi, this model is the perfect choice for larger SUVs and high-performance engine/transmission combinations where mounting space is limited.

Technical Highlights
  • Extreme Performance: 50,000 BTU / HR heat transfer rate.
  • Efficient Heat Transfer: Internal tubulation and 200+% more efficiency than standard coolers.
  • Durable Build: 100% pressure tested at 150psi for guaranteed quality.

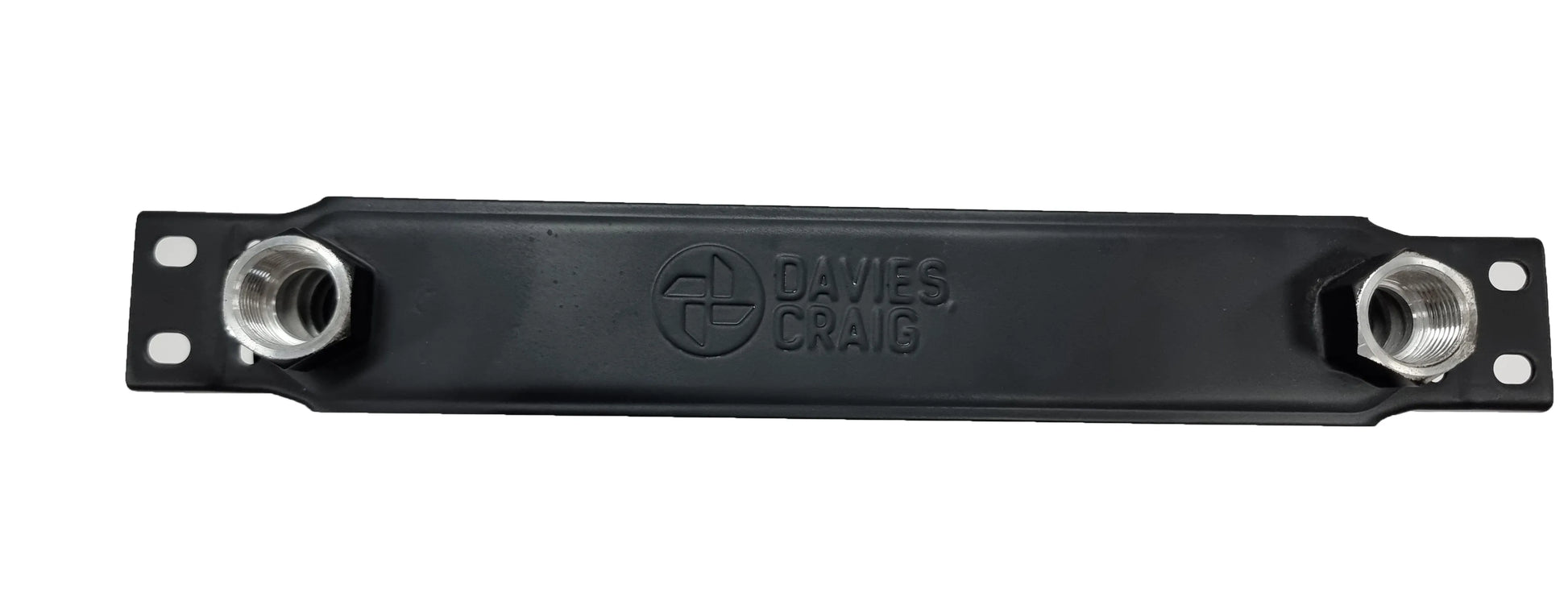

  • Standard Fittings: Inlet and outlet ports feature AN10 ORB fittings.
  • Flexible Mount: Pre-drilled mounting plates for easy and secure installation.
Kit contents (Part DC610)
Item / Description Qty
50mm Universal Oil Cooler (30-Row - AN10) 1
Installation Instructions 1
Optional Parts (Available Separately)
Part DC1008: AN10 ORB to 3/8" Push-on Hose Barb Fitting.
Part DC1010: Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose).

Tehničke Specifikacije

  • Težina: 2.0 kg
  • EAN / Barkod: 9311669061006
  • Broj ploča: 30
  • Debljina: 50.0 mm
  • Ukupna širina: 330.0 mm
  • Ukupna visina: 249.0 mm
  • Širina jezgre: 285.0 mm
  • Visina jezgre: 226.0 mm
  • Dimenzija ulaza/izlaza: AN10 ORB
  • Kapacitet hlađenja (BTU/HR): 50,000
  • Kapacitet fluida (ml): 690.0

Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
