Davies Craig
Inventarna šifra proizvoda (SKU):DC0550

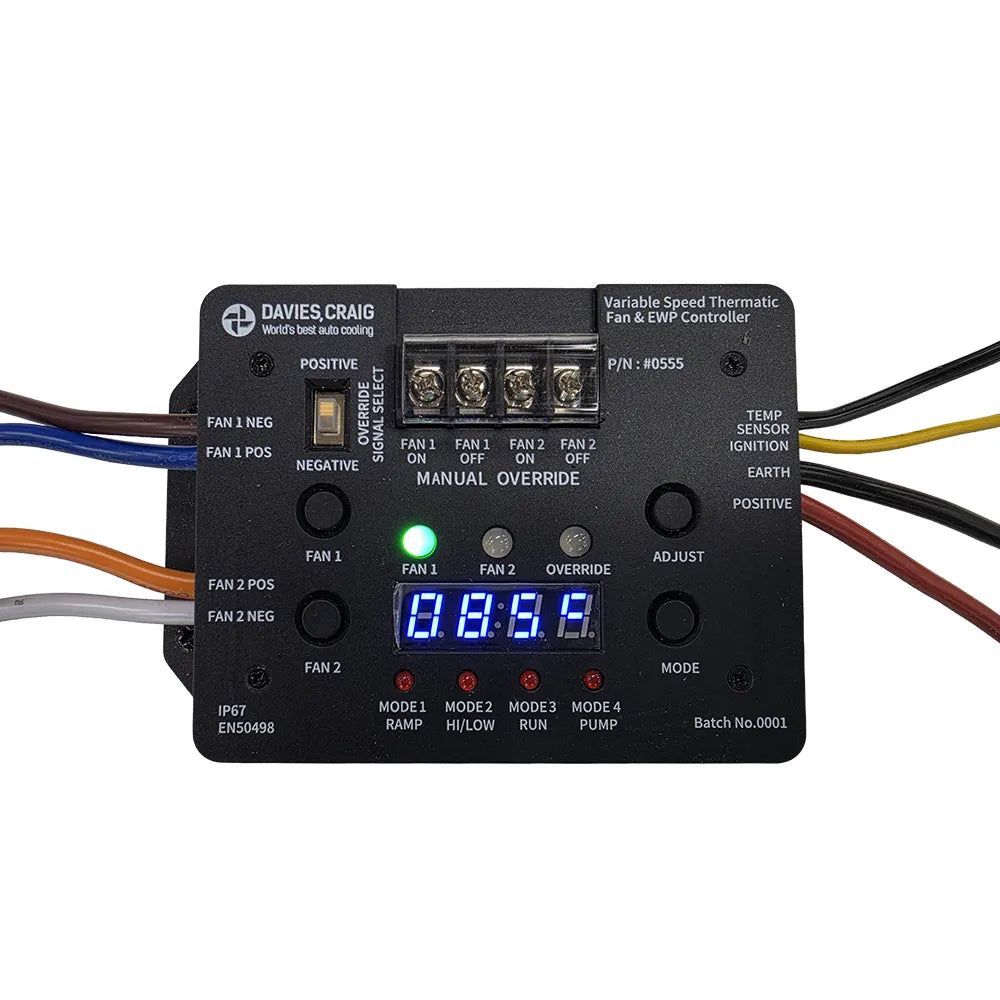

Davies Craig Variable Speed Controller Brushless Thermatic® Fan & EWP +1/4"" NPT Sensor
Davies Craig Variable Speed Controller Brushless Thermatic® Fan & EWP +1/4"" NPT Sensor
Učitavanje dostupnosti preuzimanje nije moguće
Variable Speed Controller Brushless Thermatic® Fan & EWP +1/4"" NPT Sensor (SKU: DC0550) osigurava precizno i automatsko upravljanje radom sustava hlađenja vašeg vozila. Kao nezaobilazan dio naprednog motorsport hlađenja, Davies Craig regulator održava stabilnu radnu temperaturu rashladne tekućine, produžuje vijek trajanja motora te jamči optimalan rad električnih ventilatora i crpki u svim uvjetima vožnje.
*Note: Only for Brushless Motors, for Brushed Motors, see Part #0555
High-performance Controller designed to optimise thermal management in automotive, industrial, marine and EV applications. It provides intelligent, precise control of either Brushless dual Thermatic® Electric Fans or Electric Water Pumps (EWP®), ensuring maximum, efficiency, system protection and reliable operation in the most demanding environments.
Key Features
- Flexible operating modes: Four distinct control strategies to suit differing cooling system applications. 12 & 24 Volt Applicable.
- Independent dual outputs: Two fully isolated PWM signal channels allow for separate control of any combination of Brushless fan/s and/or Brushless EWP®. Multiple Brushless fans or pumps can be wired to a single channel, provided the combined PWM signal current does not exceed .5A. Unique setpoints, and operating modes can be applied to each output independently.
- Shutdown control: After ignition-off, the Controller will keep fans running for user-defined time or until defined shutdown time is reached to prevent heat-soak.
- Manual overrides: Dedicated ON/OFF control per channel bypasses automatic control if required. Configurable polarity accommodates different wiring and switch arrangements.
- Safety & failsafe options: In the event of Sensor fault, outputs default to full speed to protect the system.
- Advanced Configuration options: Temperature difference, defined starting speed, shutdown time & temperature, temperature offset, factory reset, and adjustable PWM frequency.
- Rugged, reliable design: IP67 waterproof rating ensures durability in harsh conditions.

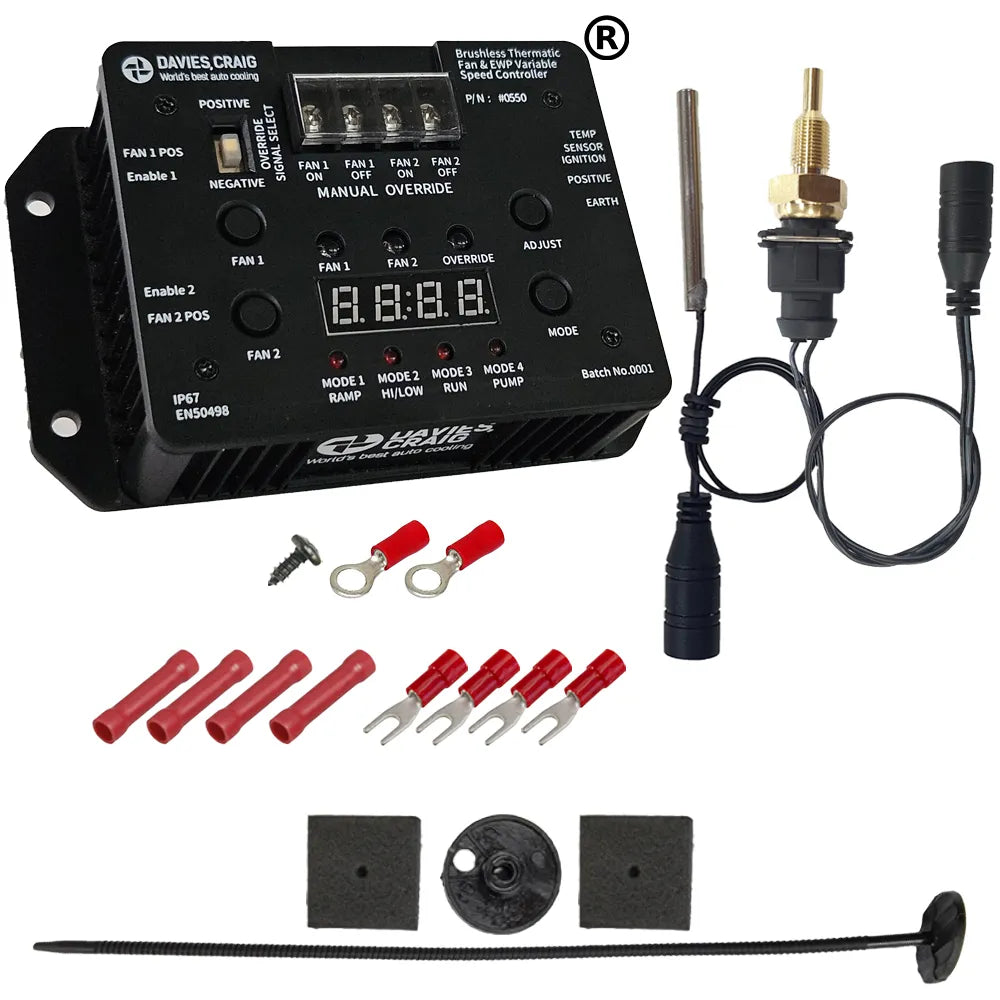

Kit Overview & Sensors
This kit includes two sensors, providing flexible installation options for coolant temperature monitoring.
Detects ambient core temperature (in fins) or direct coolant fitment via Adaptor Kit (#0409 or #0408).
Direct fluid installation (thermostat housing, engine block, or radiator tank). Adapters available for hoses.
Upgrade (#0462) allows you to use existing spare sensor ports in the cooling system.
| DESCRIPTION | UNITS |
|---|---|
| Brushless variable speed fan controller | 1 |
| Mounting Kit - suit Thermal Sensor Probe | 1 |
| Thermal Sensor Probe | 1 |
| Sensor Thermal - coolant temp - ¼" NPT thread | 1 |
| RED - 6mm Ring Terminal | 2 |
| RED - Wire Joiner | 4 |
| RED - 3.5mm Fork Crimp Terminal | 4 |
| Instructions | 1 |
Tehničke Specifikacije
- Težina: 1.0 kg
- EAN / Barkod: 9311669005505
- Radni napon: 12 & 24 Volt
- Primjena ventilatora: All Brushless DCPL Fans, EWPs
- Brzina: Variable Speed
- Raspon podešavanja temperature: 5°C To 110°C (41°F To 230°F)
Službena dokumentacija i podaci: Proizvod je pokriven jamstvom i tehničkom podrškom proizvođača. Za dodatne tehničke detalje, dijagrame ugradnje i specifikacije posjetite službenu stranicu proizvođača Davies Craig Australia.
