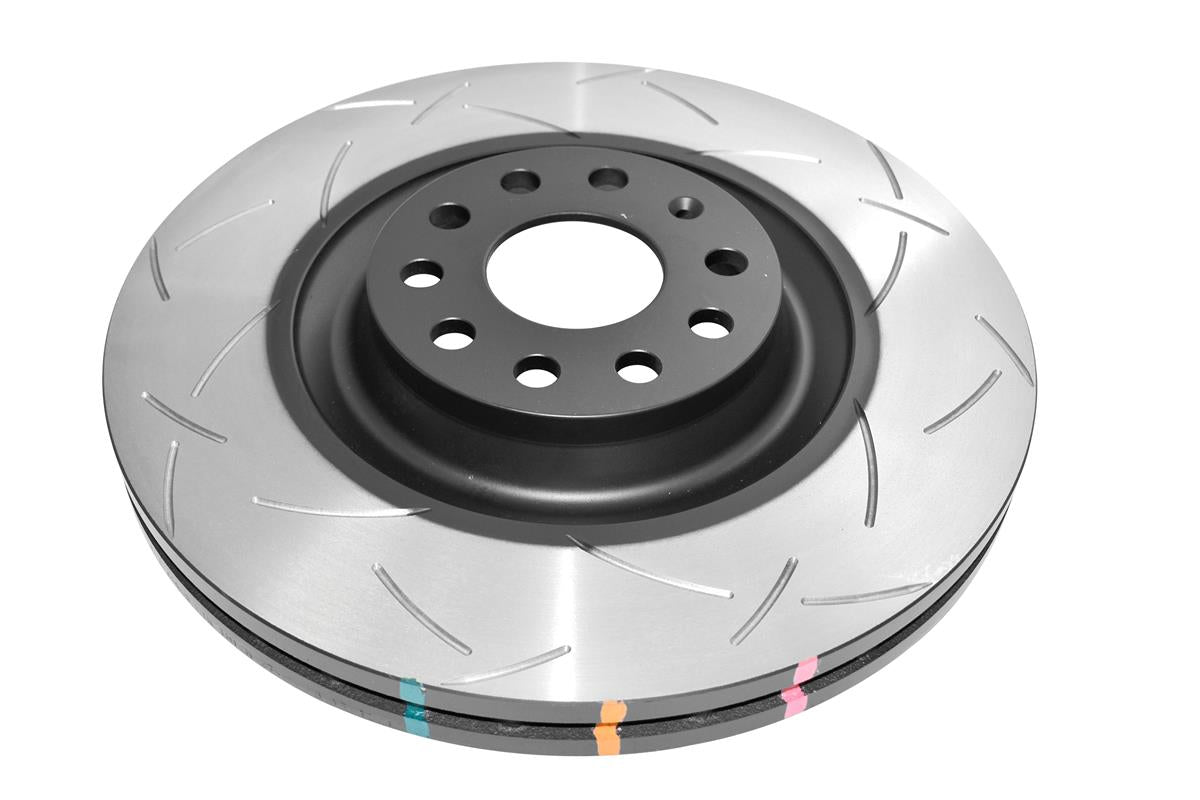

DBA 4000 series - T3

Vrhunski DBA (Disc Brakes Australia) kočioni sustavi i komponente vrhunskih performansi. Dizajnirani za iznimnu zaustavnu moć, otpornost na toplinski stres i maksimalnu pouzdanost u ekstremnim uvjetima ceste i staze.

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Primjena / Vozila: Front - AUDI/A3 quattro 8P/3.2 (2003-2009) , Brake Caliper: ATE, Front - AUDI/S3 8P/2.0 Turbo 265BHP PR-1LK (2006-2012) , Brake Caliper: ATE, Front - AUDI/S3 8P/2.0 Turbo 265BHP PR-1ZK (2006-2012) Brake Pads: DB2402, Brake Caliper: ATE, Front - SEAT/Leon (1P)/2.0 Turbo Copa 286BHP (2008-2013) , Brake Caliper: Brembo, Front - SEAT/Leon (1P)/2.0 Turbo Cupra 240BHP (2006-2013) , Brake Caliper: ATE, Front - SEAT/Leon (1P)/2.0 Turbo Cupra 310BHP (2008-2009) , Brake Caliper: Brembo, Front - SEAT/Leon (1P)/2.0 Turbo Cupra R 265BHP (2009-2013) , Brake Caliper: ATE, Front - SKODA/Superb (3T)/1.8 Turbo 150BHP 4WD (2008-2015) , Brake Caliper: ATE, Front - SKODA/Superb (3T)/1.8 Turbo 160BHP 4WD (2008-2015) , Brake Caliper: ATE, Front - SKODA/Superb (3T)/2.0 TD 170BHP 4WD (2008-2015) , Brake Caliper: ATE, Front - SKODA/Superb (3T)/2.0 Turbo 200BHP (2010-2015) , Brake Caliper: ATE, Front - SKODA/Superb (3T)/3.6 4WD 260BHP (2008-2015) , Brake Caliper: ATE, Front - VOLKSWAGEN/Eos/3.2 250BHP (2006-2009) , Brake Caliper: ATE, Front - VOLKSWAGEN/Eos/3.6 260BHP (2009-2011) , Brake Caliper: ATE, Front - VOLKSWAGEN/Golf (Mk5)/3.2 R32 250BHP (2005-2009) , Brake Caliper: ATE, Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1LK (2009-2013) , Brake Caliper: ATE, Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1LM (2009-2013) , Brake Caliper: ATE, Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1ZK (2009-2013) Brake Pads: DB2402, Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B6)/2.0 Turbo 200BHP (2005-2010) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B6)/3.2 247BHP From chassis code 3C8 (2005-2010) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B6)/3.2 247BHP To chassis code 3C7 (2005-2010) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B6)/3.6 From chassis code 3C8 (2007-2010) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B6)/3.6 To chassis code 3C7 (2007-2010) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B7)/2.0 Turbo 210BHP (2011-2014) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B7)/3.6 From chassis code 3C8 (2010-2012) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat (B7)/3.6 To chassis code 3C7 (2010-2012) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat CC/2.0 Turbo (2008-2012) , Brake Caliper: ATE, Front - VOLKSWAGEN/Passat CC/3.6 4Motion (2008-2012) , Brake Caliper: ATE, Front - VOLKSWAGEN/Scirocco/2.0 Turbo R 265BHP (2009-2014) , Brake Caliper: ATE, Front - VOLKSWAGEN/Scirocco/2.0 Turbo R 276BHP (2014-2017) , Brake Caliper: ATE
