Setrab

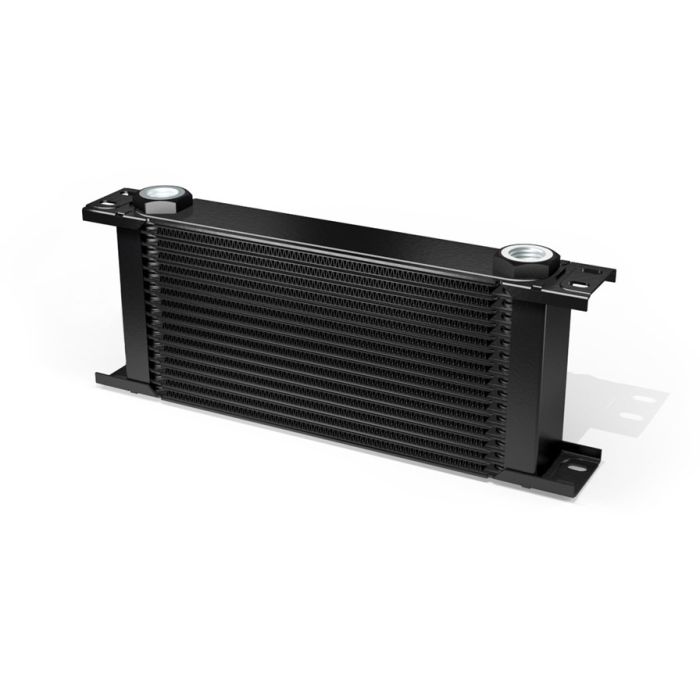

SETRAB - PROLINE - STD-619 - Hladnjak Ulja
SETRAB - PROLINE - STD-619 - Hladnjak Ulja
Redovna cijena
€127,34 EUR
Redovna cijena
€148,00 EUR
Prodajna cijena
€127,34 EUR
Jedinična cijena
/
po
Porezi su uključeni.
Učitavanje dostupnosti preuzimanje nije moguće
Proline ST3-619
VISINA: 146MM
ŠIRINA: 330MM
DUBINA: 50MM
PRIHVAT: M22
| Working pressure | 0-10 bar dynamical |
| Pressure pulsation endurance | Min. 2x105 pulsations @ 0-10 bar, 2 Hz, 60 °C oil temp |
| Max pressure | 12 bar (1x104 pulsations) |
| Burst pressure | 37 bar |
| Pressure test | Min 10 bar |
| Leak test | 10 bar @ 3cc/min |
| Working temp | -40 to 150 °C (Temperatures above 120 °C pressure pulsations has to be evaluated) |
| Corrosion endurance | 20 days according to SWAAT G 85-94 A3 (painted cooler) |
| Inner cleanliness | ISO 4406 16/14 (alternative available upon request) |
| General dimensional tolerances | ISO 2768-v |
| Material | Aluminium |
| Max connection tightening torque | 40 Nm (alternative available upon request) |
| Other | Allowed Media: Oil; water containing min. 40% glycol or corrosion inhibitors. |
