TITAN - BREZON VIJAK I MATICA - KIT ZA ISPUH

Stud technology tested in Aerospace and Motorsport

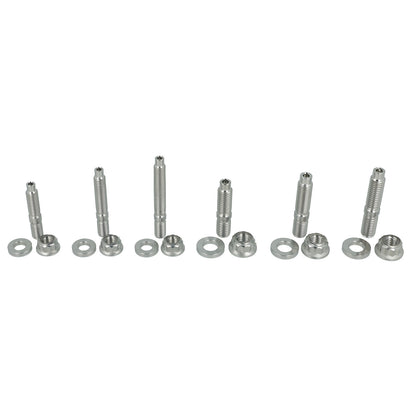

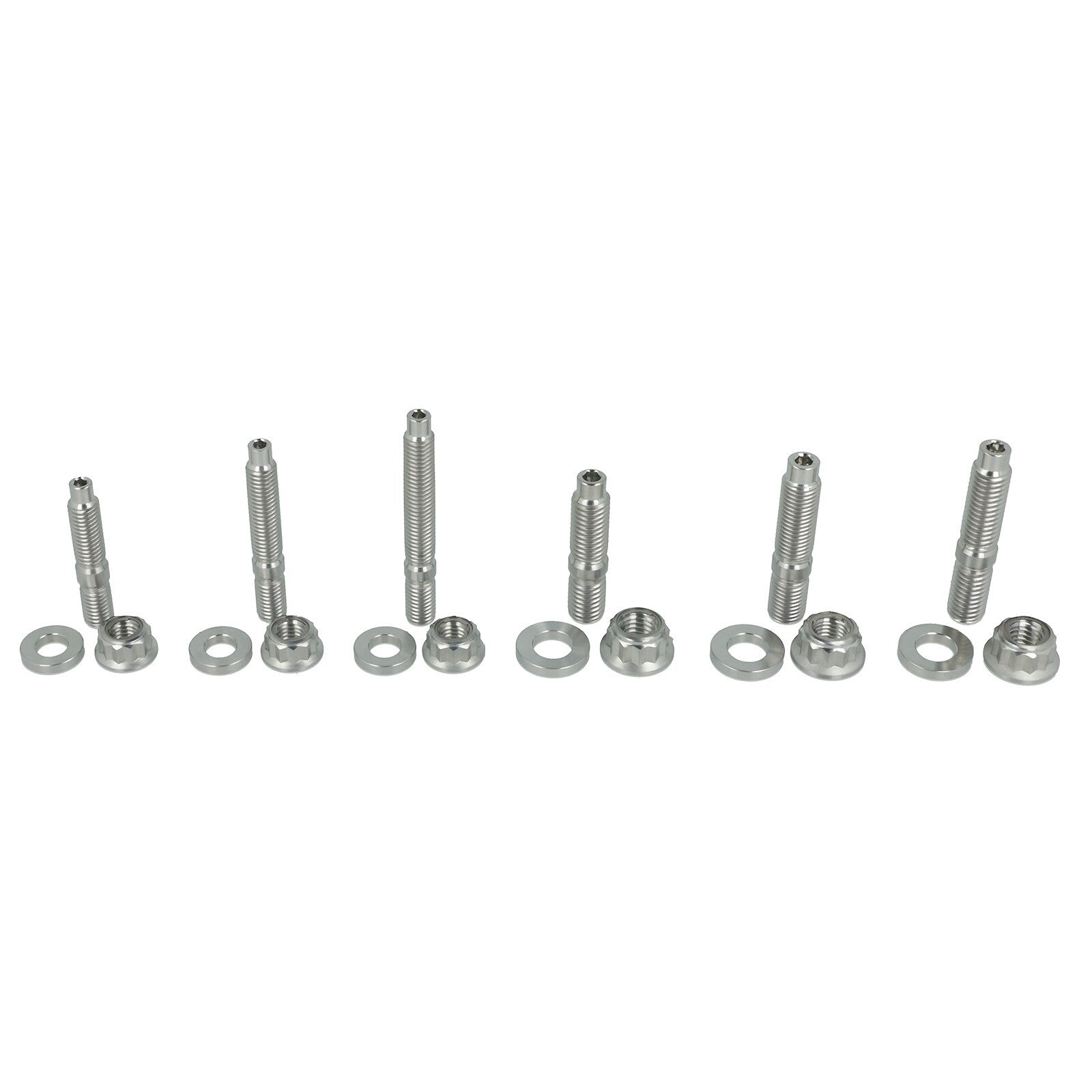

Titanium fasteners for all flange types (turbo manifold, turbocharger, downpipe, exhaust)

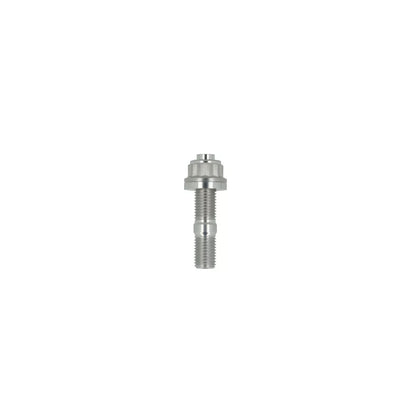

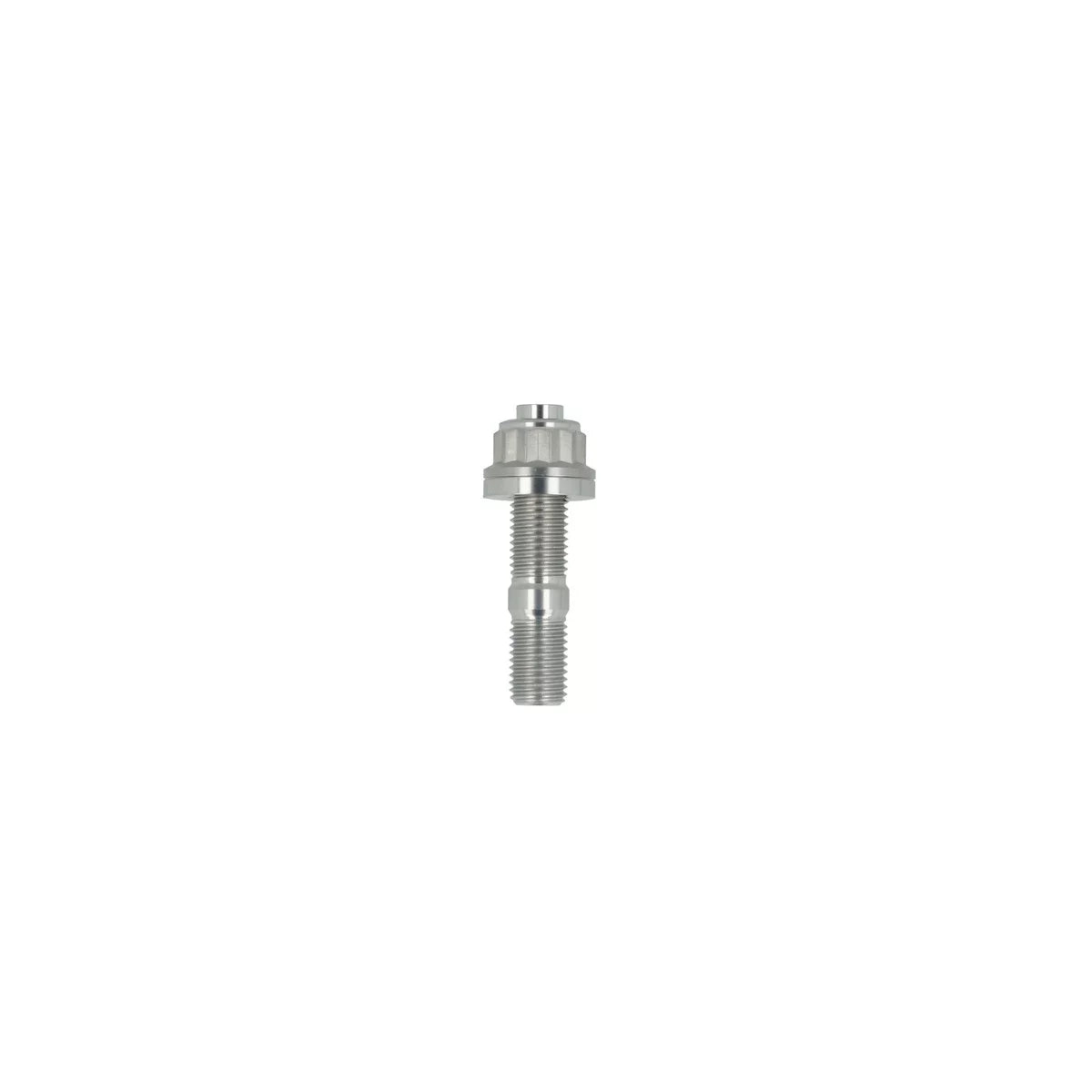

Stud

• Thread: M8, M10
• Thread Pitch: 1.25, 1.5

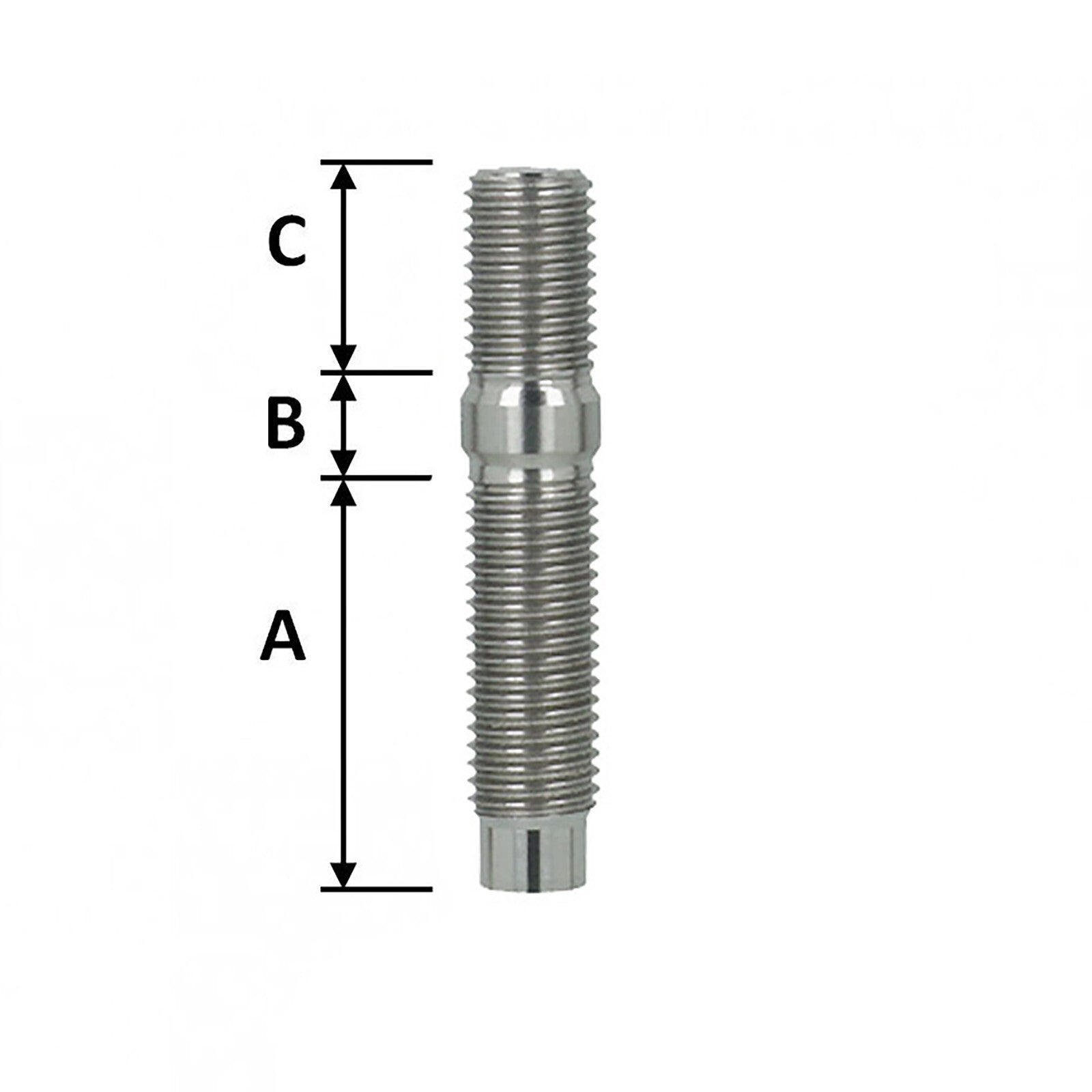

• Total Length: 45mm, 50mm, 54mm, 65mm
• Length C: 13mm

• Length B: 7mm

• Length A: =Ukupna duljina - C - B


Nut:

• Thread: M8, M10
• Thread Pitch: 1.25, 1.5
• Height: 10mm

Washer

• Thickness: 3mm

Advantages of Titanium vs Steel and Stainless Steel:

• Grade 5 6AI-4V Titanium
• 45% lighter than comparable steel studs
• Stronger than steel studs or bolts
• Maximum strength and temperature resistance
• No rust, corrosion-resistant
• Durable
• And more...

Compared to other competitors, BOOST Products' exhaust/turbo titanium stud kits are made from Grade 5 6AI-4V titanium, providing maximum strength and temperature resistance. Additionally, all titanium studs feature a hex key screw head for quick and easy installation. Naturally, all kits include a titanium 12-point nut (self-locking) and a titanium washer.
This allows you to properly clamp the exhaust manifold to the cylinder head or your turbocharger to the turbo manifold without experiencing sealing problems, stud/nut failure, or unsightly and troublesome rust and corrosion.
Titanium studs also find many applications in the automotive and marine sectors, such as:

• Audi/Seat/Skoda/VW 1.8T, 2.0 TFSI, TSI, 2.5 TFSI, 4.0 Bi-Turbo
• Chevrolet/GM LSX
• Honda/Acura DOHC B-Series (B16, B18, B20), D15, D16, F20B, F20C, F22C, H22, H23, B/D/K-Series
• Mitsubishi EVO/4G63
• Mazda Rx7
• Mercedes AMG C63, E63, S63, GLE63, GLS63
• Nissan Skyline R32, R33, R34, RB20, RB25, RB26, RB30
• Toyota Supra 2JZ
• Volvo B21f, B21ft, B23f, B23ft, B230f, B30ft
• And more...
